Tension Sensor

XJCSENSensor specializes in manufacturing and customizing industrial-grade all-size force sensors and instrumentation, including multi-axis force sensors, load cells, torque sensors, tension, and pressure sensors, etc. We deliver tailored force control system solutions based on strain gauge, capacitive, MEMS, and piezoelectric technologies to meet diverse application requirements.

Tension Sensor

It can be used to measure and control the tension of materials during processing, such as paper, label, tape, battery electrode, high performance film and other narrow materials. The sensor's detection signals are affected by the position of the coiled material on the roller.

unfold

Cantilever Tension Sensor

Flange Tension Sensor

Pillow Block Bearing Tension Sensor

Shaft Head Tension Sensor

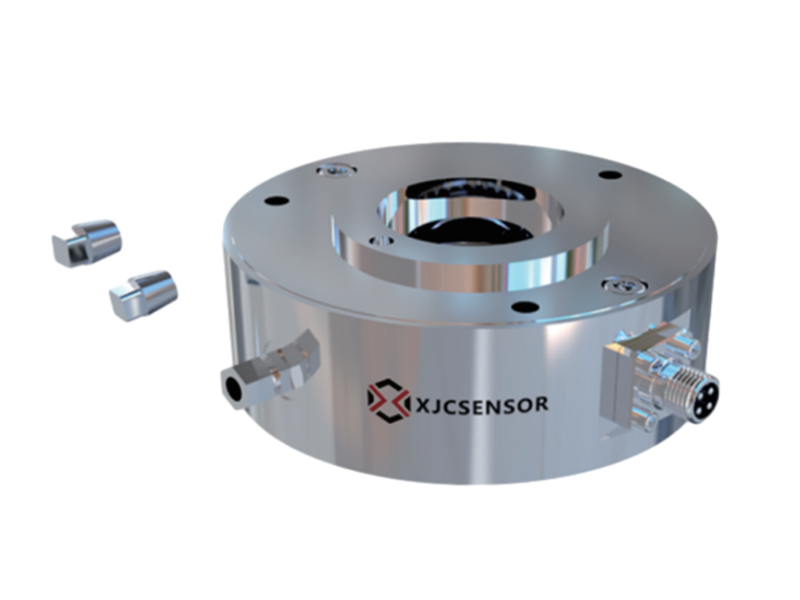

Through-hole Tension Sensor

Cantilever Tension Sensor

learn more

Flange Tension Sensor

learn more

Pillow Block Bearing Tension Sensor

learn more

Shaft Head Tension Sensor

learn more

Through-hole Tension Sensor

learn more

Tension Sensor

Easy installation, Small size, small installation space.
Precise, the detection signal is not affected by the coils' position on the roller.
Accurate measurement can be performed under low tension.
Built-in 10 times anti-overload protection structure.
Small temperature drift with good linearity and repeatability errors.

Find Sensor :

显示 15 个产品


	X-ZL13
	X-ZL12
	X-ZL11
	X-ZL07
	X-ZL08
	X-ZL14
	X-ZL18
	X-ZL17
	X-ZL16
	X-ZL15
	X-ZL10
	X-ZL09
	X-ZL06
	X-ZL05-B

Model	Description	Installation Type	Capacity	Diameter Roll	SPEC SHEETS

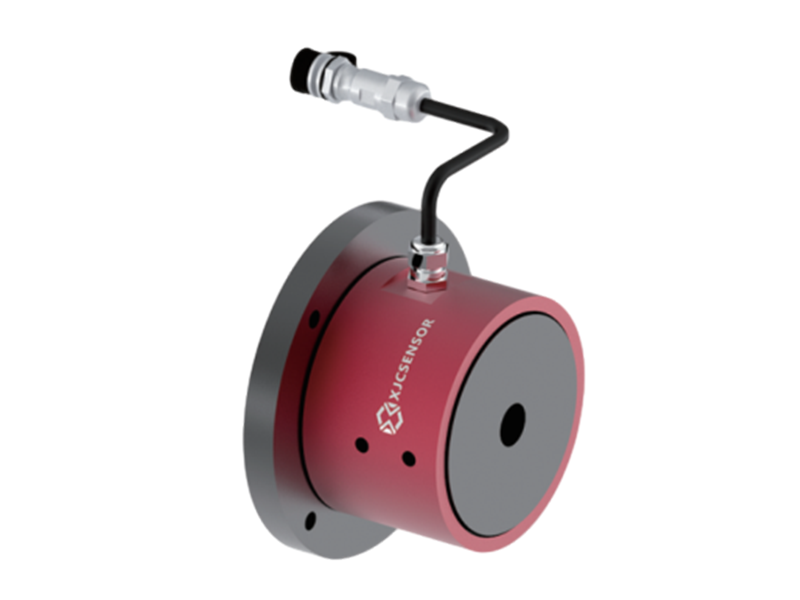

X-ZL13	Flange Tension Sensor	Flange	5kg, 10kg, 15kg, 25kg, 50kg, 75kg, 100kg, 150kg, 300kg, 500kg, 1000kg, 2000kg, 3000kg	Multiple	view more
X-ZL12	Flange Tension Sensor	Flange	2.5kg, 5kg, 10kg, 15kg, 25kg, 50kg	Multiple	view more
X-ZL11	Flange Tension Sensor	Flange	5kg, 15kg, 25kg, 50kg, 100kg	Multiple	view more

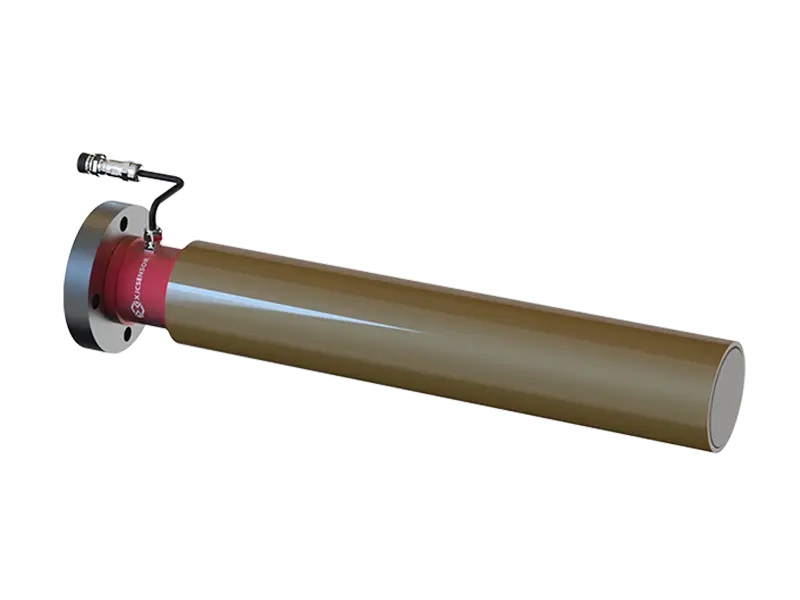

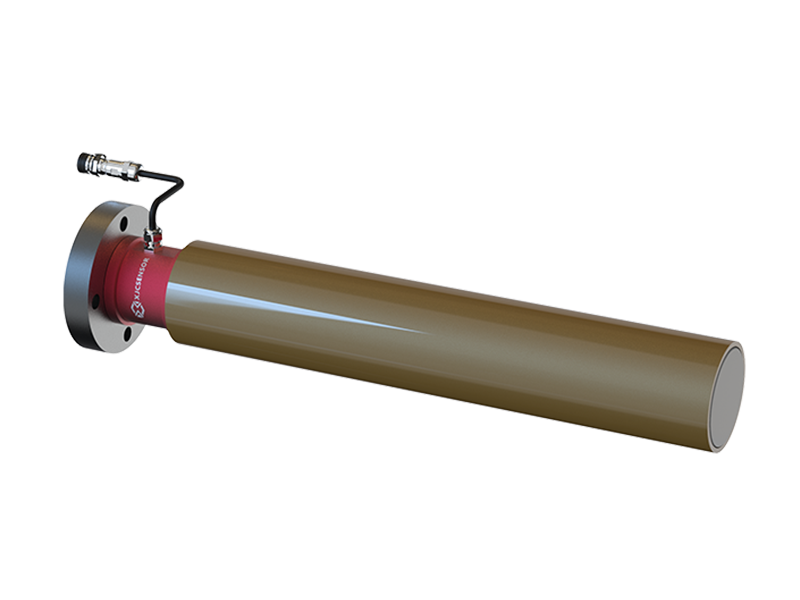

X-ZL07	Cantilever Tension Sensor	Cantilever	Multiple	Multiple	view more

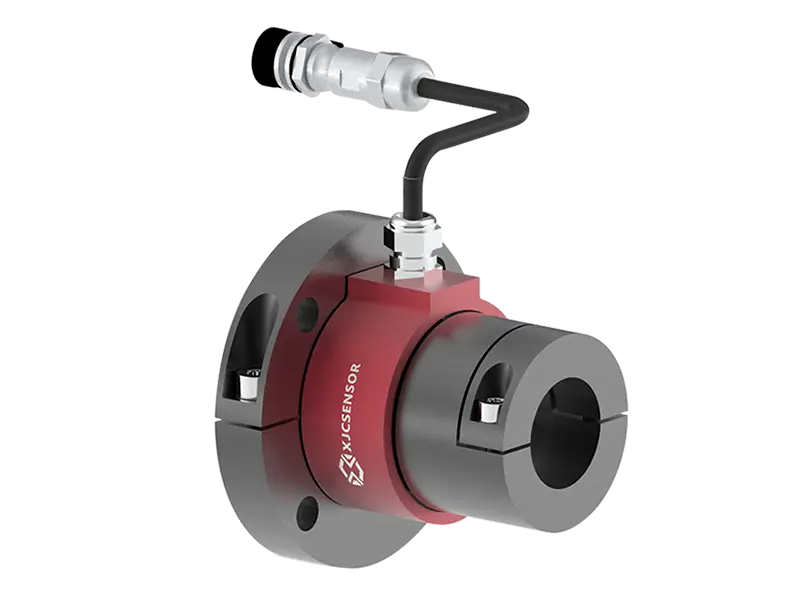

X-ZL08	Cantilever Tension Sensor	Cantilever	Multiple	Multiple	view more

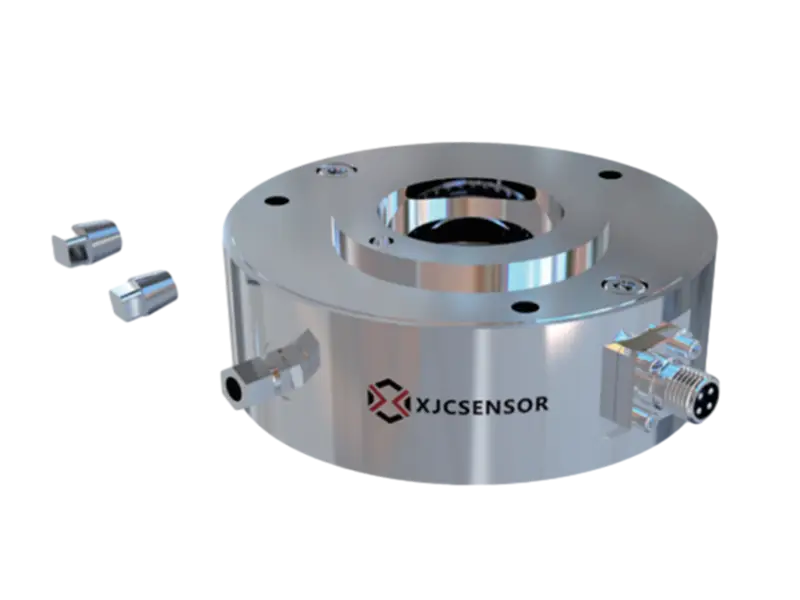

X-ZL14	Through-hole Tension Sensor	Through-hole	5kg, 10kg, 15kg, 25kg, 50kg	Multiple	view more

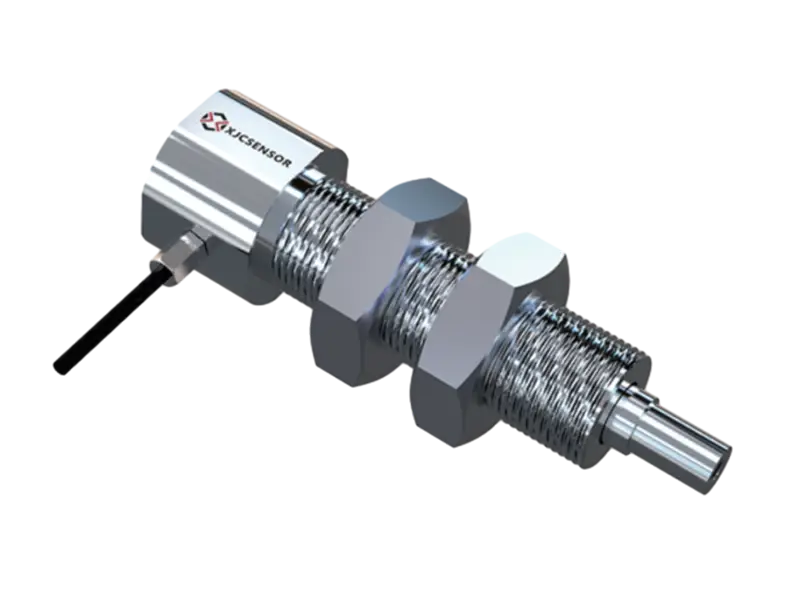

X-ZL18	Shaft Head Tension Sensor	Shaft Head	10kg, 20kg, 30kg, 40kg, 50kg, 100kg, 300kg,500kg, 1000kg	Multiple	view more

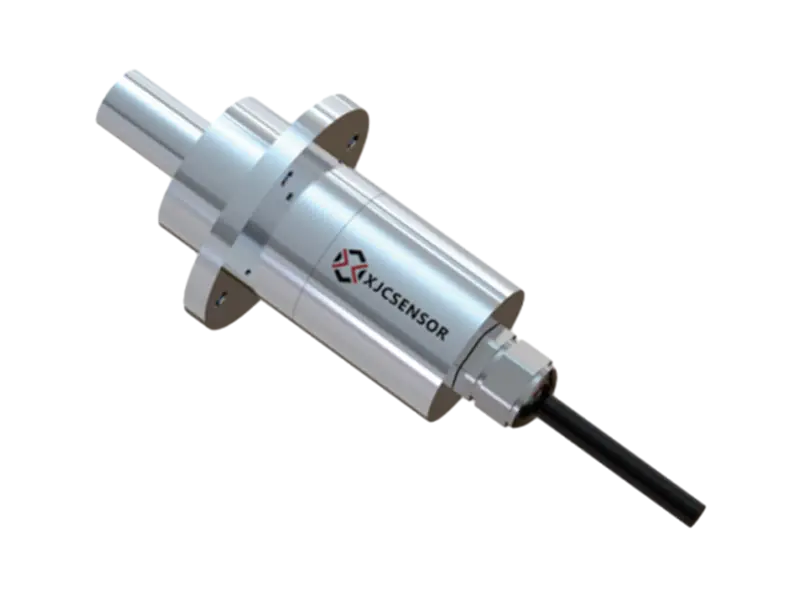

X-ZL17	Shaft Head Tension Sensor	Shaft Head	10kg, 20kg, 50kg, 100kg, 300kg	Multiple	view more
X-ZL16	Pillow Block Bearing Tension Sensor	Pillow Block Bearing	5kg, 15kg, 25kg, 50kg, 100kg	Multiple	view more
X-ZL15	Pillow Block Bearing Tension Sensor	Pillow Block Bearing	15kg, 25kg, 50kg, 100kg, 200kg	Multiple	view more
X-ZL10	Flange Tension Sensor	Flange	5kg, 15kg, 25kg, 50kg, 75kg, 100kg	Multiple	view more
X-ZL09	Flange Tension Sensor	Flange	5kg, 15kg, 25kg, 50kg, 100kg	Multiple	view more
X-ZL06	Cantilever Tension Sensor	Cantilever	Multiple	Multiple	view more

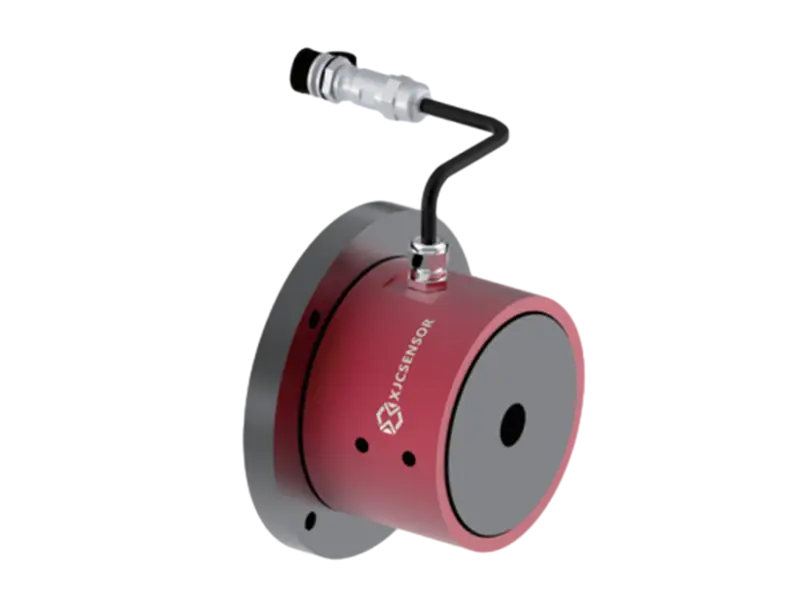

X-ZL05-B	Cantilever Tension Sensor	Cantilever	Multiple	Multiple	view more
