Flange Tension Sensor X-ZL13
Feature
- Compact structure, easy to install.
- Can be installed directly inside or outside the machine frame.
- Minor temperature drift, good non-linearity and repeatability.
- Built-in new mechanical 10 times anti-overload protection.
- Self-aligning bearing which can compensate installation error.
- Standard M12*1 plug.
- Materials: Aluminium alloy, Alloy steel.
contact us
Technical Parameter
Dimension & Capacity
Plug Position
Application
File Download
Related Blogs
Technical Parameter
| Nonlinearity | ≤0.3% F.S. | Rated output | 1.5±0.003mV/V |
| Repeatability | ≤0.15%F.S. | Zero balance | ±2% F.S. |
| Operating temp range | -20~80°℃ | Compensated temp range | -10~40℃ |
| Temp effect on zero | ≤0.02%F.S/C | Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | 5~10VDC | Ultimate load limit | 300%F.S. |
| Cable size | Ø5x5m | Protection class | IP63 |
| Cable connection | Ex+:Red; Ex-: Black; Sig+:Green; Sig-: White | ||

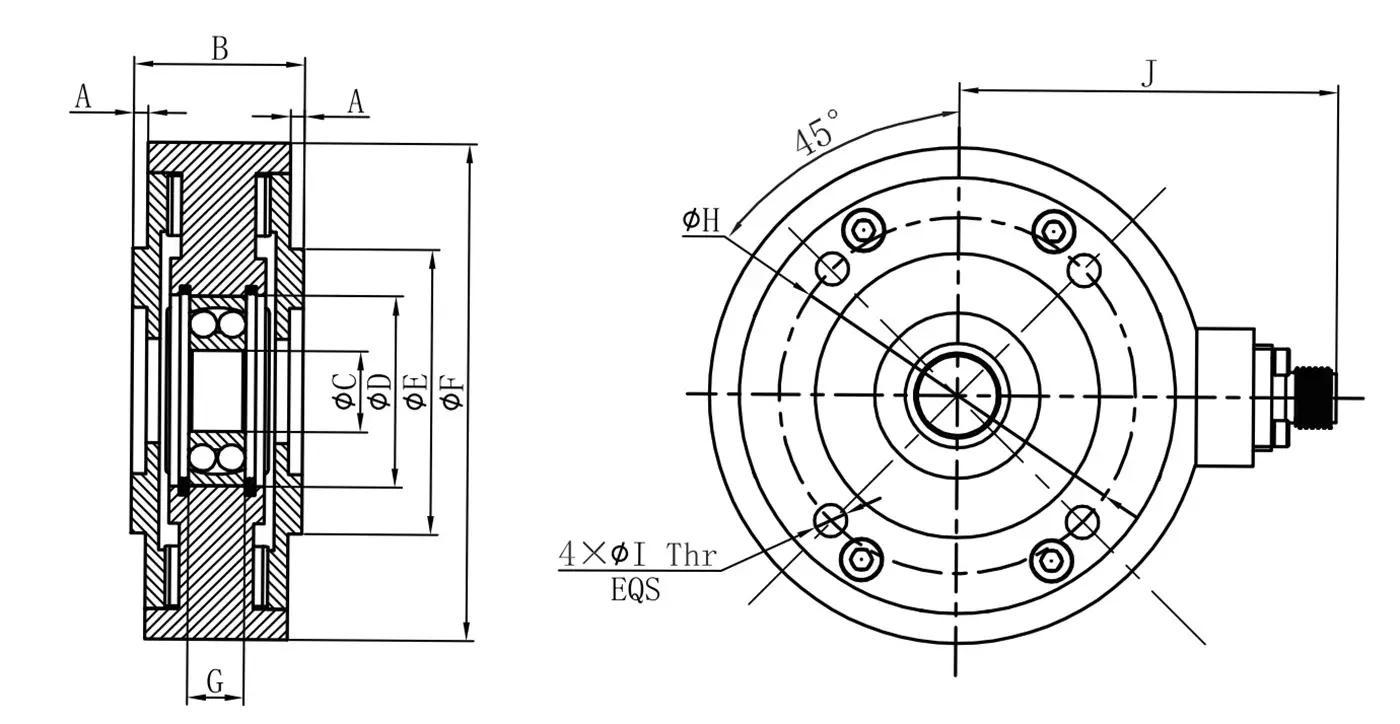

Dimension & Capacity
| Model no | Capacity(kg) | Dimension | |||||||||
| A | B | C | D | E | F | G | H | 1 | J | ||
| X-ZL13-5-17-6 | 5 | 3 | 36 | 17 | 40 | 60 | 105 | 16 | 75 | 6.5 | 80 |
| X-ZL13-10-17-6 | 10 | 3 | 36 | 17 | 40 | 60 | 105 | 16 | 75 | 6.5 | 80 |
| X-ZL13-15-17-6 | 15 | 3 | 36 | 17 | 40 | 60 | 105 | 16 | 75 | 6.5 | 80 |
| X-ZL13-25-17-6 | 25 | 3 | 36 | 17 | 40 | 60 | 105 | 16 | 75 | 6.5 | 80 |
| X-ZL13-50-17-6 | 50 | 3 | 36 | 17 | 40 | 60 | 105 | 16 | 75 | 6.5 | 80 |
| X-ZL13-75-25-6 | 75 | 4 | 47.5 | 25 | 52 | 70 | 125 | 18 | 95 | 6.5 | 90 |
| X-ZL13-100-25-6 | 100 | 4 | 47.5 | 25 | 52 | 70 | 125 | 18 | 95 | 6.5 | 90 |
| X-ZL13-150-35-6 | 150 | 4 | 65 | 35 | 72 | 100 | 175 | 23 | 135 | 8.5 | 115 |
| X-ZL13-300-35-6 | 300 | 4 | 65 | 35 | 72 | 100 | 175 | 23 | 135 | 8.5 | 115 |
| X-ZL13-500-65-6 | 500 | 4 | 80 | 65 | 120 | 160 | 265 | 31 | 220 | 10.5 | 160 |
| X-ZL13-1000-65-6 | 1000 | 4 | 80 | 65 | 120 | 160 | 265 | 31 | 220 | 10.5 | 160 |
| X-ZL13-2000-65-6 | 2000 | 4 | 80 | 65 | 120 | 160 | 265 | 31 | 220 | 10.5 | 160 |
| X-ZL13-3000-65-6 | 3000 | 4 | 80 | 65 | 120 | 160 | 265 | 31 | 220 | 10.5 | 160 |
Note: The rated load is only applicable to the value of a single sensor, and if installed on both sides, it is twice the above.

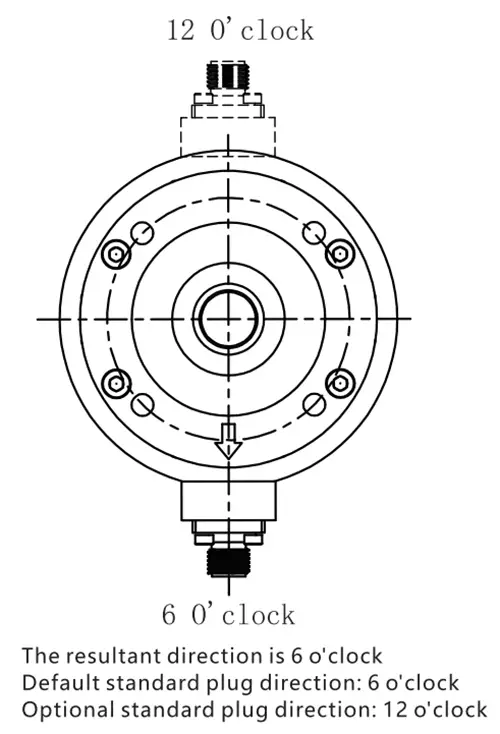

Plug Position
Application
It can be used to measure and control the tension of materials during processing, such as paper, label tape, battery electrode, high performance film and other narrow materials. The sensor's detection signal is not affected by the position of the coiled material on the roller.
Note: The rated load is only applicable to the value of a single sensor, and if installed on both sides, it is twice the above.
