Flange Tension Sensor X-ZL12
Feature
- Built-in self-aligning bearing (two ends are not in the samesurface) which can compensate for bearing expansion and misalignment.
- Built-in new mechanical 10 times anti-overload protection.
- Minor temperature drift, god non-linearity and repeatability.
- Small size, little space required for installation.
contact us
Technical Parameter
Dimension & Capacity
Plug Position
Application
File Download
Related Blogs
Technical Parameter

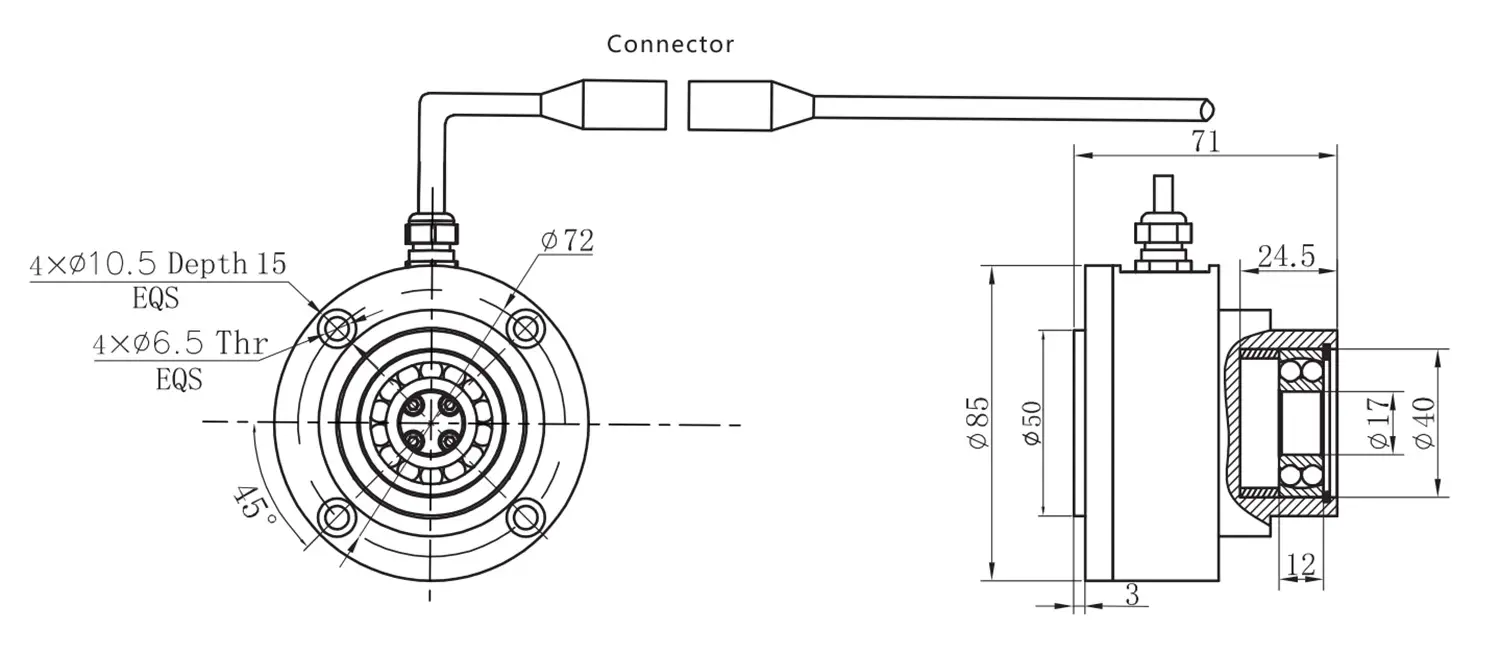

Dimension & Capacity
| Model no | Capacity(kg) |
| X-ZL12-A-2.5-12 | 2.5 |
| X-ZL12-A-5-12 | 5 |
| X-ZL12-A-10-12 | 10 |
| X-ZL12-A-15-12 | 15 |
| X-ZL12-A-25-12 | 25 |
| X-ZL12-A-50-12 | 50 |
Note: The rated load is only applicable to the value of a single sensor, and if installed on both sides, it is twice the above.

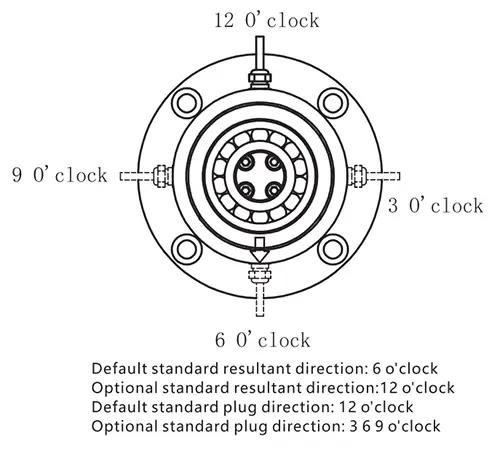

Plug Position
Application
It can be used to measure and control the tension of materials during processing, such as paper, label, tape, battery electrode, high performance film and other narrow materials.
The sensor's detection signal is affected by the position of the collected material on the roller.
Note: The rated load is only applicable to the value of a single sensor, and if installed on both sides, it is twice the above.
