Torque Sensor

XJCSENSensor specializes in manufacturing and customizing industrial-grade all-size force sensors and instrumentation, including multi-axis force sensors, load cells, torque sensors, tension, and pressure sensors, etc. We deliver tailored force control system solutions based on strain gauge, capacitive, MEMS, and piezoelectric technologies to meet diverse application requirements.

Torque Sensor

Application in the motor, engine and other rotary power equipment detection; Torque and power detection in locomotive, automobile, aircraft, mining machinery, etc.

unfold

Dynamic Torque Sensor

Static Torque Sensor

Joint Torque Sensor

Dynamic Torque Sensor

learn more

Static Torque Sensor

learn more

Joint Torque Sensor

learn more

Torque Sensor

Contact structure.
Flange type connection, thin thickness.
High torsional rigidity and strong overload protection capacity.
High precision with the principle of resistance strain type.
Output positive and negative torque signals, Quick response.
Good temperature characteristics with self-compensated strain gauge.

Find Sensor :

显示 15 个产品


	X-ST209-D
	X-ST208-C
	X-ST208-B
	X-ST207-D
	X-ST207-C
	X-ST32-H28-A
	X-ST32-H24-A
	X-DT-2002
	X-DT-2001
	X-ST208-A
	X-ST207-B
	X-ST207-A
	X-ST-B
	X-ST-A
	X-DT-1002
	X-DT-1001

Model	Description	Type	Capacity	Max rotate speed	Height	Outside Dimension	SPEC SHEETS
X-ST209-D	Joint Torque Sensor	Joint	98N.m	Not Appliable	12.5mm	83mm	view more
X-ST208-C	Joint Torque Sensor	Joint	75N.m	Not Appliable	10mm	68mm	view more
X-ST208-B	Joint Torque Sensor	Joint	45N.m	Not Appliable	95mm	55mm	view more
X-ST207-D	Joint Torque Sensor	Joint	98N.m	Not Appliable	9mm	83mm	view more
X-ST207-C	Joint Torque Sensor	Joint	75N.m	Not Appliable	13mm	68mm	view more
X-ST32-H28-A	Static Torque Sensor	Static	1N.m, 2N.m, 5N.m, 10N.m	Not Appliable	28mm	32mm	view more
X-ST32-H24-A	Static Torque Sensor	Static	0.5N.m, 1N.m	Not Appliable	24mm	32mm	view more
X-DT-2002	Dynamic Torque Sensor	Dynamic	5-100N.m	5000r/min	130mm	73mm	view more
X-DT-2001	Dynamic Torque Sensor	Dynamic	0.05-0.2N.m, 0.5-2N.m, 5-100N.m	5000r/min	Multiple	Multiple	view more

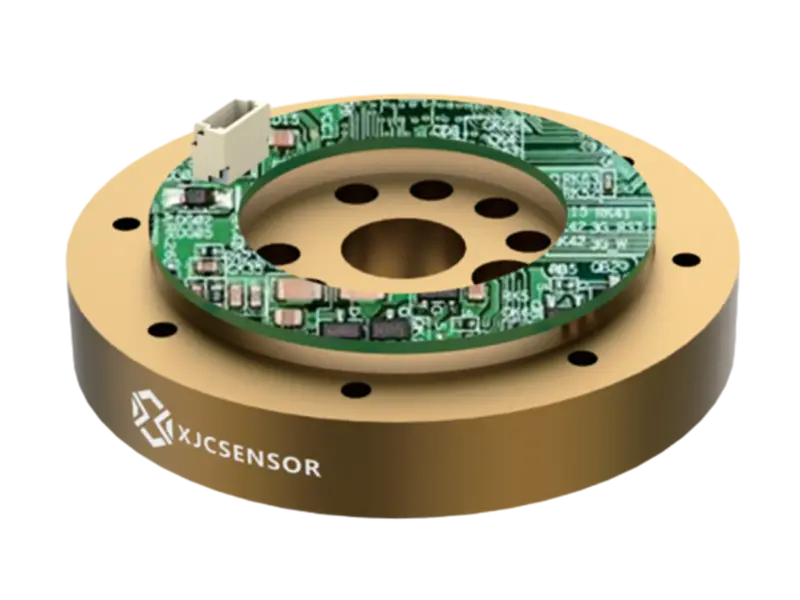

X-ST208-A	Joint Torque Sensor	Joint	7.5N.m	Not Appliable	8mm	23.5mm	view more
X-ST207-B	Joint Torque Sensor	Joint	45N.m	Not appliable	9mm	55mm	view more
X-ST207-A	Joint Torque Sensor	Joint	7.5N.m	Not appliable	6.5mm	48mm	view more
X-ST-B	Static Torque Sensor	Static	02Nm, 05Nm, 1Nm, 5N.m, 10N.m, 20N.m, 50N.m, 100N.m	Not appliable	25mm	41.5mm	view more
X-ST-A	Static Torque Sensor	Static	1N.m, 5N.m, 10N.m, 20N.m, 50N.m, 100N.m	Not appliable	50.8mm	37.6mm	view more
X-DT-1002	Dynamic Torque Sensor	Dynamic	0.1-0.5N.m, 1-2N.m, 5-10N.m, 20-100N.m, 200-500N.m	500r/min	Multiple	Multiple	view more
X-DT-1001	Dynamic Torque Sensor	Dynamic	10kg, 20kg, 50kg, 100kg, 200kg	200r/min	30mm	100mm	view more
