Shaft Head Tension Sensor X-ZL18
Feature
- Easy to install, high measurement accuracy.
- Low tension conditions can also be accurately measured.
- Built-in new mechanical 10 times anti-overload protection.
- Minor temperature drift, good linear error and repeatability error.
- Small size, little space required for installation.
contact us
Technical Parameter
Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Nonlinearity | ≤0.2% F.S. | Rated output | 1.0±0.1mV/V |
| Repeatability | ≤0.1%F.S. | Zero balance | ±2% F.S. |
| Operating temp range | -20~80°℃ | Compensated temp range | -10~40°℃ |
| Temp effect on zero | ≤0.02%F.S/C | Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | 5~10VDC | Ultimate load limit | 500%F.S. |
| Cable size | Ø4x5m | Protection class | IP54 |
| Cable connection | Ex+:Red; Ex-: Black; Sig+:Green; Sig-:White | ||

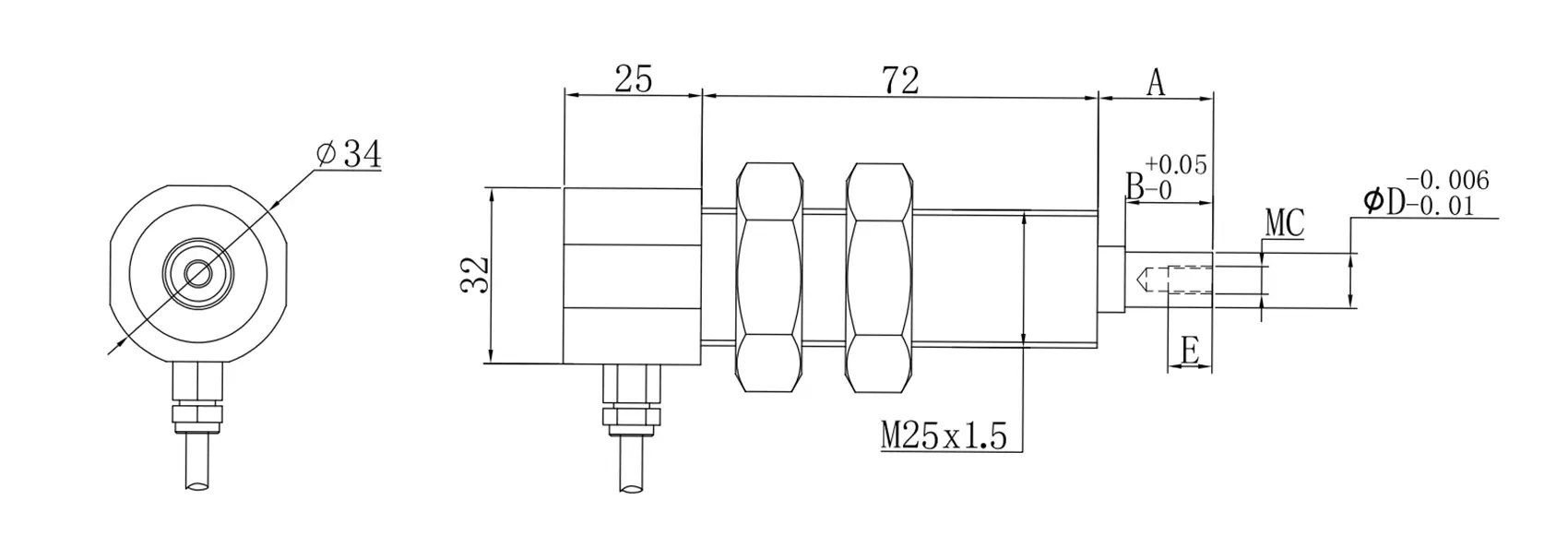

Dimension & Capacity
| Model no | Capacity(N) | Dimension | ||||
| A | B | C | D | E | ||
| X-ZL18-o-5 | 10,20,30,40 | 12.9 | 9.9 | 3 | 5 | 6 |
| X-ZL18-o-8 | 10,20,50,100,300 | 15.9 | 11.9 | 4 | 8 | 6 |
| X-ZL18-o-10 | 10,20,50,100,500 | 20.9 | 15.9 | 5 | 10 | 8 |
| X-ZL18-o-12 | 10,20,50,100,500,1000 | 24.9 | 19.9 | 6 | 12 | 10 |
Application
It can be used to measure and control the tension of materials during processing, such as paper, label tape, battery electrode, high performance film and other arrow materials. The sensor's detection signal is not affected by the position of the coiled material on the roller.
