Shaft Head Tension Sensor X-ZL17
Feature
- Easy to install, high measurement accuracy.
- Low tension conditions can also be accurately measurement.
- Built-in new mechanical 10 times anti-overload protection.
- Minor temperature drift, good non-linearity and repeatability.
- Small size, little space required for installation.
contact us
Technical Parameter
Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Nonlinearity | ≤0.2% F.S. | Rated output | 1.0±0.1mV/V |
| Repeatability | ≤0.1%F.S. | Zero balance | ±2%F.S. |
| Operating temprange | -20~80°℃ | Compensated temp range | -10~40°℃ |
| Temp effect on zero | ≤0.02%F.S/℃ | Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | 5~10VDC | Ultimate load limit | 500%F.S. |
| Cable size | Ø5x5m | Protection class | IP54 |
| Cable connection | Ex+:Red; Ex-: Black; Sig+:Green; Sig-:White | ||

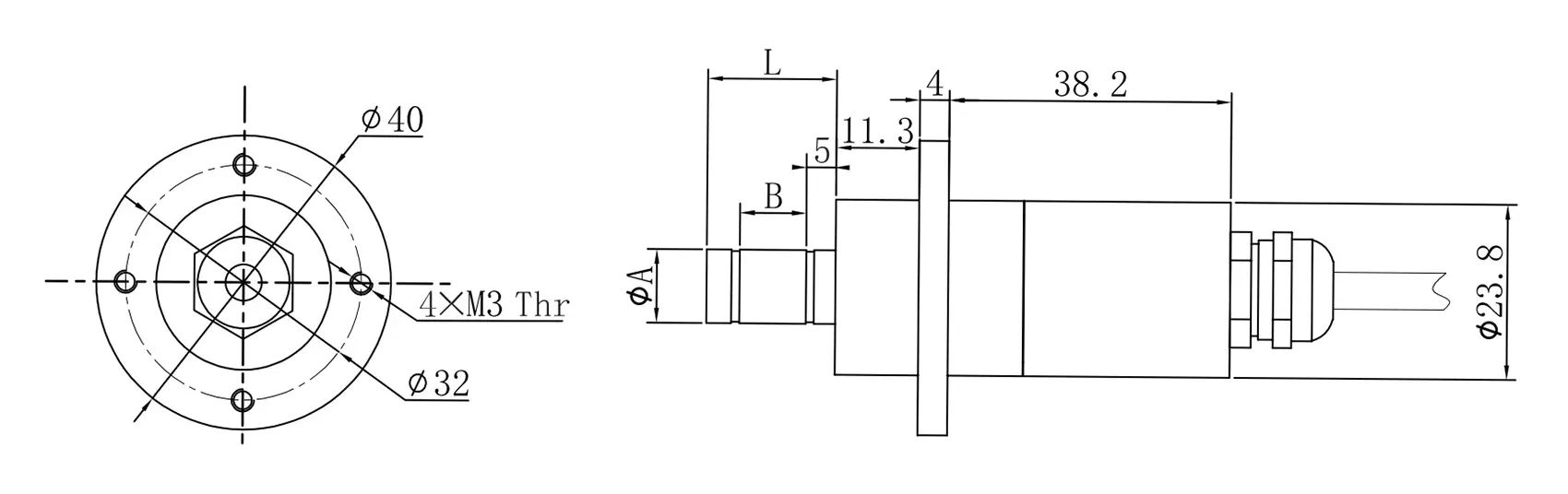

Dimension & Capacity
| Model no | Capacity (N) | Dimension | ||
| A | B | L | ||
| X-ZL17-10-6 | 10 | 6 | 6 | 14.5 |
| X-ZL17-20-6 | 20 | 6 | 6 | 14.5 |
| X-ZL17-50-6 | 50 | 6 | 6 | 14.5 |
| X-ZL17-100-6 | 100 | 6 | 6 | 14.5 |
| X-ZL17-300-6 | 300 | 6 | 6 | 14.5 |
| Model no | Capacity(N) | Dimension | ||
| A | B | L | ||
| X-ZL17-10-10 | 10 | 10 | 9 | 17.5 |
| X-ZL17-20-10 | 20 | 10 | 9 | 17.5 |
| X-ZL17-50-10 | 50 | 10 | 9 | 17.5 |
| X-ZL17-100-10 | 100 | 10 | 9 | 17.5 |
| X-ZL17-300-10 | 300 | 10 | 9 | 17.5 |
Application
It can be used to measure and control the tension of materials during processing, such as paper, label, tape, battery electrode, high performance film and other narrow materials. The sensor's detection signal is not affected by the position of the cooled material on the roller.
