Flange Tension Sensor X-ZL10
Feature
- Built-in self-aligning bearing (two ends are not in the same surface) which can compensate for bearing expansion and misalignment.
- Self-aligning bearing is easy to install.
- Built-in new mechanical 10 times anti-overload protection.
- Minor temperature drift, good non-linearity and repeatability.
- Strong connections provide long-term reliability.
- Small size, little space required for installation.
- Two installation directions are available.
contact us
Technical Parameter
Dimension & Capacity
Plug Position
Application
File Download
Related Blogs
Technical Parameter
| Nonlinearity | ≤0.3% F.S. | Rated output | 1.5±0.15mV/V |
| Repeatability | ≤0.15%F.S. | Zero balance | ±2% F.S. |
| Operating temp range | -20~80°℃ | Compensated temp range | -10~40°℃ |
| Temp effect on zero | ≤0.02%F.S/C | Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | 5~10VDC | Ultimate load limit | 300%F.S. |
| Cable size | Ø5x5m | Protection class | IP63 |
| Cable connection | Ex+:Red; Ex-:Black; Sig+: Green; Sig-:White | ||

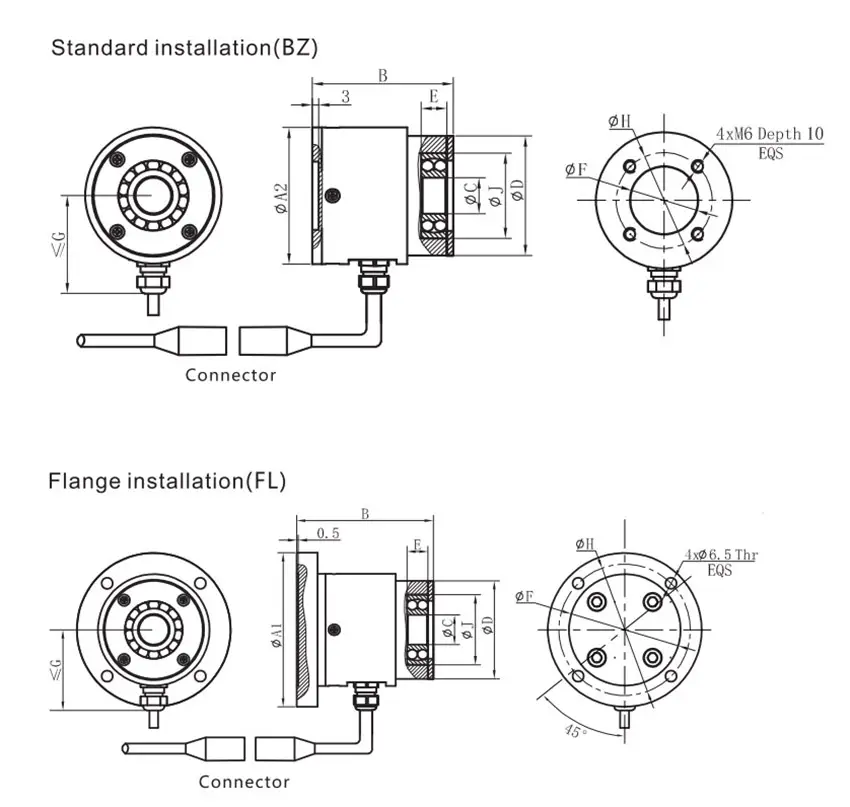

Dimension & Capacity
| Model no | Capacity(kg) | Dimension | |||||||||
| A1 | A2 | B | C | D | E | F | G | H | J | ||
| X-ZL10-5-BZ-6 | 5 | / | 64 | 66 | 17 | 56 | 12 | 30 | 50 | 45 | 40 |
| X-ZL10-15-BZ-6 | 15 | / | 64 | 66 | 17 | 56 | 12 | 30 | 50 | 45 | 40 |
| X-ZL10-25-BZ-6 | 25 | / | 64 | 66 | 17 | 56 | 12 | 30 | 50 | 45 | 40 |
| X-ZL10-50-BZ-6 | 50 | / | 64 | 66 | 17 | 56 | 12 | 30 | 50 | 45 | 40 |
| X-ZL10-75-BZ-6 | 75 | / | 80 | 70 | 25 | 70 | 15 | 47 | 60 | 60 | 52 |
| X-ZL10-100-BZ-6 | 100 | / | 80 | 70 | 25 | 70 | 15 | 47 | 60 | 60 | 52 |
| X-ZL10-5-FL-6 | 5 | 88 | / | 78 | 17 | 56 | 12 | 64 | 50 | 75 | 40 |
| X-ZL10-15-FL-6 | 15 | 88 | / | 78 | 17 | 56 | 12 | 64 | 50 | 75 | 40 |
| X-ZL10-25-FL-6 | 25 | 88 | / | 78 | 17 | 56 | 12 | 64 | 50 | 75 | 40 |
| X-ZL10-50-FL-6 | 50 | 88 | / | 78 | 17 | 56 | 12 | 64 | 50 | 75 | 40 |
| X-ZL10-75-FL-6 | 75 | 120 | / | 82 | 25 | 70 | 15 | 80 | 60 | 104 | 52 |
| X-ZL10-100-FL-6 | 100 | 120 | / | 82 | 25 | 70 | 15 | 80 | 60 | 104 | 52 |
Note: The rated load is only applicable to the value of a single sensor, and ifinstalled on both sides, it is twice the above.

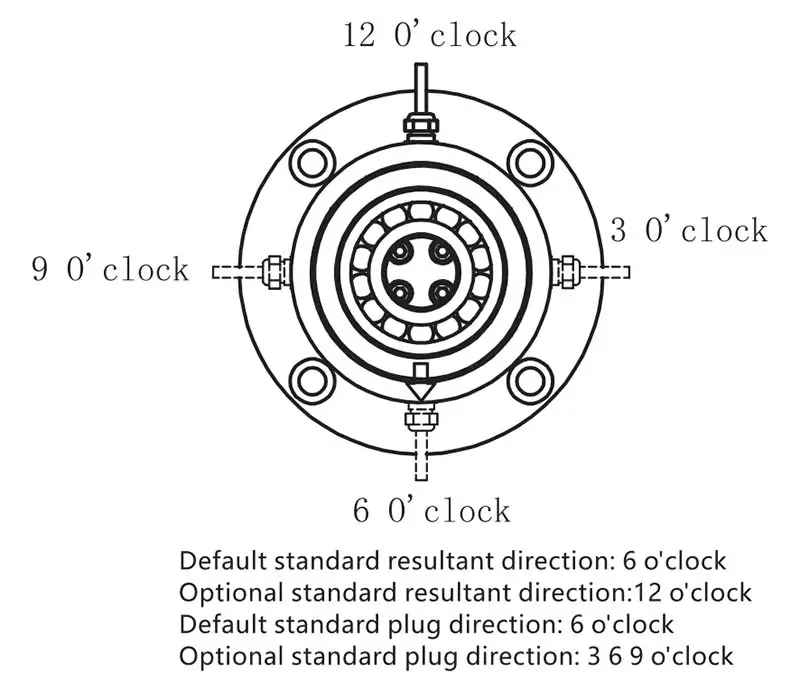

Plug Position
Application
It can be used to measure and control the tension of materials during processing, such as paper, label, tape, battery electrode, high performance film and other arrow materials. The sensor's detection signal is not affected by the position of the coiled material on the roller.
