Cantilever Tension Sensor X-ZL08
Feature
- Compact structure, can be installed in narrow equipment.
- Built-in self-aligning bearing (two ends are not in the same surf ace ) which can compensate for bearing expansion and misalignment.
- Built-in new mechanical 10 times anti-overload protection.
- Minor temperature drift, good non-linearity and repeatability.
- Strong connections provide long-term reliability.
- Two installation directions are available.
contact us
| Nonlinearity | ≤0.5% F.S. | Rated output | 1.0-2.0mV/V |
| Repeatability | ≤0.2%F.S. | Zero balance | ±2% F.S. |
| Operating temp range | -20~80°℃ | Compensated temp range | -10~40°℃ |
| Temp effect on zero | ≤0.02%F.S/℃ | Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | 5~10VDC | Ultimate load limit | 300%F.S. |
| Cable size | Ø5x5m | Protection class | IP63 |
| Cable connection | Ex+:Red; Ex-: Black; Sig+:Green; Sig-:White | ||
Technical Parameter
Dimension & Capacity
Plug Position
Application
File Download
Related Blogs
Technical Parameter

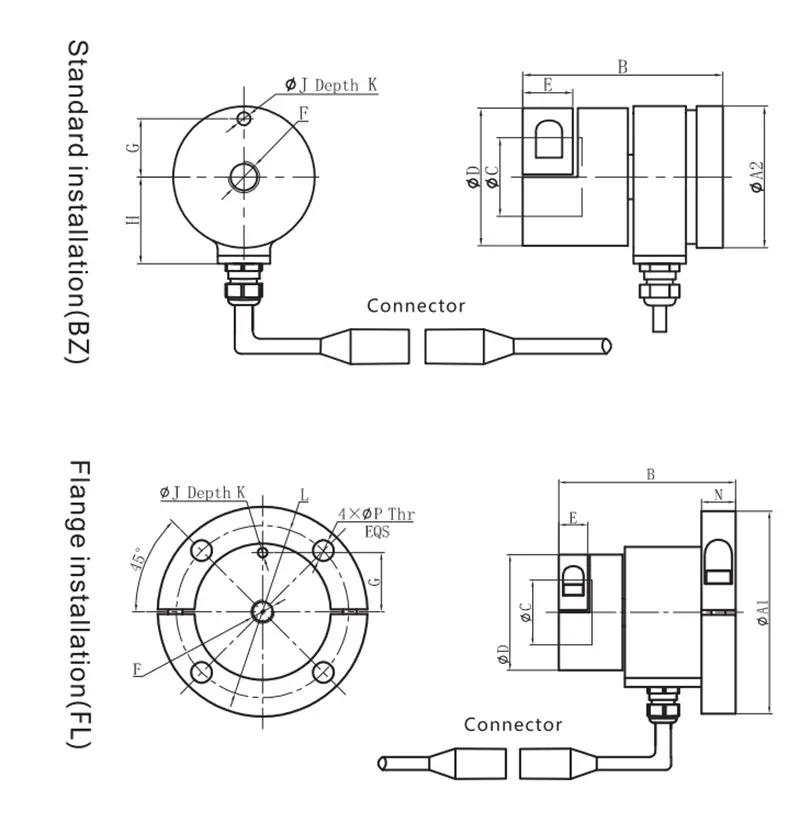

Dimension & Capacity
| Model no | Capacity(kg) | Dimension | |||||||||||||
| A1 | A2 | B | C | D | E | F | G | H | J | K | L | N | P | ||
| X-ZL08-5-BZ-6 | 5 | / | 58 | 77.6 | 28.5 | 50.8 | 12.7 | M10 | 25 | 42 | 4 | 5 | / | / | |
| X-ZL08-15-BZ-6 | 15 | / | 58 | 77.6 | 28.5 | 50.8 | 12.7 | M10 | 25 | 42 | 4 | 5 | / | / | / |
| X-ZL08-25-BZ-6 | 25 | / | 58 | 77.6 | 28.5 | 50.8 | 12.7 | M10 | 25 | 42 | 4 | 5 | / | / | / |
| X-ZL08-50-BZ-6 | 50 | / | 58 | 77.6 | 28.5 | 50.8 | 12.7 | M10 | 25 | 42 | 4 | 5 | / | / | / |
| X-ZL08-5-FL-6 | 5 | 89 | / | 77.6 | 28.5 | 50.8 | 12.7 | M10 | 25 | 42 | 4 | 5 | 73 | 15 | 9 |
| X-ZL08-15-FL-6 | 15 | 89 | / | 77.6 | 28.5 | 50.8 | 12.7 | M10 | 25 | 42 | 4 | 5 | 73 | 15 | 9 |
| X-ZL08-25-FL-6 | 25 | 89 | / | 77.6 | 28.5 | 50.8 | 12.7 | M10 | 25 | 42 | 4 | 5 | 73 | 15 | 9 |
| X-ZL08-50-FL-6 | 50 | 89 | / | 77.6 | 28.5 | 50.8 | 12.7 | M10 | 25 | 42 | 4 | 5 | 73 | 15 | 9 |
Note: The rated load is only applicable to the value of a single sensor, and if installed on both sides, it is twice the above.

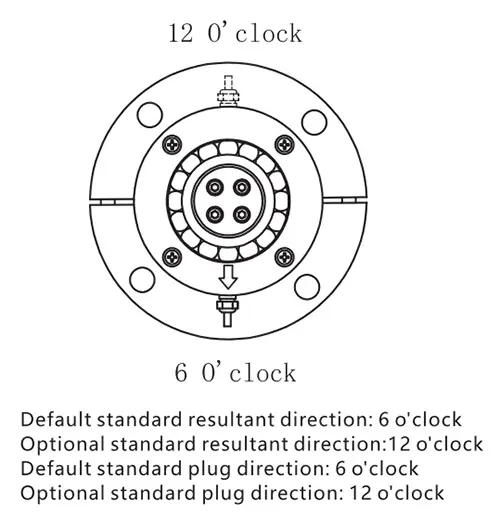

Plug Position
Application
It can be used to measure and control the tension of materials during processing, such as paper, label, tape, battery electrode, high performance film and other arrow materials. The sensor's detection signal is not affected by the position of the coiled material on the roller.
