Pillow Block Bearing Tension Sensor X-ZL15
Feature
- Easy to install and replace the bearing and tension roller.
- Built-in new mechanical 10 times anti-overload protection.
- Minor temperature drift, good non-linearity and repeatability.
- Strong connections provide long-term reliability.
- Drilling and tapping are available.
- Can eliminate the interference of other forces, only measure tension to improve accuracy.
contact us
Technical Parameter
Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Nonlinearity | ≤0.3% F.S. | Rated output | 1.5±0.2mV/V |
| Repeatability | ≤0.15%F.S. | Zero balance | ±2% F.S. |
| Operating temp range | -20~80°℃ | Compensated temp range | -10~40°℃ |
| Temp effect on zero | ≤0.02%F.S/C | Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | 5~10VDC | Ultimate load limit | 300%F.S. |
| Cable size | Ø5x5m | Protection class | IP63 |
| Cable connection | Ex+:Red; Ex-: Black; Sig+: Green; Sig-:White | ||

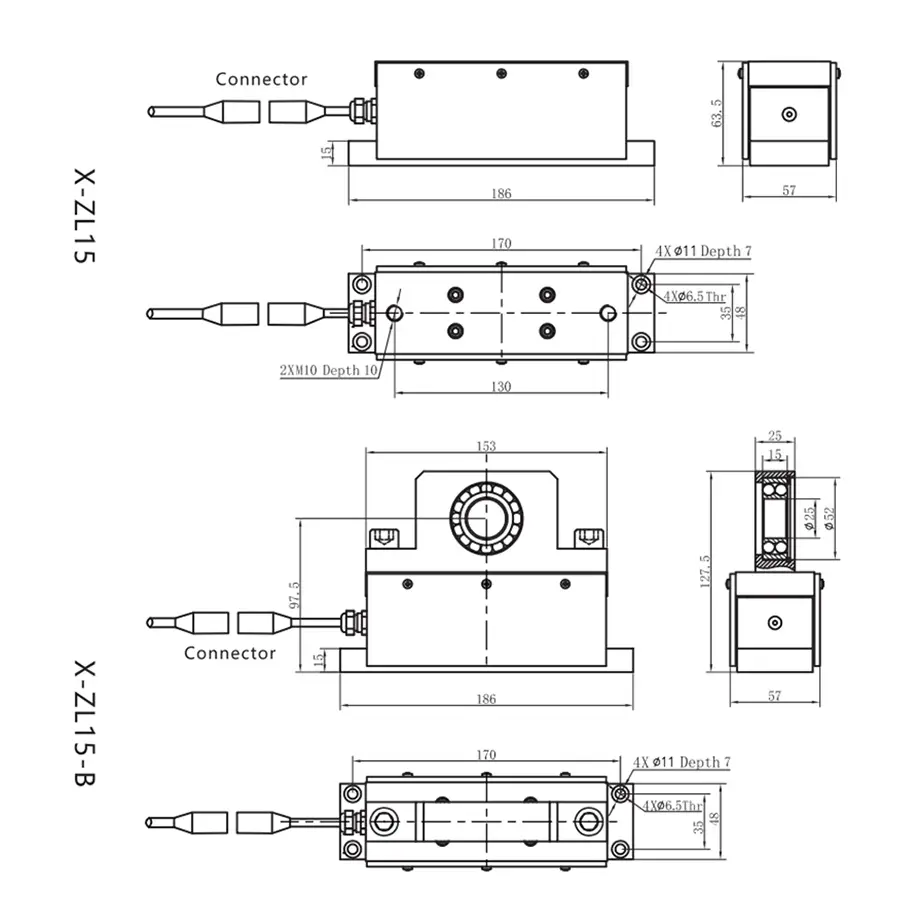

Dimension & Capacity
| Modelno | Capacity(kg) |
| X-ZL15-15 | 15 |
| X-ZL15-25 | 25 |
| X-ZL15-50 | 50 |
| X-ZL15-100 | 100 |
| X-ZL15-200 | 200 |
| X-ZL15-B-15 | 15 |
| X-ZL15-B-25 | 25 |
| X-ZL15-B-50 | 50 |
| X-ZL15-B-100 | 100 |
| X-ZL15-B-200 | 200 |
Note: The rated load is only applicable to the value of a single sensor, and if installed on both sides, it is twice the above.
Application
It can be used to measure and control the tension of materials during processing, such as paper, label, tape, battery electrode, high performance film and other narrow materials.
The sensors' detection signal is not affected by the position of the cooled material on the roller.
Note: The rated load is only applicable to the value of a single sensor, and if installed on both sides, it is twice the above.
