Cantilever Tension Sensor X-ZL06
Feature
- Easy to install with various installation modes.
- Detection signal is not affected by the position of the coil on the roller.
- Built-in new mechanical 10 times anti-overload protection.
- Minor temperature drift, good non-linearity and repeatability.
- Small size, little space required for installation.
contact us
Technical Parameter
Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Nonlinearity | ≤0.2%F.S. | Rated output | 1.0±0.2mV/V |
| Repeatability | ≤0.1%F.S. | Zero balance | ±2% F.S. |
| Operating temp range | -20~80°℃ | Compensated temp range | -10~40°℃ |
| Temp effect on zero | ≤0.02%F.S/℃ | Insulation | ≥2000MΩ/100VDC |
| Recommended excitation | 5~10VDC | Ultimate load limit | 300%F.S. |
| Cable size | Ø5x5m | Protection class | IP63 |
| Cable connection | Ex+:Red; Ex-: Black; Sig+: Green; Sig-:White | ||

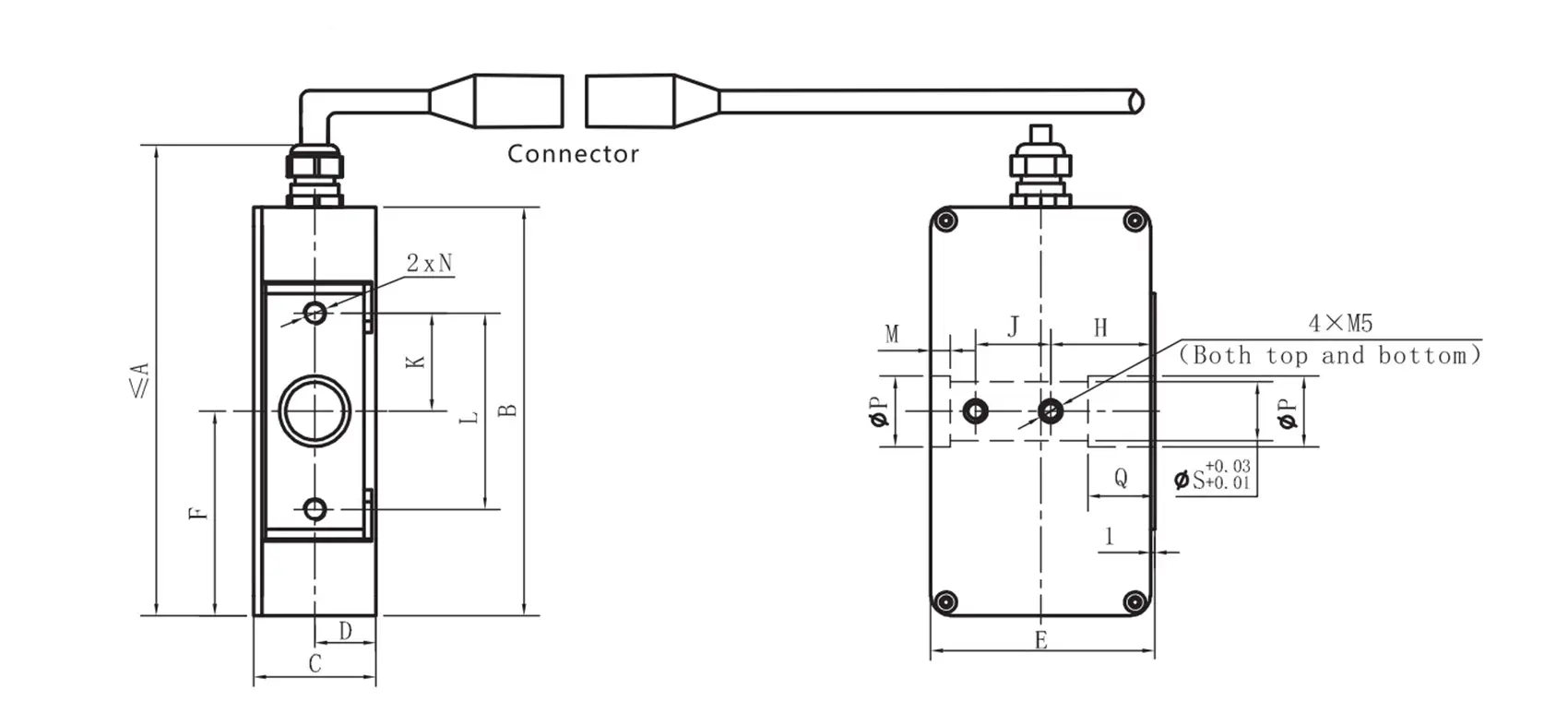

Dimension & Capacity
Application
It can be used to measure and control the tension of materials during processing, such as paper, label, tape, battery electrode, high performance film and other narrow materials. The sensor's detection signals are affected by the position of the coiled material on the roller.
