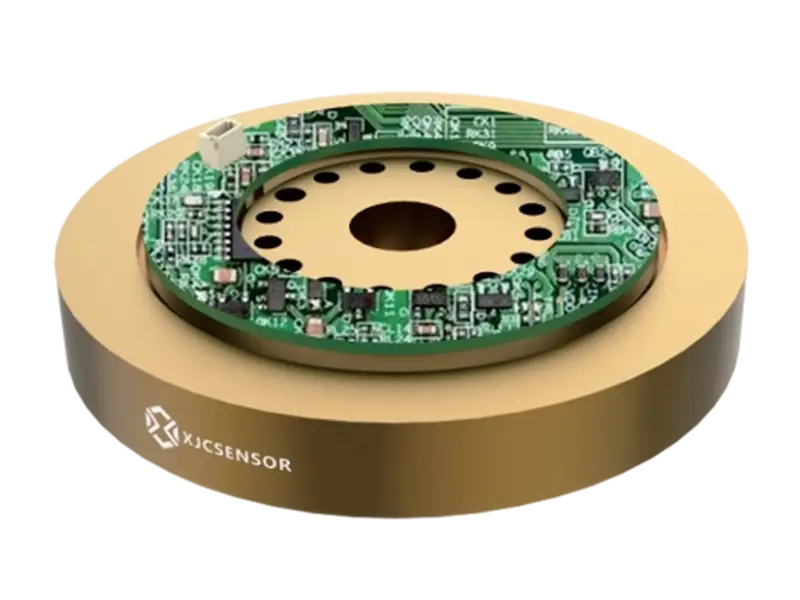

Joint Torque Sensor X-ST209-D
Feature
- Various communication methods are available.
- High sampling frequency, quick response, strong anti-interference ability.
- High precision with the principle of resistance strain type.
- God temperature characteristics with self-compensated strain gauge.
- Small size, thin thickness, high horsional rigidity and strong overload protection capacity.
contact us
Technical Parameter
Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Capacity (Optional) | 98N.m | Material | Stainless Steel |
| Nonlnearity | ≤0.5% F.S. | Output | 0.5V-2.5V-4.5V (-98N.m-0-98N.m) |
| Recommended excitation | 5VDC | Compensated temp range | -10~40°℃ |
| Hysteresis | ≤0.5% F.S. | Operating temp range | -20~80℃ |
| Repeatability | ≤0.5% F.S. | Creep(30min) | ≤0.2% F.S. |
| Sampling frequency | ≥300Hz | Safe load limit | 200%F.S. |
| Crosstalk axial force | 1960N | Temp effect on zero | ≤0.5% F.S./10℃ |
| Crosstalk radial force | 1960N | Ultimate load limit | 300 %F.S. |
| Crosstalk bending moment | 49N.m | Cross-talk error | ≤1% F.S. |
| Torsional Stiffness | 1000KN.m/rad | Pin assigment | Pin1:GND Pin2:5V Pin3:CH1 Pin4:NC |

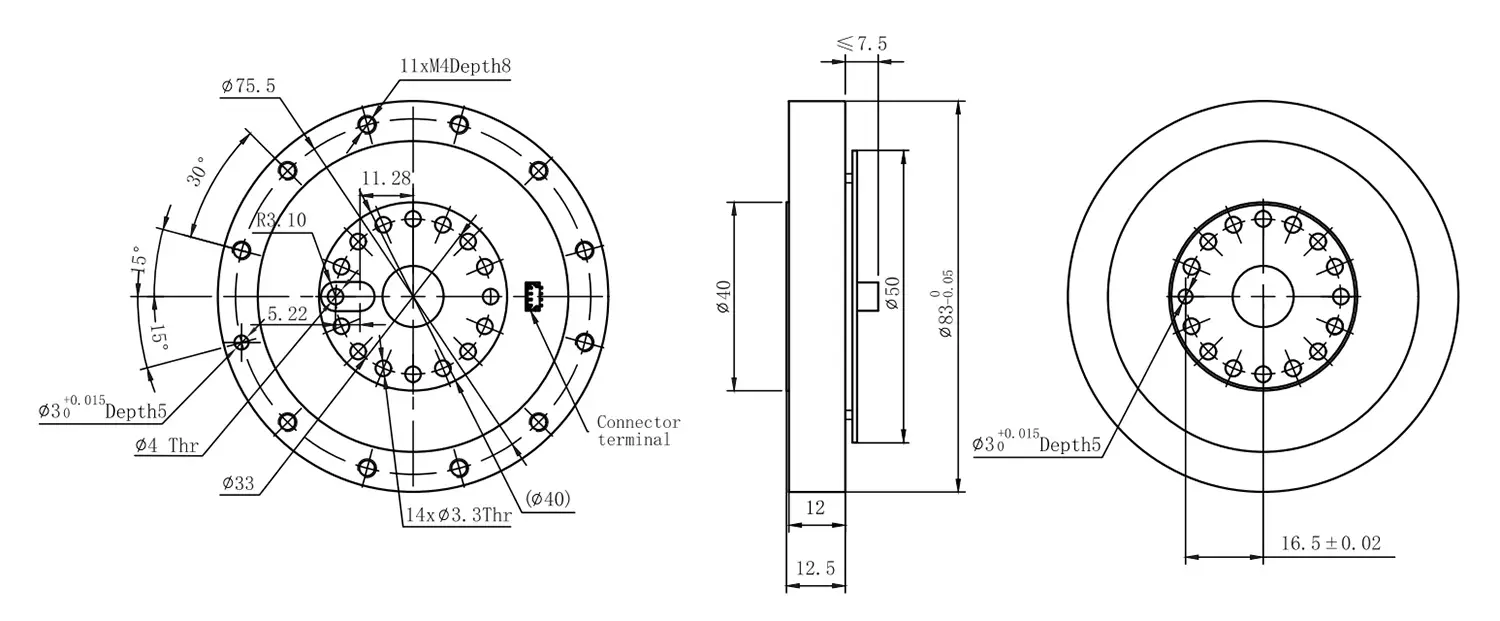

Dimension & Capacity
Application
It is suitable for force value detection of industrial automation, automotive industry, bolt tightening technology, electric motors, and pumps.
