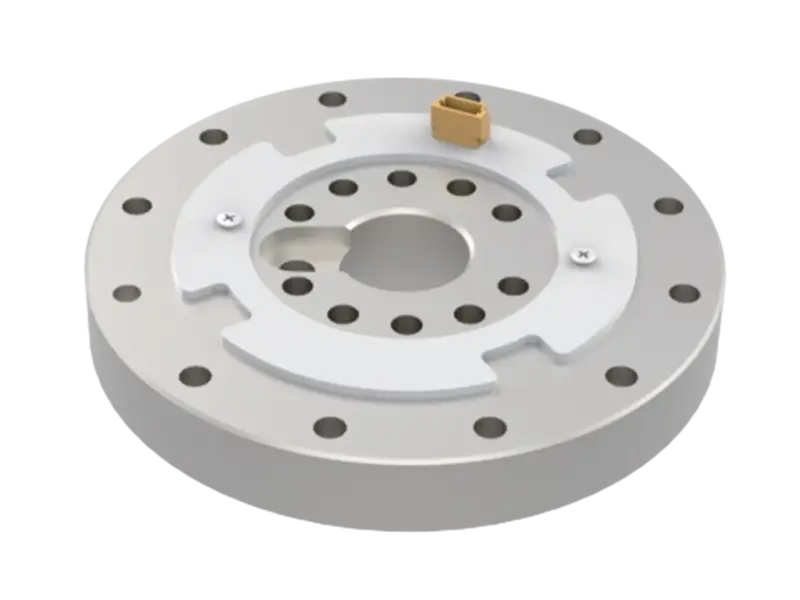

Joint Torque Sensor X-ST207-C
Feature
- Various communication methods are available.
- High sampling frequency, quick response, strong anti-interference ability.
- High precision with the principle of resistance strain type.
- Good temperature characteristics with self-compensated strained gauge.
- Small size, thin thickness, high torsional rigidity and strong overload protection capacity.
contact us
Technical Parameter
Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Capacity(Optional) | 75N.m | Material | Aluminum |
| Nonlinearity | ≤0.5% F.S. | Communication | 0.5V-2.5V-4.5V (-75N.m-0-75N.m) |
| Recommended excitation | 5VDC | Compensated temp range | -10~40°℃ |
| Protection class | IP54 | Operating temp range | -20~60℃ |
| Hysteresis | ≤0.5% F.S. | Creep(30min) | ≤0.2% F.S. |
| Repeatability | ≤0.5% F.S. | Safe load limit | 200%F.S. |
| Sampling frequency | ≥300Hz | Temp effect on output | ≤0.5% F.S./10°℃ |
| Crosstalk axial force | 180N | Temp effect on zero | ≤0.5% F.S./10°℃ |
| Crosstalk radial force | 300N | Ultimate load limit | 300 %F.S. |
| Crosstalk bending moment | 35N.m | Cross-talk error | ≤1% F.S. |
| Torsional Stiffness | 75KN.m/rad | Pin assigment | Pin1:GND Pin2:5V Pin3:CH1 Pin4:NC |

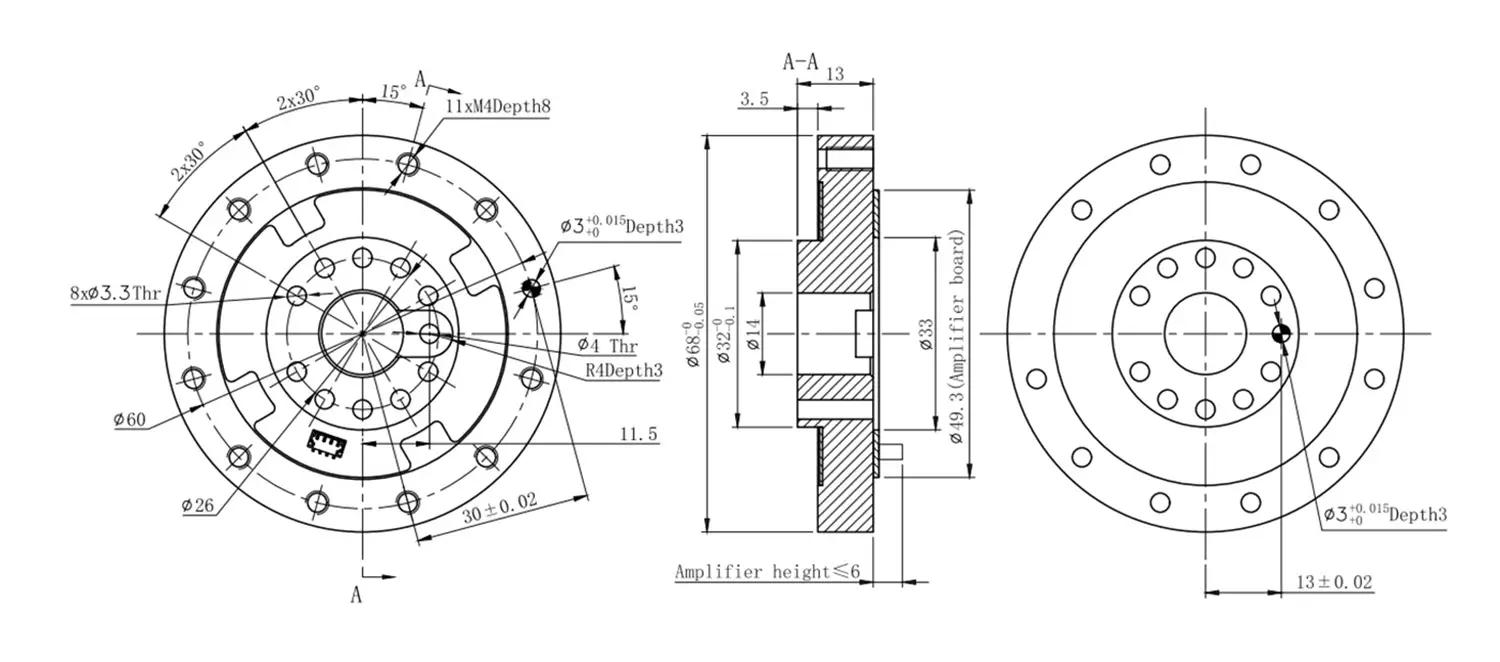

Dimension & Capacity
Application
It is suitable for force value detection of industrial automation, automotive industry, bolt tightening technology, electric motors, and pumps.
