Name: Static Torque Sensor X-ST32-H24-A
Brand: XJCSENSOR
Price: 60.0 USD
Availability: InStock
Rating: 5 (19 reviews)

Static Torque Sensor X-ST32-H24-A

Feature

High accuracy, stable performance and low-range torque measurement
Easy to install, Static torque measurement, both ends are connected with flanges.

Technical Parameter

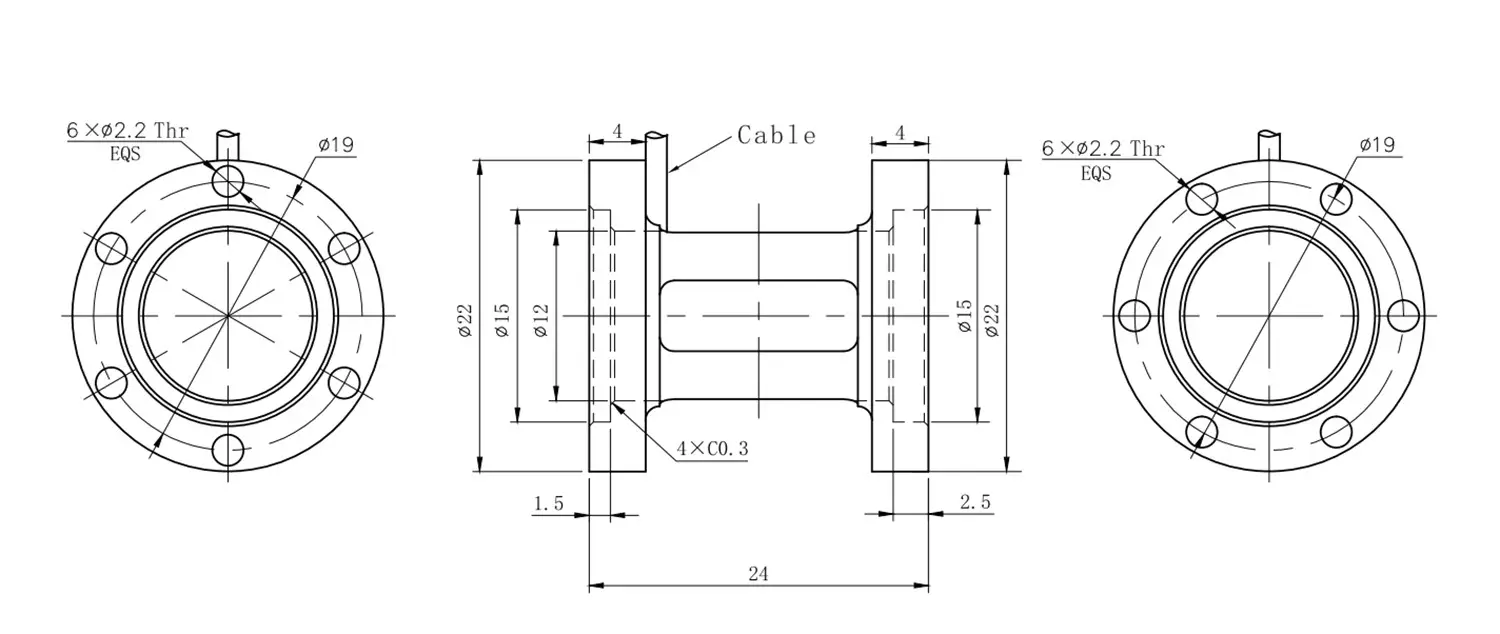

Dimension & Capacity

Application

File Download

Related Blogs

Technical Parameter

Capacity(Optional)	0.5N.m,1N.m	Material	Aluminum
Nonlinearity	≤0.2% F.S.	Rated output	0.5-2.5mV/V
Recommended excitation	5-10VDC	Maximum excitation	10V DC
Protection class	IP54	Compensated temp range	-10~40°℃
Hysteresis	≤0.2% F.S.	Operating temp range	-20~80℃
Repeatability	≤0.2% F.S.	Insulation	≥5000MΩ/100V(DC)
Input impedance	350±10Ω	Output impedance	350±10Ω
Creep(30min)	≤0.2% F.S.	Temp effect on output	≤0.5%F.S./10°℃
Zero balance	± 2% F.S.	Temp effect on zero	≤0.5% F.S./10℃
Safe load limit	150%F.S.	Ultimate load limit	200%F.S.
Cable size	Ø2x200mm	Fatigue life	Full scale more than 1 million times
Cable connection	Ex+:Red; Ex-:Black; Sig+: Green; Sig-:White
