Static Torque Sensor X-ST-A
Feature
- Adoptshigh-precision resistance strain principle
- Supports force measurement in the range of 0-100Nm.
- Easy to install.
- Small size, beautiful appearance
contact us
Technical Parameter
Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Capacity(Optional) | 1N.m,5N.m,10N.m,20N.m,50N.m,100N.m | Material | Aluminum alloyAlloy steel |
| Nonlinearity | ≤0.2% F.S. | Rated output | 1.0~2.0mV/V |
| Recommended excitation | 5-10VDC | Maximum excitation | 10V DC |
| Protection class | IP54 | Compensated temp range | -10~40℃ |
| Hysteresis | ≤0.2% F.S. | Operating temp range | -20~80℃ |
| Repeatability | ≤0.2% F.S. | Insulation | ≥5000MΩ/100VDC |
| Input impedance | 380±30Ω | Output impedance | 350±5Ω |
| Creep(30min) | ≤0.2% F.S. | Temp effect on output | ≤0.2%F.S./10℃ |
| Zero balance | ± 2% F.S. | Temp effect on zero | ≤0.2%F.S./10℃ |
| Safe load limit | 150%F.S. | Ultimate load limit | 200%F.S. |
| Cable size | Ø3x4m | Fatigue life | Full scale more than 1 million times |
| Cable connection | Ex+:Red; Ex-: Black; Sig+:Green; Sig-: White | ||

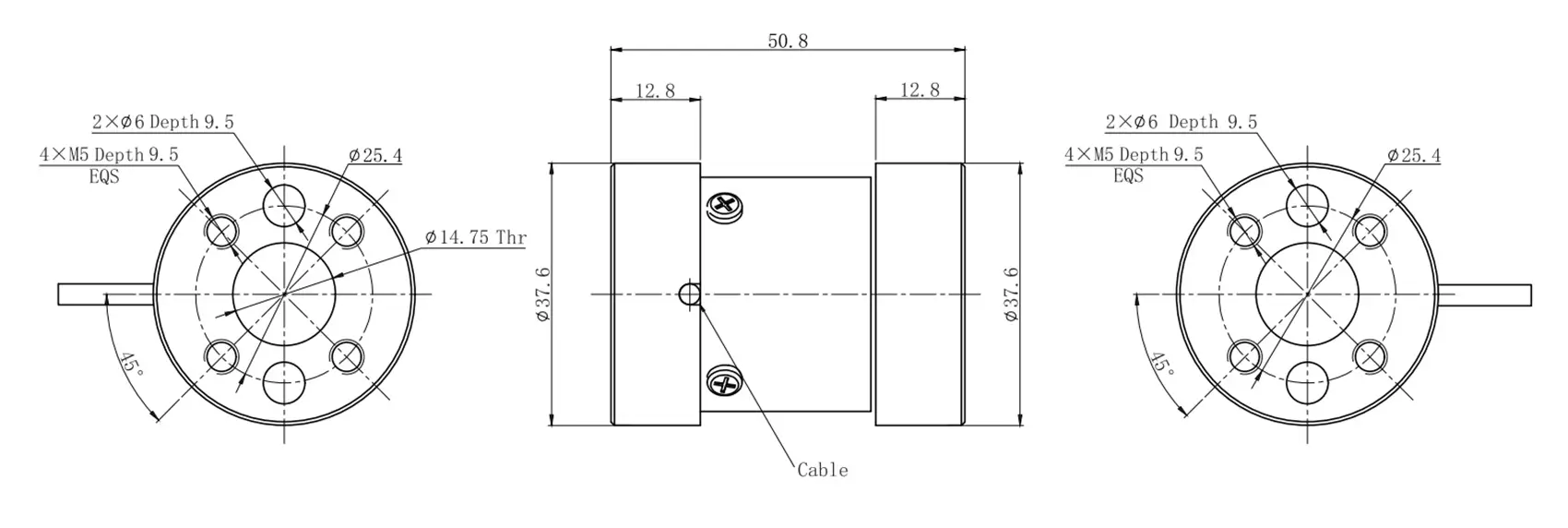

Dimension & Capacity
Application
Application in the motor, engine and other rotary power equipment detection; Torque and power detection in locomotive, automobile, aircraft, mining machinery, etc.
File Download
