Static Torque Sensor

XJCSENSensor specializes in manufacturing and customizing industrial-grade all-size force sensors and instrumentation, including multi-axis force sensors, load cells, torque sensors, tension, and pressure sensors, etc. We deliver tailored force control system solutions based on strain gauge, capacitive, MEMS, and piezoelectric technologies to meet diverse application requirements.

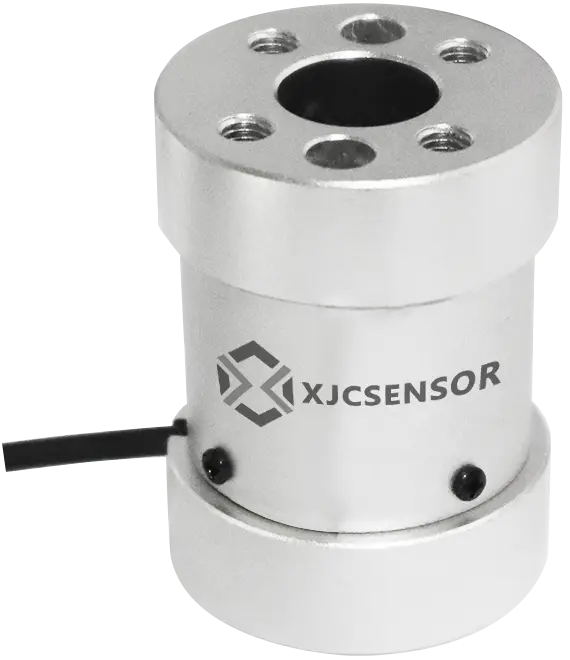

Static Torque Sensor

Application in the motor, engine and other rotary power equipment detection; Torque and power detection in locomotive, automobile, aircraft, mining machinery, etc.

unfold

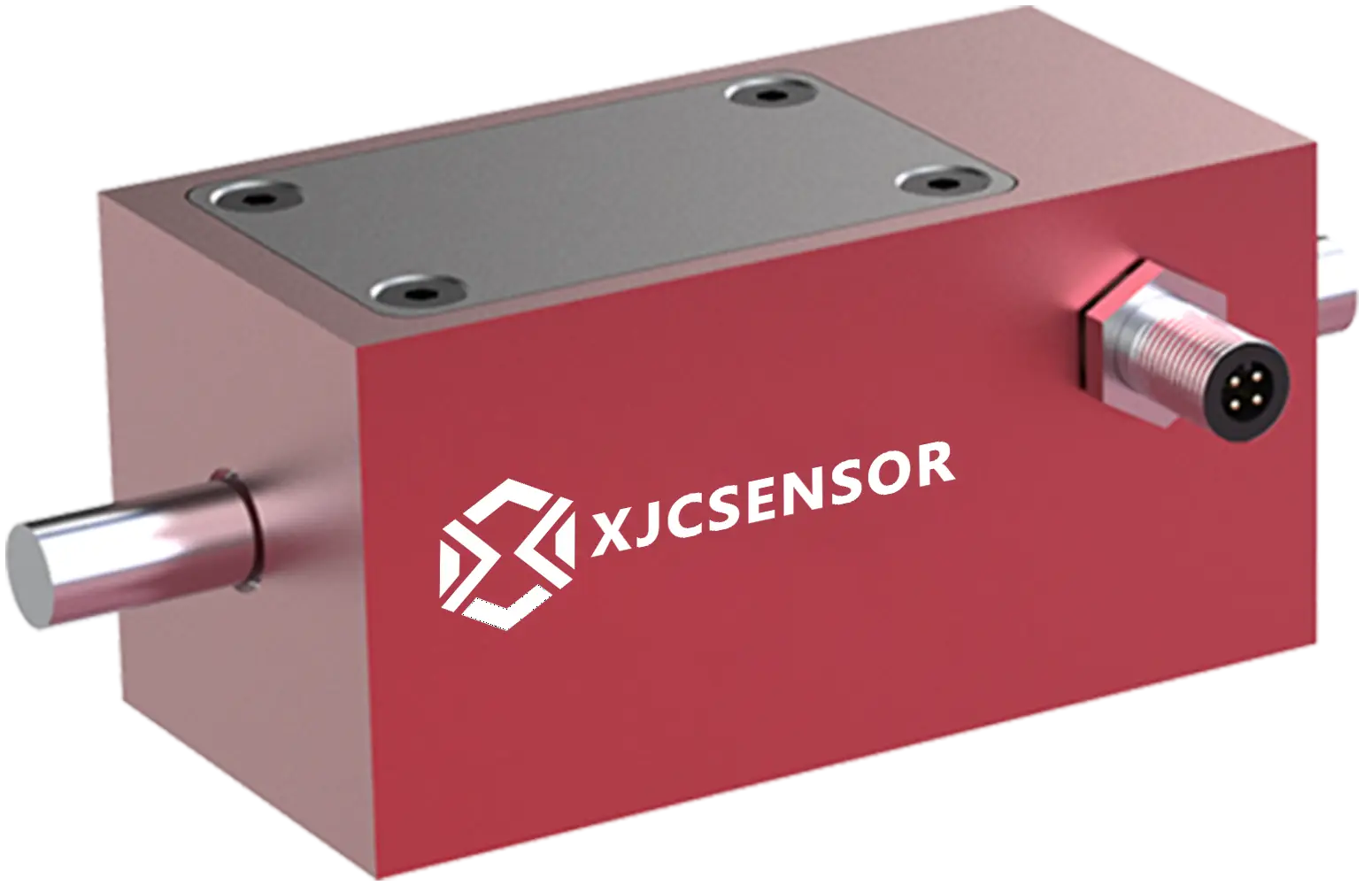

Dynamic Torque Sensor

Joint Torque Sensor

Dynamic Torque Sensor

learn more

Static Torque Sensor

learn more

Joint Torque Sensor

learn more

Static Torque Sensor

Adoptshigh-precision resistance strain principle.
Supports force measurement in the range of 0-100Nm.
Easy to install.
Small size, beautiful appearance.

Find Sensor :

显示 15 个产品


	X-ST32-H28-A
	X-ST32-H24-A
	X-ST-B
	X-ST-A

Model	Description	Type	Capacity	Max rotate speed	Height	Outside Dimension	SPEC SHEETS
X-ST32-H28-A	Static Torque Sensor	Static	1N.m, 2N.m, 5N.m, 10N.m	Not Appliable	28mm	32mm	view more

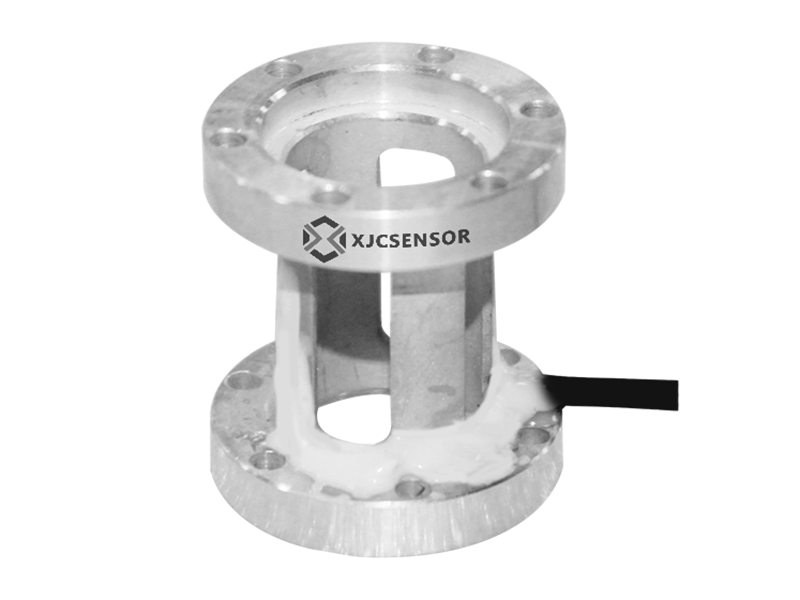

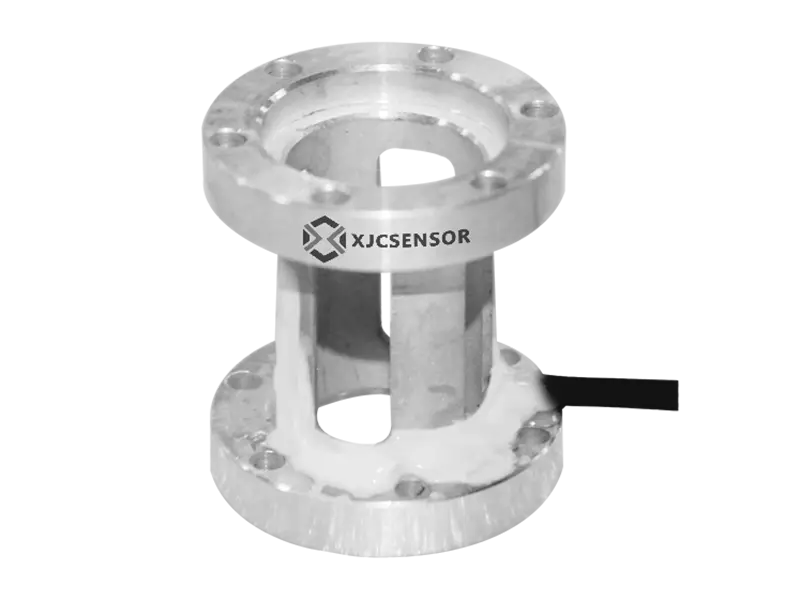

X-ST32-H24-A	Static Torque Sensor	Static	0.5N.m, 1N.m	Not Appliable	24mm	32mm	view more
X-ST-B	Static Torque Sensor	Static	02Nm, 05Nm, 1Nm, 5N.m, 10N.m, 20N.m, 50N.m, 100N.m	Not appliable	25mm	41.5mm	view more
X-ST-A	Static Torque Sensor	Static	1N.m, 5N.m, 10N.m, 20N.m, 50N.m, 100N.m	Not appliable	50.8mm	37.6mm	view more
