Dynamic Torque Sensor

XJCSENSensor specializes in manufacturing and customizing industrial-grade all-size force sensors and instrumentation, including multi-axis force sensors, load cells, torque sensors, tension, and pressure sensors, etc. We deliver tailored force control system solutions based on strain gauge, capacitive, MEMS, and piezoelectric technologies to meet diverse application requirements.

Dynamic Torque Sensor

Application in the motor, engine and other rotary power equipment detection; Torque and power detection in locomotive, automobile, aircraft, mining machinery, etc.

unfold

Static Torque Sensor

Joint Torque Sensor

Dynamic Torque Sensor

learn more

Static Torque Sensor

learn more

Joint Torque Sensor

learn more

Dynamic Torque Sensor

Contact structure.
Flange type connection, thin thickness.
High torsional rigidity and strong overload protection capacity.
High precision with the principle of resistance strain type.
Output positive and negative torque signals, Quick response.
Good temperature characteristics with self-compensated strain gauge.

Find Sensor :

显示 15 个产品


	X-DT-2002
	X-DT-2001
	X-DT-1002
	X-DT-1001

Model	Description	Type	Capacity	Max rotate speed	Height	Outside Dimension	SPEC SHEETS

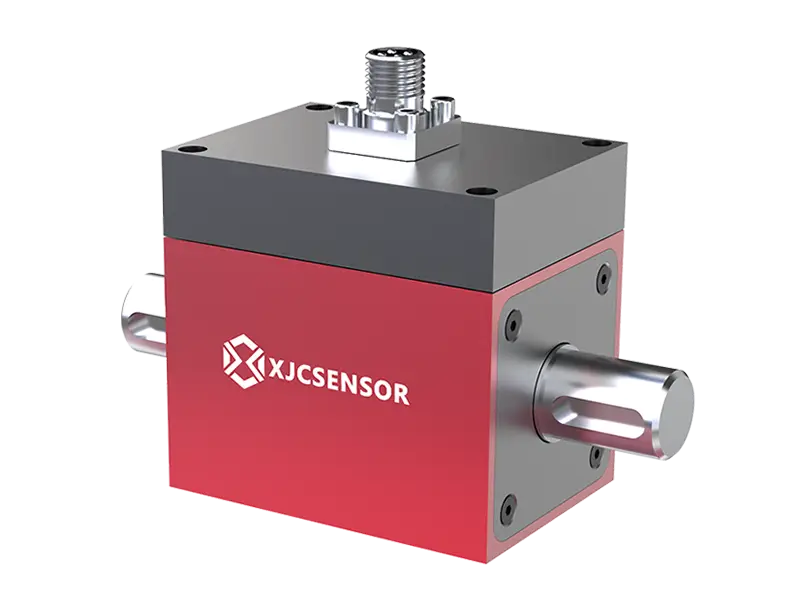

X-DT-2002	Dynamic Torque Sensor	Dynamic	5-100N.m	5000r/min	130mm	73mm	view more

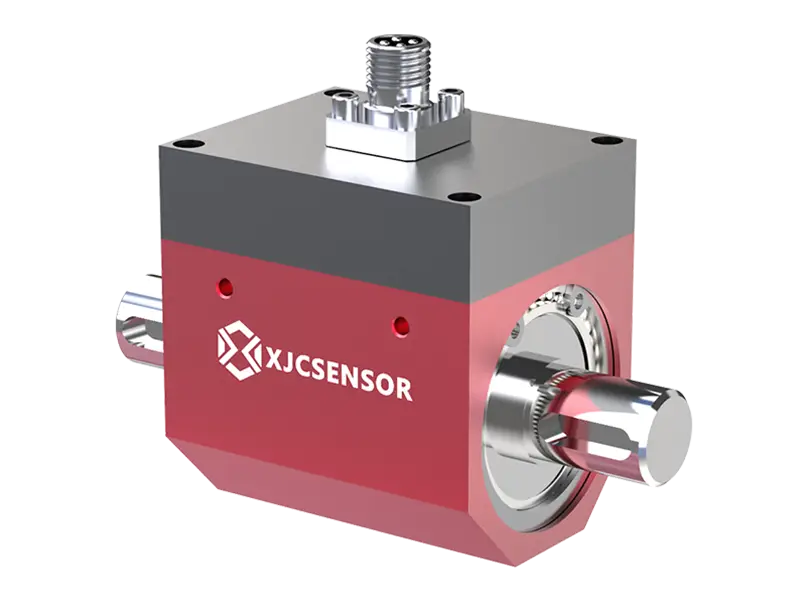

X-DT-2001	Dynamic Torque Sensor	Dynamic	0.05-0.2N.m, 0.5-2N.m, 5-100N.m	5000r/min	Multiple	Multiple	view more
X-DT-1002	Dynamic Torque Sensor	Dynamic	0.1-0.5N.m, 1-2N.m, 5-10N.m, 20-100N.m, 200-500N.m	500r/min	Multiple	Multiple	view more
X-DT-1001	Dynamic Torque Sensor	Dynamic	10kg, 20kg, 50kg, 100kg, 200kg	200r/min	30mm	100mm	view more
