Dynamic Torque Sensor X-DT-2002
Feature
- With reset function and speed measurement function.
- Output positive and negative torque signals. Various communication methods are available.
- Non-contact structure, no wear.
- Up to 5000r/min can be customized.
- High torsional rigidity and strong overload protection capacity.
- High precision with the principle of resistance strain type.
- Good temperature characteristics with self-compensated strain gauge.
- High sampling frequency, Quick response, Strong antiinterference ability.
contact us
Technical Parameter
Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Output signal | (M-)-10V-0-10V (M+)/RS485 | Max rotate speed | 5000r/min |
| Nonlinearity | ≤0.2% F.S. | Repeatability | ≤0.1% F.S. |
| Zero balance | ±2%F.S. | Operating temp range | -20~60℃ |
| Compensated temp range | -10~40℃ | Insulation | ≥2000MΩ/50VDC |
| Recommended excitation | 24VDC | Safe load limit | 200%F.S. |
| Temp effect on output | ≤0.2% F.S./10°℃ | Temp effect on zero | ≤0.2% F.S./10°℃ |
| Cable size | Ø5x4m | Protection class | IP64 |
| Response frequency | 100μS | Angular velocity | Pulse signal |
| Cable connection | 24V+:red; 24V-: black; Analog output+/RS485+: green; Analog output-/RS485-: white; Angular velocity 1:blue; Anular velocit 2 (90° difference from anular velocit 1): ellow; clear: brown | ||

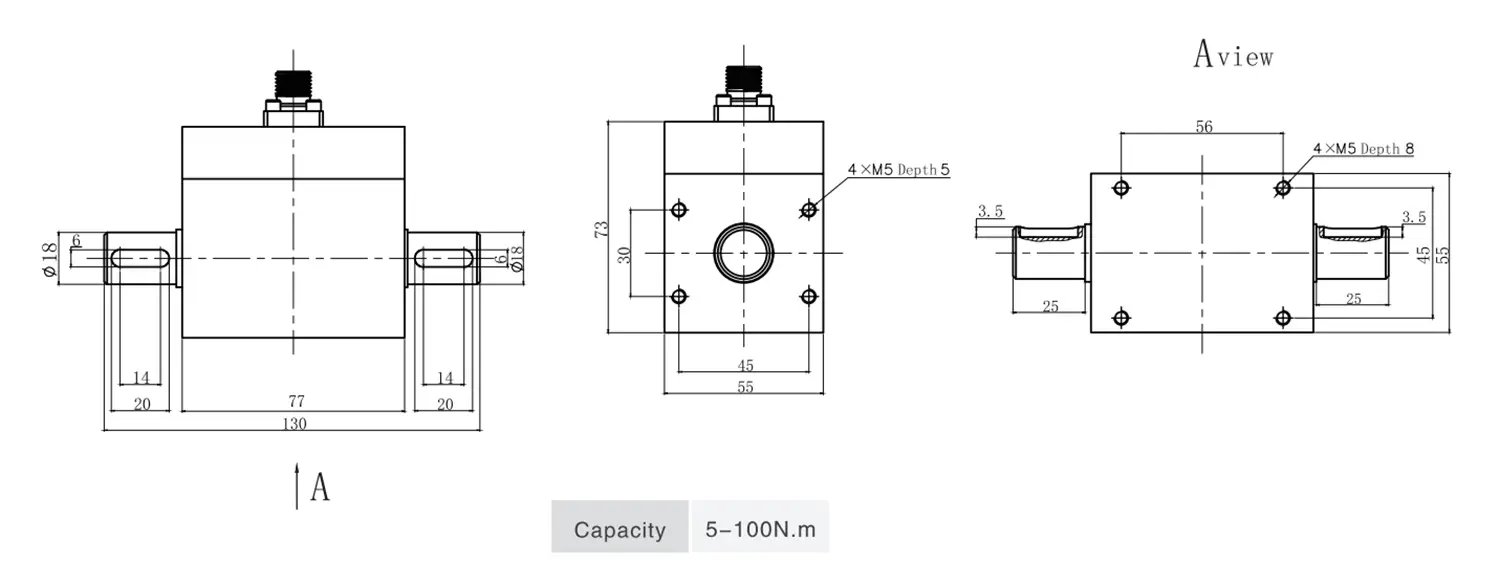

Dimension & Capacity
Application
Application in the motor, engine and other rotary power equipment detection; Torque and power detection in locomotive, automobile, aircraft, mining machinery, etc.
File Download
