6-axis Force Sensor X-6A-D70-H25
Feature
- Quick response.
- High precision with the principle of resistance strain type.
- Compensated strain gauge.
- Decoupled structure, tiny long-term crosstalk error.
contact us
Technical Parameter
Dimension & Capacity
File Download
Related Blogs
Technical Parameter
| Nonlinearity | ≤0.5%F.S. | Repeatability | ≤0.1%F.S. |
| Zero balance | ± 5% F.S. | Operating temp range | -20~80℃ |
Recommended exctation Protection class | 48VDC IP63 | Insulation Safe load limit | ≥2000MΩ/50VDC 300%F.S. |
| Long-term crosstalk error | ≤3%F.S.(After decoupling) | Cable size | Ø3x7m |

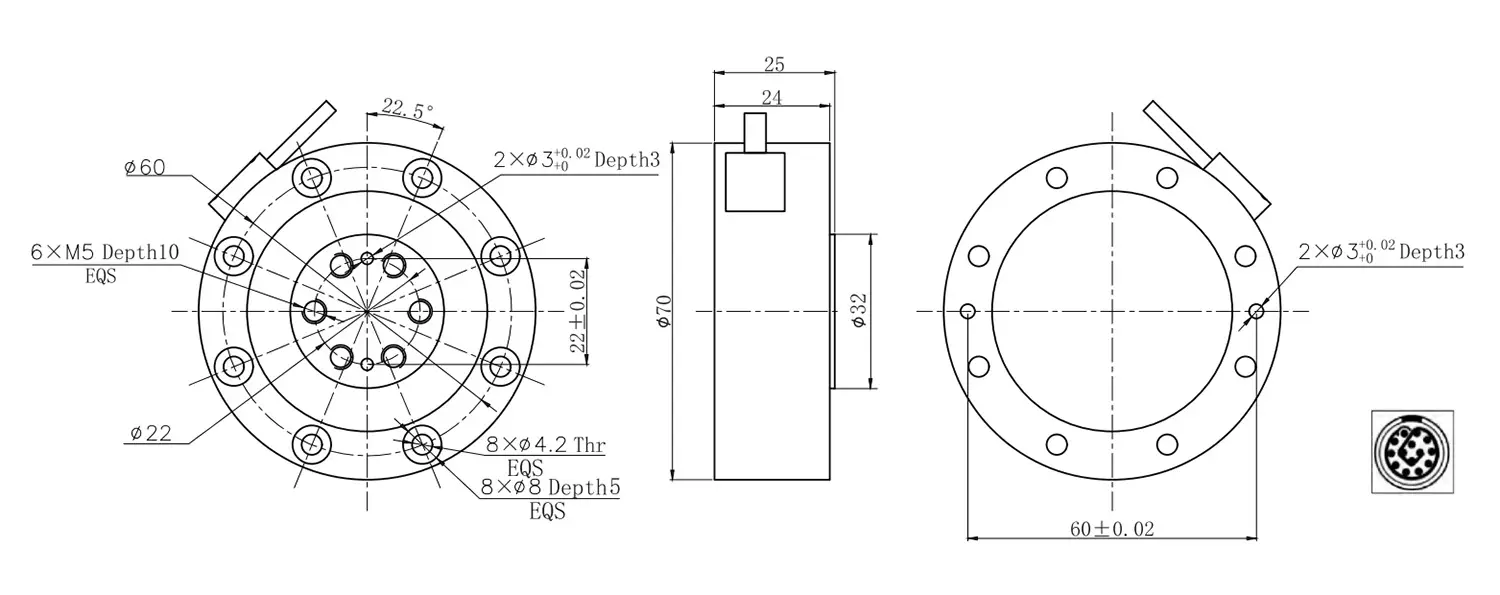

Dimension & Capacity
| Capacity | Fx | Fy | Fz | Mx | My | Mz | Material |
| 5000N | 5000N | 5000N | 200N.m | 200N.m | 200N.m | Stainless Steel | |
| Rated output | RS485 | ||||||
| Red | 48V+ | Black | GND |
| Green | RS485A+ | White | RS485B- |
