Displacement Sensor X-E102
Feature
- Built-in multi-stage amplification chip, independent power supply for sensor.
- Multiple sensitivity input, and switchable.
- High speed, high transmission speed, and high dynamic response frequency.
- Good long-term stability, good anti-interference performance.
contact us
Technical Parameter
Dimension & Capacity
Ordering Guide
File Download
Related Blogs
Technical Parameter
| Power source | 5VDC | Material | Metal |
| Recommended Excitation | 24VDC | Rated input | 0.5-14mV/V |
| Non-linearity | 0.1%-0.05% F.S. | Resolution | 1/50000 |
| Hysteresis | 0.1%-0.05% F.S. | Sampling rate | 10,9.6k,19.2k |
| Repeatability | 0.1%-0.05% F.S. | Operating temp range | -10 ℃ to 50 ℃ humidity below 85% RH |
| Zero Balance | ± 2%F.S. | Display accuracy | -199,999-999,999 |
| Power | Around 5 W | Communication interface | Real time Ethernet EtherCAT,RS232,RS485 |

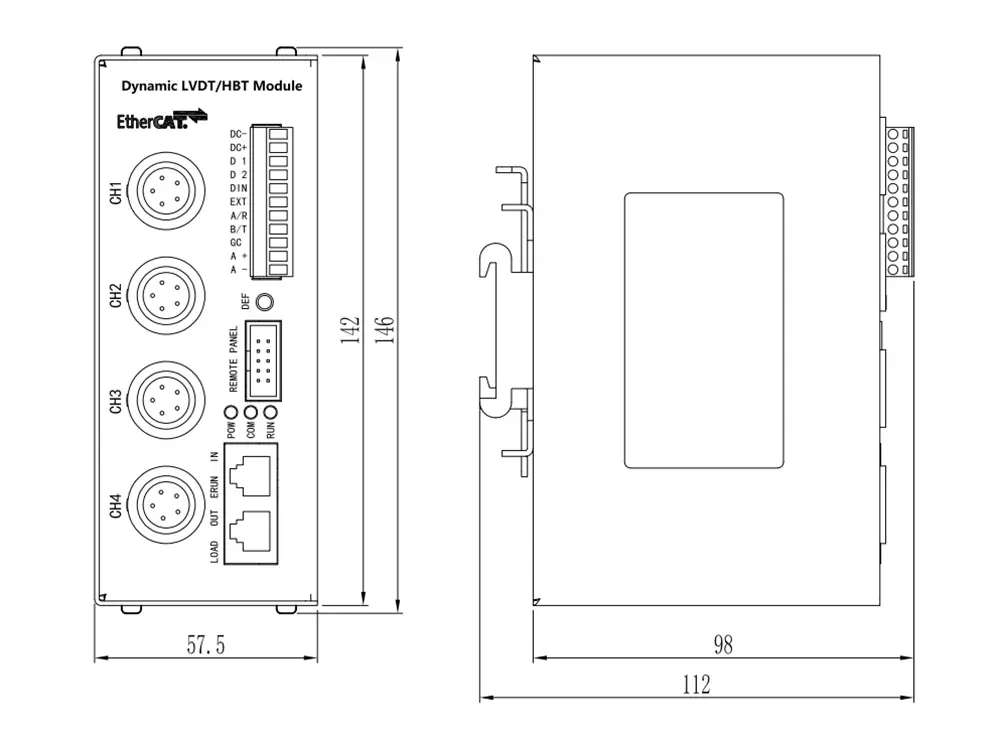

Dimension & Capacity
Ordering Guide
| MDL | Channel | Input signal | Accuracy | Power supply | Transmitting out |
| X-E102 | T1:1 Channel T2:2 Channel T4:4 Channel T5:5 Channel | W:Displacement signal | B:0.05%D:0.1%-0.5% | D: 24VDC | R2: RS232 R4: RS485 Y:Real time EthernetEtherCAT |
