Pressure Sensor/Pressure Transmitter X-100CY-Q Wind Differential Pressure
Feature
- Range: 0-1kpa-600kpa.
- High performance core, Compact design.
- Multiple output signals optional.
- Field adjustable calibration.
- Superior long term stability.
contact us
Technical Parameter
Dimension & Capacity
Application
Ordering Guide
File Download
Related Blogs
Technical Parameter
| Product Performance | ||
| Long-Term Stability | ||
| Pressure | ±1%FS/year(Not cumulative) | |
| Temperature | ±05%FS,0.1℃ year(The bigger one) | |
| Accuracy | ±1%FS | |
| Temp.Effect | ||
| Pressure | 1.5FS/100℃ | |
| Temperature | ≤±0.5%FS℃ Reference:22℃ | |
| Comp.Temp. | -20℃~60℃(Pressure) | |
| Working Temp. | -30℃~70℃ | |
| Zero Error | ±2%FS(Pressure) | |
| Span Error | ±2%FS(Pressure) | |
| Response Time | ≤10ms(Pressure)t09=10sec(Temperature) | |
| Physical | Fatigue Life | More than 100 million designs |
| Characteristics | ||
| Pressure Interface | See Ordering Guide | |
| Protection tube diameter | 6mm,8mm etc. | |
| Electrical Interface | See Ordering Guide | |
| Shell Protection | IP65 | |
| Shock | EC 68-2-32procedure I | |
| Vibration | 40g,20-2000Hz | |
| Weight | About250g | |
| Environmental Data | ||
| Certification | CE,RoHS | |
| Voltage Output | ||
| Output (3-wire)Power Supply | Min OV to max 10V | |
| Over full range output 4V, max 30Vdc | ||
| Current Output | ||
| Output (2-wire)Power Supply | 4-20mA,4-20mA+HART 2-wire | |
| 10-30Vdc | ||

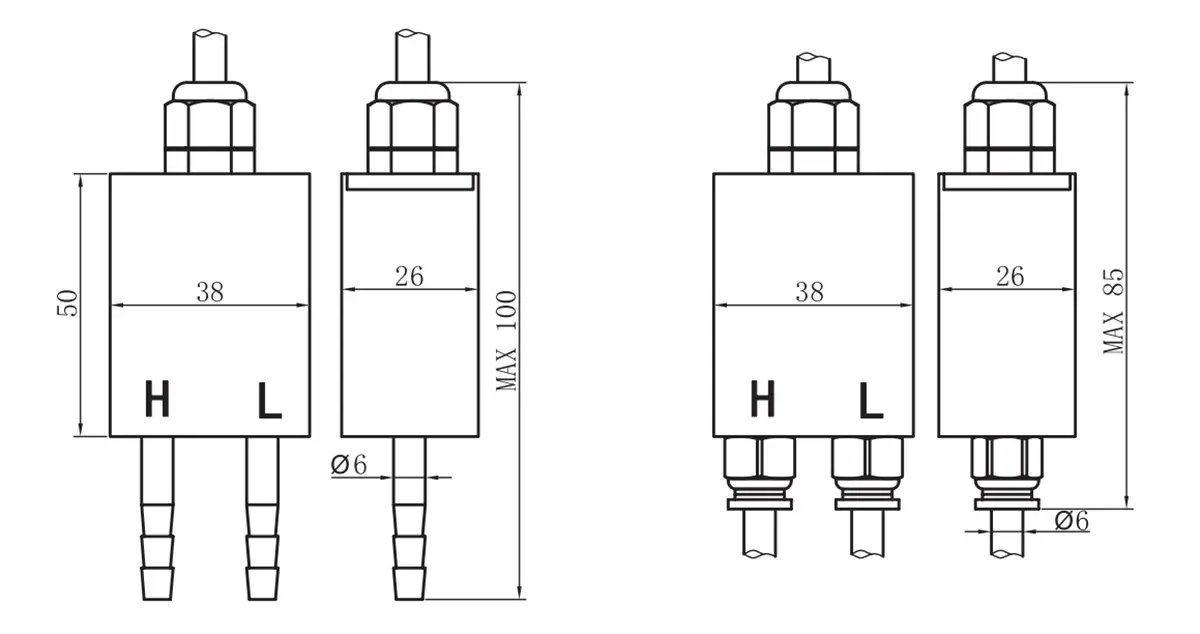

Dimension & Capacity
Application
It is used in the process control fields of power and coal industries such as boiler air supply and underground ventilation.
Ordering Guide
Model: X-100CY-Q-①②③④⑤
| ① | ② | ③ | ④ | ⑤ | |
| Attention | Range | Process connection | Output | Electrical connection | Accuracy |
1. Direct lead with 1 m cable 2. With"*",please contact thetechnician | Range K=kPa B=bar M=MPa | 6=Φ6mm Pagoda mouth 8=Φ8mm Pagoda mouth XX*=Other* | 4A=4~20mA 4AX= 4-20mA+LCD With Display 10V=0~10V | xE= Direct lead x meter | =±0.5 %FS 2=±0.25 %FS |
