Tension and Compression Load Cell X-S03-A
Feature
- Adopts high-precision resistance strain principle.
- Supports force measurement in the range of 0-50kg.
- S structural design, compression and tension, easy to install and flexible.
- High precision and high stability.
contact us
Technical Parameter

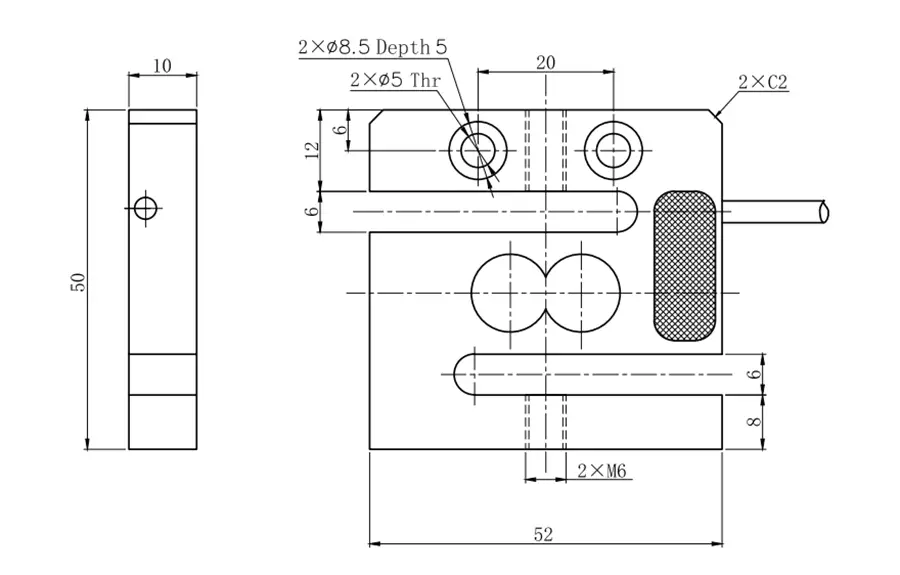

Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Capacity (Optional) | 5kg,10kg,20kg,50kg | Material | Aluminum alloyAlloy steel |
| Nonlinearity | ≤0.05% F.S. | Rated output | 2.0±0.2mV/V |
| Recommended excitation | 5-10VDC | Maximum excitation | 10V DC |
| Protection class | IP54 | Compensated temp range | -10~40℃ |
| Hysteresis | ≤0.05% F.S. | Operating temp range | -20~80℃ |
| Repeatability | ≤0.03% F.S. | Insulation | ≥5000MΩ/100VDC |
| Input impedance | 400±50Ω | Output impedance | 350±10Ω |
| Creep (30min) | ≤ 0.05% F.S. | Temp effect on output | ≤0.05% F.S./10℃ |
| Zero balance | ± 2% F.S. | Temp effect on zero | ≤0.05%F.S./10℃ |
| Safe load limit | 150%F.S. | Ultimate load limit | 200%F.S. |
| Cable size | Ø3x4m | Fatigue life | Full scale more than 1 million times |
| Cable connection | Ex+:Red; Ex-: Black; Sig+: Green; Sig-:White | ||
Dimension & Capacity
Application
Mainly applied in tension and compression testing instruments and automatic equipment s fields, such as small range of force testing instruments, hopper scales, insertion force test instruments, welding machine, hot and cold laminations machine, feeling test er for keyboard switch, and etc.
