Tension and Compression Load Cell X-L08
Feature
- X-S08 adopts high-precision resistance strain principle.
- Supports force measurement in the range of 0-30ton.
- Oil, water, corrosion resistance.
- Wheel-shape, beautiful appearance.
- High dynamic response frequency.
contact us
Technical Parameter
Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Capacity(Optional) | 50kg, 100kg, 200kg, 500kg, 1t, 2t, 5t, 7t, 10t, 20t, 30t | Material | Alloy steelStainless steel |
| Nonlinearity | ≤0.1%F.S. | Rated output | 2.0±0.2mV/V |
| Recommended excitation | 5-10VDC | Maximum excitation | 10V DC |
| Protection class | IP66 | Compensated temp range | -10~40℃ |
| Hysteresis | ≤0.05% F.S. | Operating temp range | -20~80℃ |
| Repeatability | ≤0.05% F.S. | Insulation | ≥5000MΩ/100VDC |
| Input impedance | 750±50Ω | Output impedance | 700±10Ω |
| Creep (30min) | ≤ 0.05% F.S. | Temp effect on output | ≤ 0.05% F.S./10℃ |
| Zero balance | ± 2% F.S. | Temp effect on zero | ≤0.05% F.S./10℃ |
| Safe load limit | 150%F.S. | Ultimate load limit | 200%F.S. |
| Cable size | Ø5x3m | Fatigue life | Full scale more than 1 million times |
| Cable connection | Ex+: Red; Ex-:Black; Sig+: Green; Sig-:White | ||
Dimension & Capacity

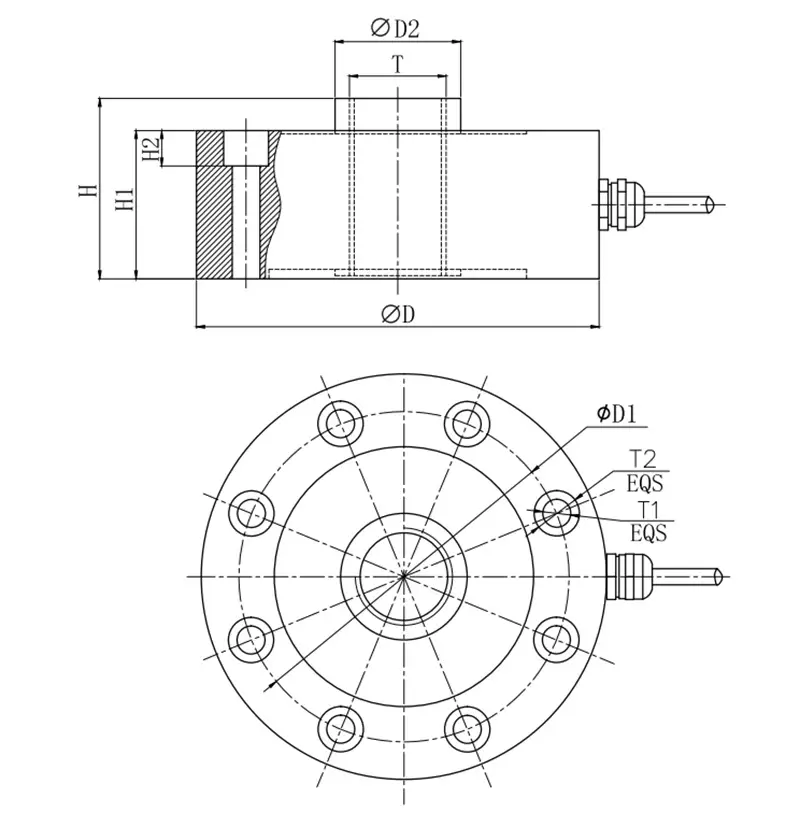

| Capacity | D | D1 | D2 | H | H1 | T | T1 | T2 | H2 |
| 50/100/200/500kg | 88 | 72 | 22 | 34 | 31 | M12*1.75 | 8*Φ7 | 8*Φ11 | 7.2 |
| 1/2/5/7t | 105 | 89 | 32 | 37 | 34 | M16*1.5 | 8*Φ7 | 8*Φ11 | 7.2 |
| 10/15/20t | 120.6 | 101.8 | 39 | 53.5 | 41 | M32*1.5 | 8*Φ9 | 8*Ø1 4 | 10.5 |
| 30t | 141 | 116.8 | 50.4 | 57.2 | 50.8 | M40*1.5 | 8*Ø11 | 8*Ø1 8 | 11 |
Application
Mainly applied in tension and compression testing instruments and automatic equipments fields, such as small range of force testing instruments, hopper scales, lifting hook scales, insertion force test instruments, and etc.
