Pressure Sensor/Pressure Transmitter X-100K Samitary Type
Feature
- Range:-100kpa-0 & 0-20kpa-35bar.
- Hygienic design, complying with CIP-SIP cleaning requirements.
- Multiple Process connection optional.
- Multiple output signals optional.
- Multiple electrical connections.
- Superior long term stability, strong antinterference ability.
contact us
Technical Parameter
Dimension & Capacity
Application
Ordering Guide
File Download
Related Blogs
Technical Parameter
| Product Performance | |
| Long-Term Stability | ±0.2%FS/year(Not cumulative) |
| Accuracy | ±0.25%FS,±0.5%FS(Optional) |
| P201 Tem .Effect p | 1.5FS/100℃ |
| Comp.Temp. | -20℃~80℃ |
| Working Temp. | |
| Non-Display | -40℃~85℃ |
| LCD | -20℃~70℃ |
| Measuring Medium Temp. | |
| Filled Silicone Oil | -40℃~125℃ |
| -40℃~250℃(Adding connectors) | |
| Zero Error | ±1%FS |
| Span Error | ±1%FS |
| Response Time | ≤30ms |
| Fatigue Life | More than 100 million designs |
| Physical Characteristics | |
| Pressure Interface | See Ordering Guide |
| P201 Contact Parts | SS316L,HC,MON,PTEF |
| Electrical Interface | See Ordering Guide |
| Shell Material | SS304 |
| Shell Protection | IP65/IP67 |
| Shock | EC 68-2-27 procedure I |
| Vibration | 10g,25-2000Hz |
| Weight | About 350g |
| Environmental Data | |
| Certification | CE,RoHS |
| Voltage Output | |
| Output(3-wire) | Min OV to max 10V |
| Power Supply | Over full range output 4V, max 30Vdc |
| Current Output | |
| Output(2-wire) | 4-20mA,4-20mA+HART 2-wire |
| Power Supply | 10-30Vdc |
| Digital Output | |
| Output(4-wire) | Modbus-RTU/RS485 4-wire |
| Power Supply | 12-30Vdc |
| Range | Proof Pressure(xFS) | Burst Pressure(xFS) |
| Kpa/bar | X-100K | X-100K |
| Vacuum | 5.0xFS | 10.0xFS |
| 40~100kpa | 2.0xFS | 5.0xFS |
| 200kpa~35bar | 2.0xFS | 3.0xFS |
| Modbus-RTU | ||||||
| Type | Terminal | Current signal | Voltage signal | Voltage signal | RS485 | Cable Colour |
| M12*1 | 1 | +ve Supply | +ve Sup ply | +ve Supply | +ve Supply | Brown |
| 2 | OV C/om | -ve Output | -ve Supply | White | ||
| 3 | +ve Output | +ve Output | +ve Output | A+ | Blue | |
| 4 | -ve Supply | B- | Black | |||
| DIN | 1 | +ve Supply | +ve Supply | +ve Supply | +ve Supply | Red |
| 2 | +ve Output | +ve Output | -ve Supply | -ve Supply | Black | |
| 3 | OV Com | +ve Output | A+ | Blue | ||
| GND | -ve Output | B- | White |

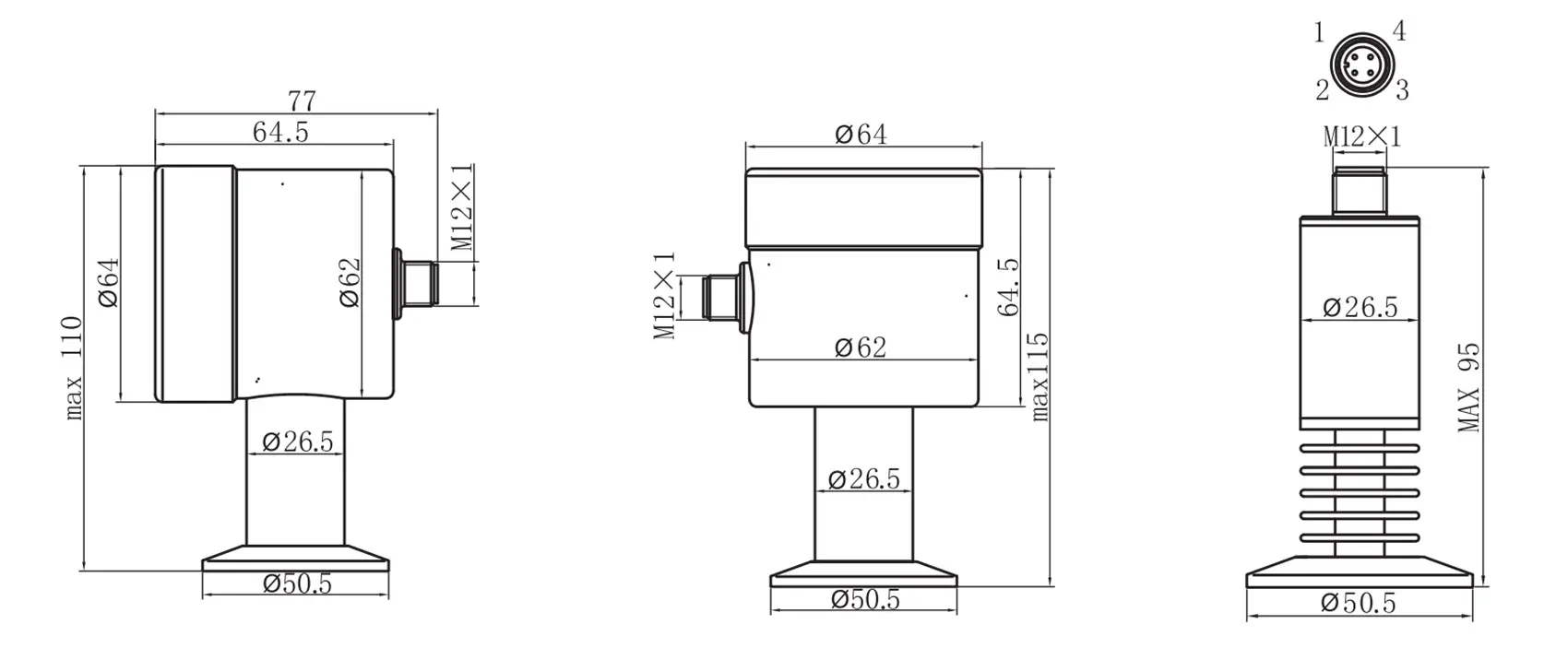

Dimension & Capacity
Application
It is used for pressure or liquid level measurement in food and drug production equipment and pipelines.
Ordering Guide
Model: X-100K-①②③④⑤⑥⑦⑧
| ① | ② | ③ | ④ | ⑤ | ⑥ | ⑦ | ⑧ | |
| Attention | Range | Process connection | Output | Electrical connection | Radiator | Process material | Accuracy | ATEX |
1. 4PIN standardized 2m cableline 2. Direct lead with 1 m cable 3. Voltage output can only beselected with 2D4PxE 4. With"*",please contact thetechnician | Range K=kPa B=barM=MPa | 1TC=1" damp 1.5TC=1.5"2TC=2"damp 25S=DN25Joint nut 32D=DN32 PN16flange | 4A=4~20mA 4AX=4-20mA+LCD /With Display 4HX=4-20mA+Hart With Display 5CX=RS485 With Display 10V=0~10V | 2D=DIN43650 Hirschmann4pinxE= Direct lead x meter 3Z=Axial Steel Shell 3J=Radial Steel Shell 8L=Aluminium shell | =135℃ No radiator5S=150℃ 5 radiators 10S=200℃ 10 radiators | =SS316L HC=Harrington alloy CMON= Monel 6L4F=SS316L PTEF/Spray PTEF | =±0.5 %FS 2=±0.25 %FS | =No explosionproof EP4=Intrinsically safetype EP6=Flameproof type |
