Piezoelectric Sensor X-YD05-B-D
Feature
- Preloading and calibration are required after installation.
- Linearity error ≤ +-1%.
- Compact design, Ultra thin thickness,极extremely rigid.
- Wide operating temperature range, High IP level, Long lifespan.
- Especially suitable for high-speed dynamic applications.
contact us
Technical Parameter
Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Capacity | 2t | Repeatability | ≤1%F.S. |
| Nonlinearity | ≤1% F.S. | Operating temp range | -20~150℃ |
| Overload capacity | ≤120%F.S. | Insulation | ≥10TΩ |
| Hysteresis | ≤1% F.S. | Temp effect on zero | ≤0.05%F.S./℃ |
| Output | ≈4.1±0.3pC/N | Protection class | IP66 |
| Material | Stainless Steel | Cable size | Ø1.9x0.3m+M5 RFconnector female |

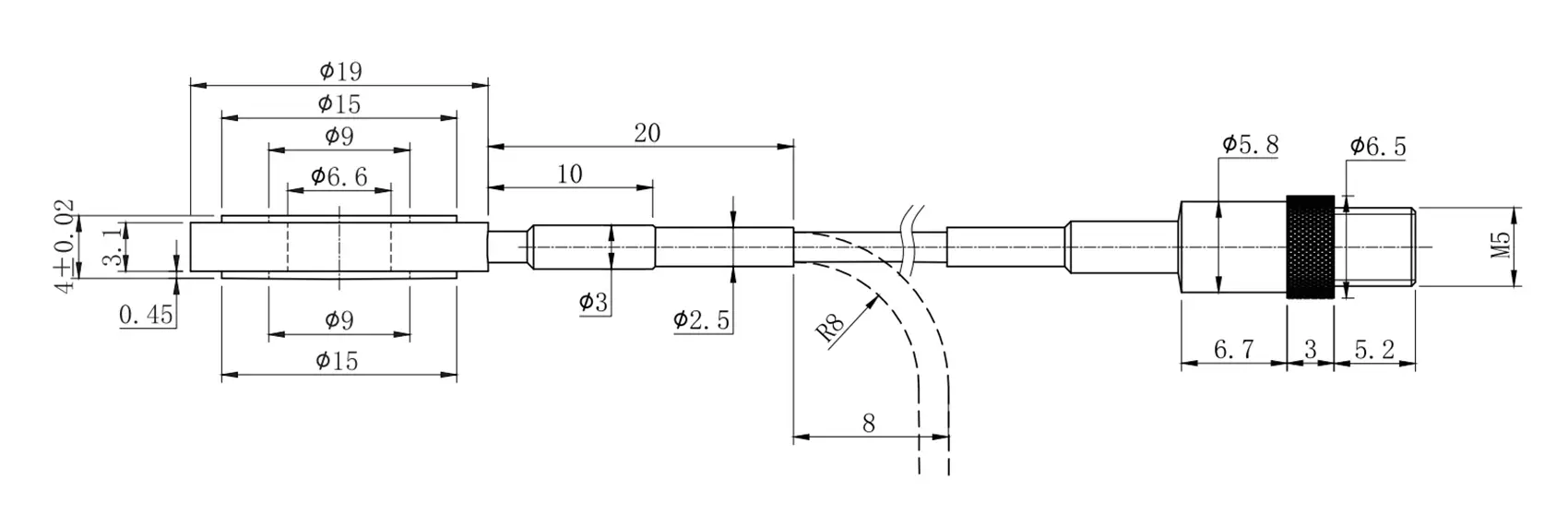

Dimension & Capacity
Application
Monitor the pressure forced during assembly. testignt. Monitor for forcing stamping and forming. Measure the large forces in force distribution.
