Load Cell Junction Box X-QY-4
Feature
- Special sealing joint is adopted.
- High stability multi-turn potentiometer is used for compensation and adjustment.
- Multiple sensor signal calculation.
- Multiple sensor cables are connected in tandem.
- Prevent the sensor from being damaged by induced lightning and surge signals.
- Electronic scale offset performance adjustment (optional bridge voltage adjustment and signal adjustment).
contact us
Technical Parameter
Dimension & Capacity
Application
Ordering Guide
File Download
Related Blogs
Technical Parameter
| Accuracy | 0.1%-0.05% F.S. | Output | MV |
| Service voltage | 12VDC 24VDC | Multiple input | MV |
| Non-linearity | 0.1%-0.05% F.S. | Compensated temp range | -10~60℃ |
| Hysteresis | 0.1%-0.05% F.S. | Operating temp range | -20~80℃ |
| Repeatability | 0.1%-0.05% F.S. | The protection grades | IP65 |
| Zero balance | ± 2% F.S. | Temp effect on zero | 0.05%F.S./10℃ |
| Cable size | Ø5x1.5m | Dynamic response | 50-200 times per second |

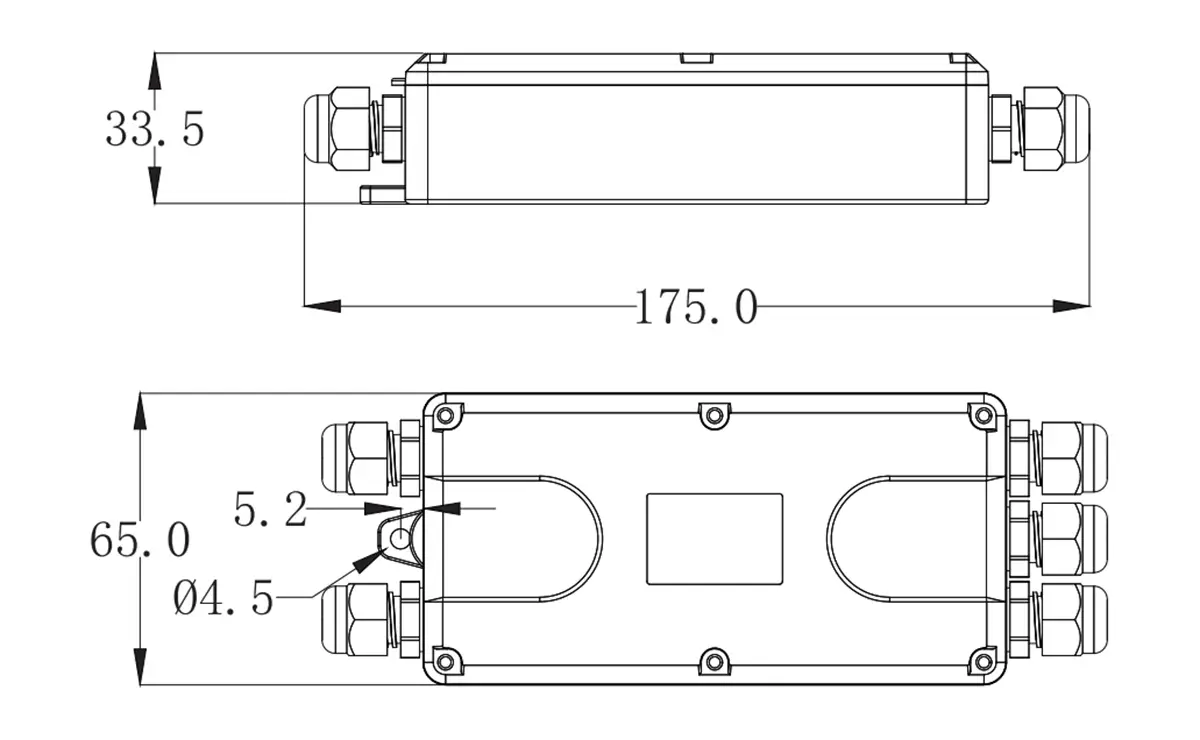

Dimension & Capacity
Application
Voltage transmitter can work together with strain gages, ceramic piezoresistive sensors, and diffused silicon piezostisive sensors which can realize the conversion and transmitting of physical quantity, such as force, pressure, weight, displacement, torque and liquid level. And the signal can be directly input in computers o measurement and control instruments.
Ordering Guide
| MDL | HZ | Input signal | Special requirements |
| X-QY-4 | 1 KHZ | V05: 0-5V V10:0-10V V+/-05:+/-5V V+/-10:+/-10V M4:4-20mA M20:0-20mA | Do not write when there is no special requirement. |
