Pressure Sensor/Pressure Transmitter X-100T
Feature
- The nozzle and the housing are made of stainless steel
- Strong corrosion resistance and good long-term stability
- Wide range of temperature compensation
- A variety of pressure interface thread forms and the connection modes
- With HART board or RS485 board
- 316 stainless steel
contact us
Technical Parameter
Dimension & Capacity
Application
Ordering Guide
File Download
Related Blogs
Technical Parameter
| Measuring Range(Optional) | -0.1~200MPa | Operating Environment | -20℃~75℃, ≤85%RH |
| Accuracy | 0.1% FS; 0.25% FS; 0.5% FS | Storage Environment | -40℃~85℃, ≤95%RH |
| Power Supply | Transducer: 5~ 10VDCTransmitter: 9~36VDC | Safe Over Load | 150% |
| Output Signal | Transducer: 1.5mV/V, 2mV/V, Transmitter: 4-20mA, 0-20mA, 0-10V, 0-5V | Ultimate overload | 200% |
| Zero Error | 0.5%FS | Temperature Shift | 0.03%FS/℃ |
| Full Scale Error | 1.0% FS | Long Stability | 0.2%FS/year |
| Compensate Temperature | -10℃~60℃ | Operating Environment | -20℃~75℃, ≤85%RH |
| Process connection | M20x1.5, M12x1, M10x1, 1/4NPT, G1/2, G1/4 or as custom | Life | Full scale more than 1 million times |
| Applications | Process control system, liquid level measurement, gas compressors, lubrication systems, natural gasproduction, chemical processing, waste water treatment, pulp & paper processing, oil production, | ||

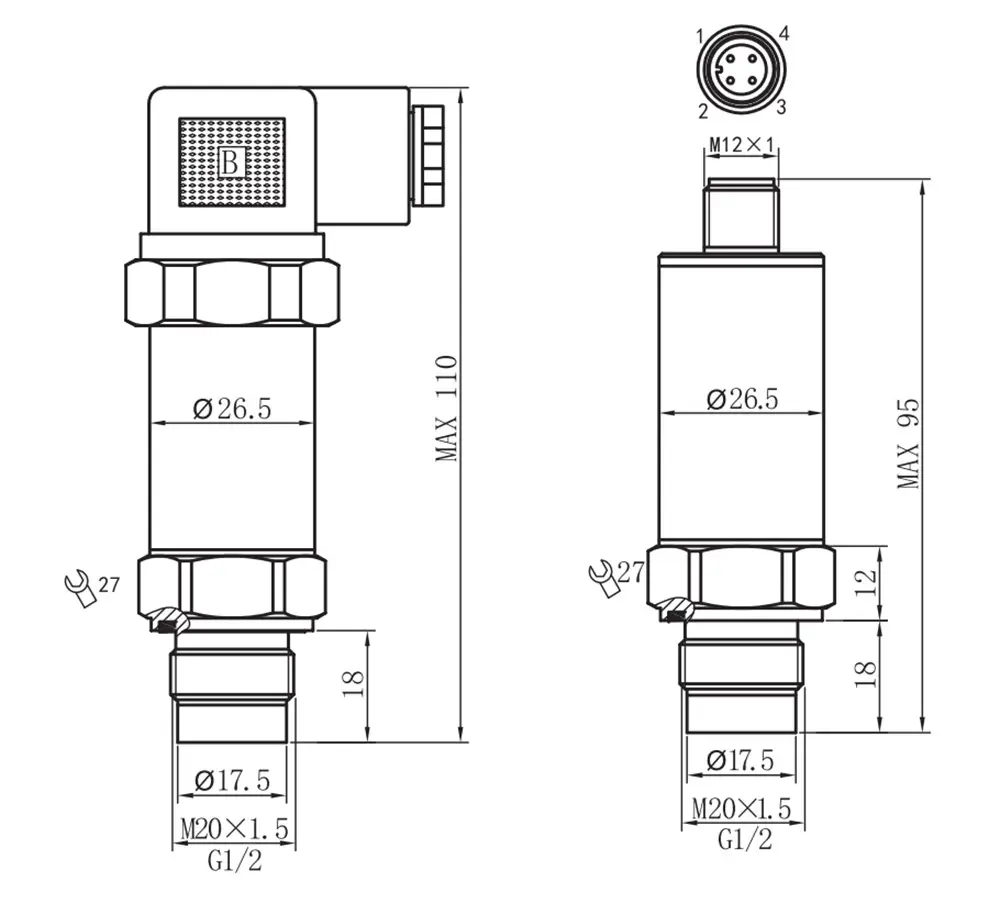

Dimension & Capacity
Application
Process control system, liquid level measurement, gas compressors, lubrication systems, natural gas production, chemical processing, waste water treatment, pulp & paper processing, oil production, recovery and others.
Ordering Guide
Model: X-100T-①②③④⑤⑥
| ① | ② | ③ | ④ | ⑤ | ⑥ | |
| Attention | Range | Process connection | Output | Electrical connection | Radiator | Accuracy |
1. 4PIN Standardized 2m Cable Line 2. Direct lead with 1 m cable 3. Voltage output is not optional with 8L 4. Can only be selected with 2D8L 5. With"*",please contact the technician | Range K=kPa B=barM=MPa | 2G*=G1/4 * 4G=G1/2 6G=G3/4 8G=G1"" 20M=M20x1.5XX*=Other * | 4A=4~20mA 4AX=4-20mA+LCDWith Display 10V=0~10V | 2D=DIN43650 Hirschmann 4P=4pin xE=Direct lead x meter 8L=2088 Aluminium shell | =135℃ No radiator 5S=150℃ 5 radiators 10S=200℃ 10 radiators | =±0.5%FS 2=±0.25%FS |
