Dynamometer X-H100F
Feature
- Built-in multi-stage amplification chip, independent power supply for sensor.
- Multiple sensitivity input, and switchable.
- High speed, high transmission speed, and high dynamic response frequency.
- Good long-term stability, good anti-interference performance.
- Multipoint calibration function.
- Auto/ manual calibration two modes.
contact us
Technical Parameter
Dimension & Capacity
Application
Ordering Guide
File Download
Related Blogs
Technical Parameter
| Power source | 5VDC | Output | RS485 |
| Display usage | LCD touch screen | Maximum Excitation | 5.5VDC |
| Max channels | 6 Channels | Resolution | 1/50000 |
| Non-linearity (static) | 0.01% | Sampling Rate | (15-1920)Hz Settable |
| Hysteresis | 0.01% | Operating Temp Range | - 10℃ to 50℃ humidity below 85% RH |
| Repeatability | 0.01% | Display Accuracy | -99999-99999 |
| Power | ≈5W | Transmission Output | RS485 |

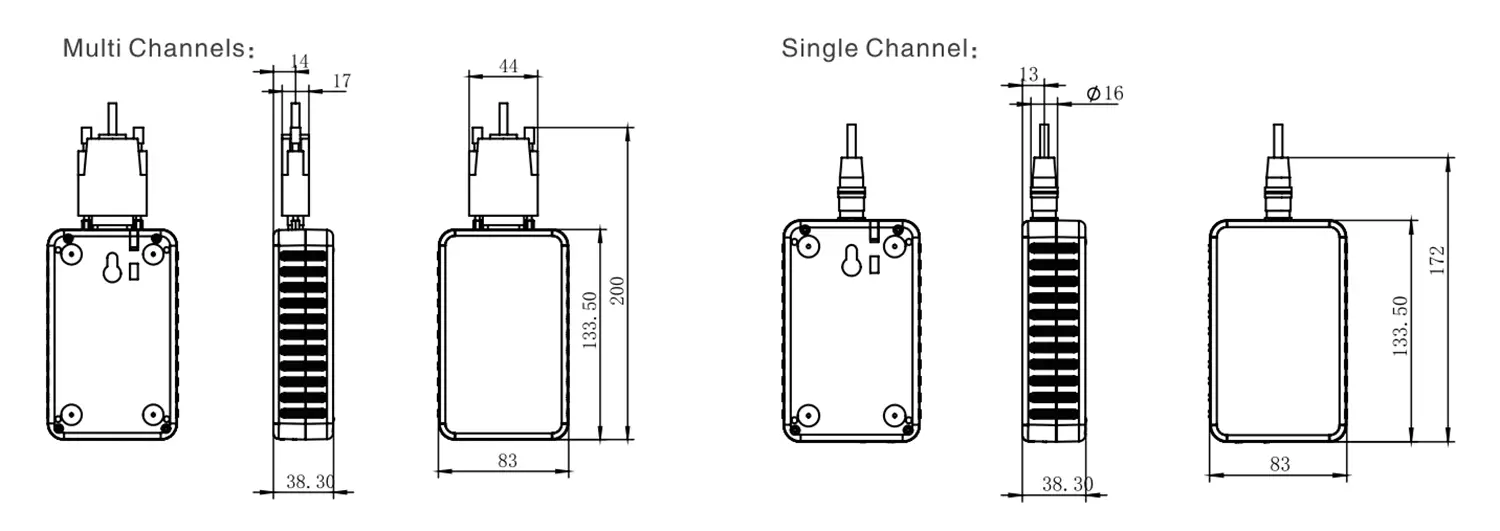

Dimension & Capacity
Application
Voltage transmitter can work together with strain gages, ceramic piezoresistive sensors, and diffused silicon piezostisive sensors which can realize the conversion and transmitting of physical quantity, such as force, pressure, weight, displacement, torque and liquid level. And the signal can be directly input in computers o measurement and control instruments.
Ordering Guide
| MDL | Channel | Power supply | Transmitting out | Description smart modules | Special requirements |
| X-H100F | 1:Single Channel 6:6 Channels | D:5VDC | R4: RS485 | T:TEDS (Only single channelhas this function) | Do not write when there is no special requirement |
Attention: When conducting high-speed dynamic testing, it is recommended to use battery power supply instead of using a power adapter, this can improve testing accuracy.
