Digital Module X-EC101
Feature
- Built-in multi-stage amplification chip, independent power supply for sensor.
- Temp & Weight calibration.
- Independent channel sampling and high dynamic response frequency.
- Good long-term stability, good anti-interference performance.
contact us
Technical Parameter

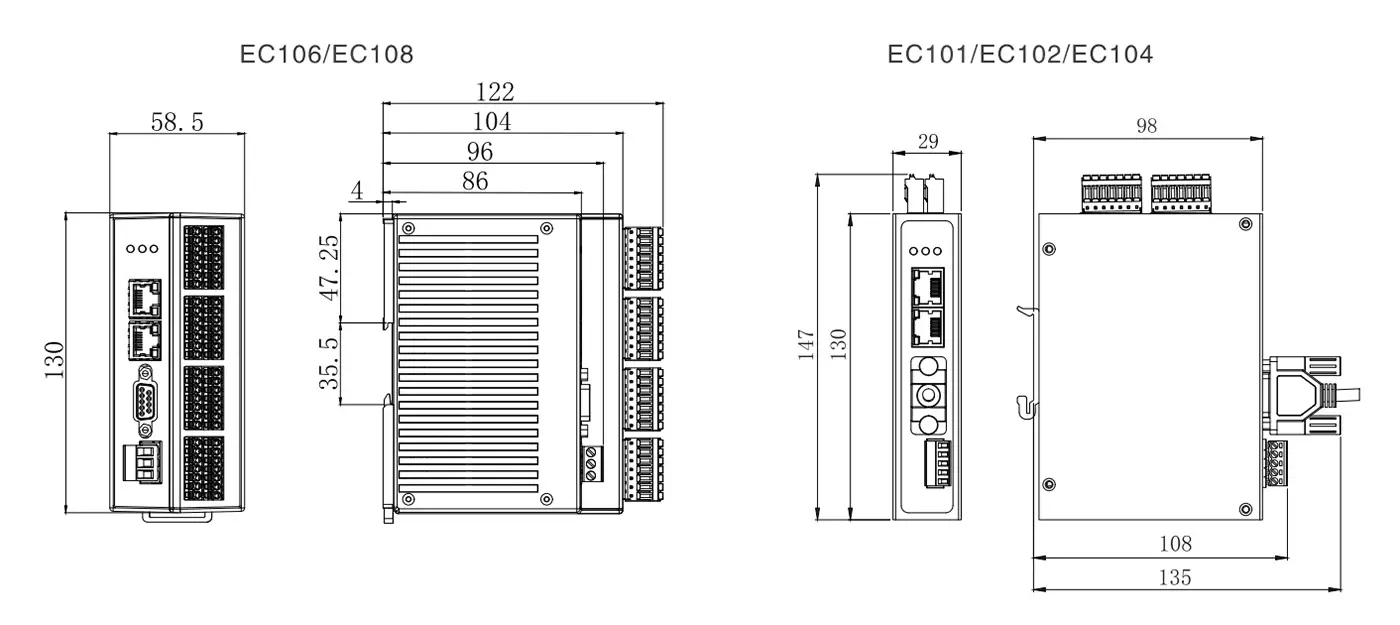

Dimension & Capacity
Application
Ordering Guide
File Download
Related Blogs
Technical Parameter
| Power source | 5VDC | Material | Engineering plastics |
| Recommended Excitatio | 24VDC | Rated input | 0.2-3.0mV/V |
| Non-linearity | 0.002% F.S. | Resolution | 1/10000 |
| Hysteresis | 0.1%-0.05%F.S. | Sampling rate | 10-4000Hz |
| Repeatability | 0.1%-0.05%F.S. | Operating temp range | - 10 ℃ to 50 ℃ humidity below 85% RH |
| Zero Balance | ±2% F.S. | Communication protocol | EtherCAT |
| Power | ≈10W | Transmission output | RS485,EtherCAT |
| Cable connection | Ex+: Red; Ex-: Black; Sig+: Green;Sig-:White | ||
Dimension & Capacity
Application
Voltage transmitter can work together with strain gages, ceramic piezoresistive sensors, and diffused silicon piezostisive sensors which can realize the conversion and transmitting of physical quantity, such as force, pressure, weight, displacement, torque and liquid level. And the signal can be directly input in computers or other measurement and control instruments.
Ordering Guide
| MDL | Input channel | Power supply | Number of channels | Description smart modules | Special requirements |
X-EC108 X-EC106 X-EC104 X-EC102 X-EC101 | M:mv | D:24VDC | CH8:8 CH6:6 CH4:4 CH2:2 CH1:1 | T:TEDS | Do not write when thereis no special requirement. |
