Digital Control Indicator X-F30
Feature
- Multiple working modes available
- High stability
- Bidirectional isolation serial port function, with RS232/RS485, easy to communication with the Host
- Calibration function without weights
contact us
Technical Parameter
Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Recommended excitation | 24VDC | Material | Plastic Housing |
| Accuracy | 0.03%F.S. | Rated input | 0.5-3.0mV/V |
| External power supply | 5VDC | Resolution | 1/50000 |
| Non-linearity | 0.03% | Sampling rate | 15~1920HZ |
| Hysteresis | 0.03% | Operating temp range | -10℃to 50℃, Humidity ≤85%RH |
| Repeatability | 0.03% | Display accuracy | 0-50000 |
| Power consumption | ≈5W | Transmitting output | RS232,RS485,RS422, 0-10V,4-20mA |
| Switch input and output | 2 Alarm out / 1 Input | Multiple function switch | Real-time,peak and valley value |
| Applications | Automobile,medical, robot, electronic, mechanical equipment, and automation equipment, etc. Mainly used for force measurement, such as stressing test, pull / compression test and fit force detection for product assembly of automobile, motorcycl, bicycle, electric motor, and motor, etc. | ||

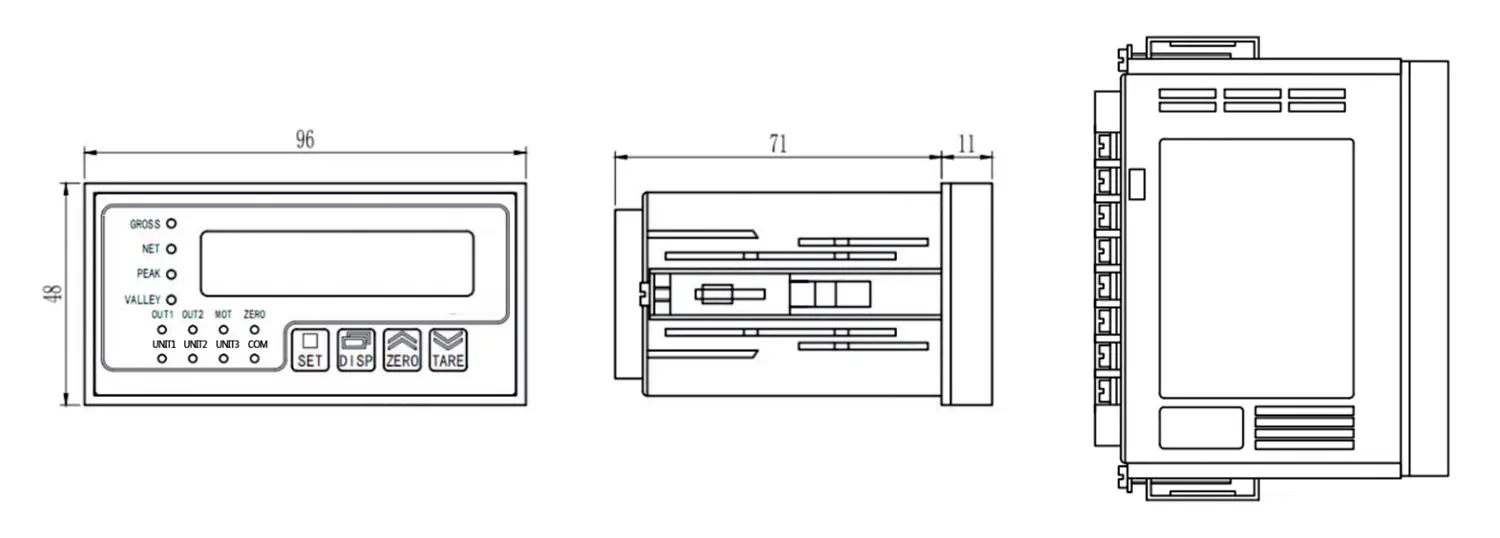

Dimension & Capacity
Application
Automobile, medical, robot, electronic, mechanical equipment, and automation equipment, etc.
Mainly used for force measurement, such as stressing test, pull/ compression test and fit force detection for product assembly of automobile, motorcycle, bicycle, electric motor, and motor, etc.
