Compression Load Cell X-X09
Feature
- Adopts high-precision resistance strain principle
- Supports force measurement in the range of 0-10ton.
- Robust pressure-bearing structure with simplified installation.
- High precision and high stability
- High response frequency
contact us
| Capacity (Optional) | 0.5t, 1t, 2t, 5t | Material | Stainless Steel Alloy Steel |
| Nonlinearity | ≤0.5% F.S. | Rated output | 2.0±0.2mV/V |
| Recommended excitation | 5-10VDC | Maximum excitation | 10V DC |
| Hysteresis | ≤0.5% F.S. | Compensated temp range | -10~40℃ |
| Repeatability | ≤0.5% F.S. | Operating temp range | -20~80℃ |
| Input impedance | 750±50Ω | Output impedance | ≥5000MΩ/100VDC |
| Creep (30min) | ≤0.2% F.S. | Insulation | 700±10Ω |
| Zero balance | ± 2% F.S. | Temp effect on output | ≤0.2% F.S./10℃ |
| Safe load limit | 120%F.S. | Temp effect on zero | ≤0.2%F.S./10℃ |
| Cable size | Ø4x4m | Ultimate load limit | 150%F.S. |
| Fatigue life | Full scale more than 1 million times | ||
| Cable connection | Ex+: Red; Ex-: Black; Sig+: Green; Sig-:White | ||
Technical Parameter

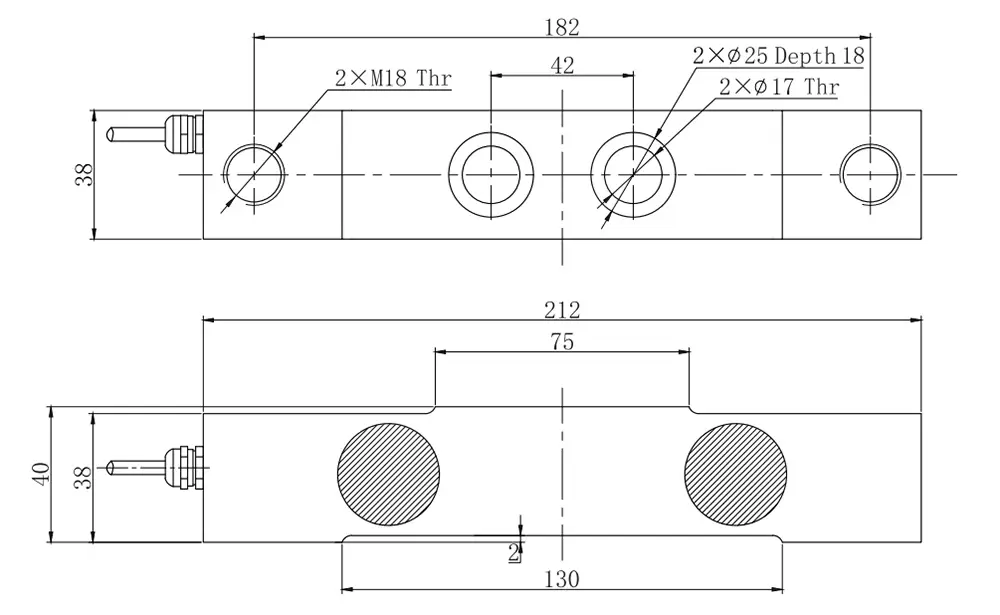

Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
Dimension & Capacity
Application
Suitable for cold & hot press machines, construction machinery, hopper scales, and platform scales, etc.
