Compression Load Cell X-X08
Feature
- Adopts high-precision resistance strain principle
- Supports force measurement in the range of 0-2ton.
- Parallel Beam structural design, robust pressure-bearing structure with simplified installation.
- High precision and high stability
- Small size, beautiful appearance
- High response frequency
contact us
| Capacity | 0.3t, 0.5t, 1t, 2t | Material | Stainless Steel Alloy Steel |
| Nonlinearity | ≤0.03% F.S. | Rated output | 2.0±0.004mV/V |
| Recommended excitation | 5-10VDC | Maximum excitation | 10V DC |
| Hysteresis | ≤0.03% F.S. | Compensated temp range | -10~40℃ |
| Repeatability | ≤0.03% F.S. | Operating temp range | -20~80℃ |
| Input impedance | 400±50Ω | Insulation | ≥5000MΩ/100VDC |
| Creep(30min) | ≤0.03% F.S. | Output impedance | 350±10Ω |
| Zero balance | ±2%F.S. | Temp effect on output | ≤0.03% F.S./10℃ |
| Safe load limit | 150%F.S. | Temp effect on zero | ≤0.03% F.S./10℃ |
| Cable size | Ø3x3m | Ultimate load limit | 200%F.S. |
| Fatigue life | Full scale more than 1 million times | ||
| Cable connection | Ex+: Red; Ex-: Black; Sig+: Green; Sig -: White | ||
Technical Parameter

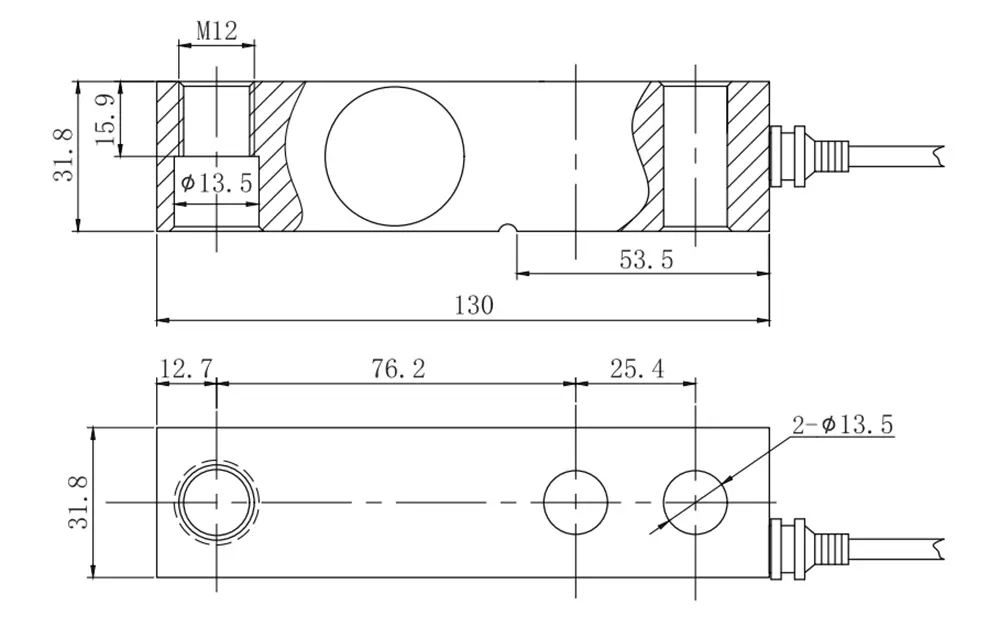

Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
Dimension & Capacity
Application
Mainly used for floor scales, platform scales, batching scales, and industrial weighing system, etc.
