Name: Compression Load Cell X-X02
Brand: XJCSENSOR
Price: 60.0 USD
Availability: InStock
Rating: 5 (19 reviews)

Compression Load Cell X-X02

Feature

Adopts high-precision resistance strain principle
Supports force measurement in the range of 0-10kg.
Parallel Beam structural design, robust pressure-bearing structure with simplified installation.
High precision and high stability
Small size, beautiful appearance
Compensated four corner error

Technical Parameter

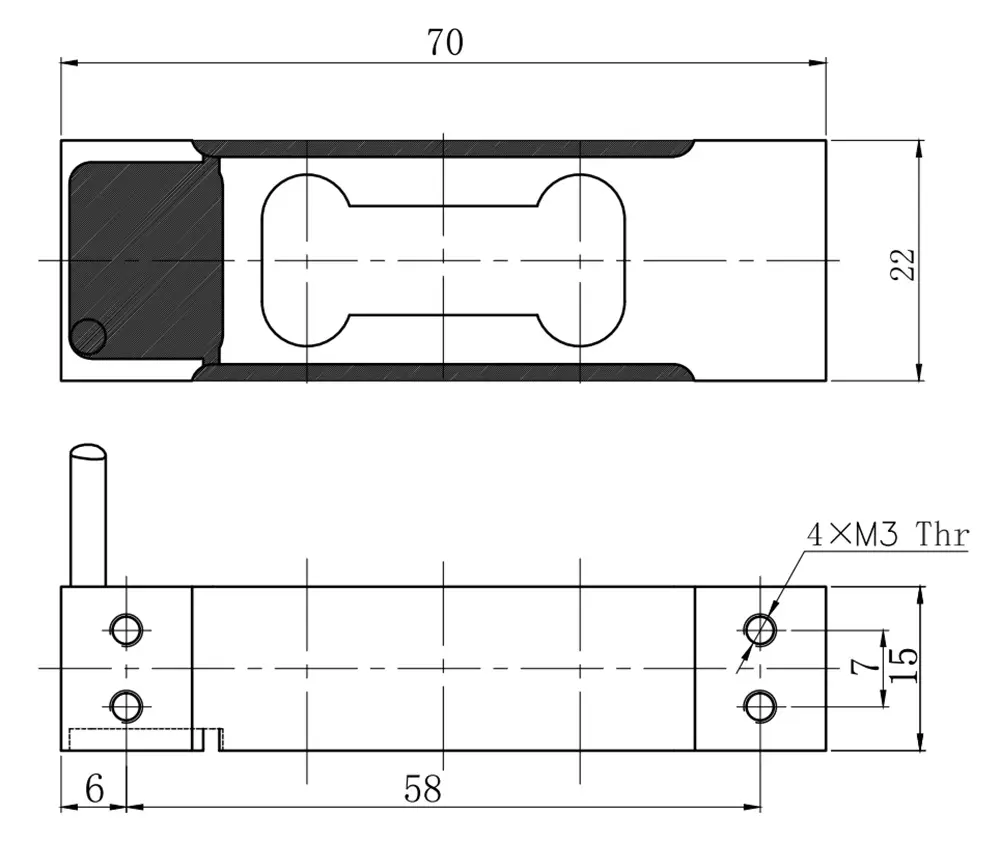

Dimension & Capacity

Application

File Download

Related Blogs

Technical Parameter

Capacity(Optional)	0.3kg, 1kg, 2kg, 3kg, 5kg, 10kg	Material	Aluminum Alloy
Nonlinearity	≤0.02% F.S.	Rated output	1.0±0.2mV/V(0.3kg)2.0±0.2mV/V(other)
Recommended excitation	5-10VDC	Maximum excitation	10V DC
Hysteresis	≤0.02% F.S.	Compensated temp range	-10~40℃
Repeatability	≤0.02% F.S.	Operating temp range	-20~60℃
Input impedance	400±50Ω	Insulation	≥2000MΩ/50VDC
Creep(30min)	≤0.02% F.S.	Output impedance	350±5Ω
Zero balance	±0.04mV/V	Temp effect on output	≤0.02%F.S./10℃
Safe load limit	120%F.S.	Temp effect on zero	≤0.02% F.S./10℃
Cable size	Ø3x0.45m	Ultimate load limit	150%F.S.
Recommended Platform Size	200x200mm	Fatigue life	Full scale more than 1 million times
Cable connection	Ex+:Red; Ex-: Black; Sig+:Green; Sig-:White
