Compression Load Cell X-L11-D70
Feature
- Adpts high-precision resistance strain principle.
- Supports force measurement in the range of 0-2ton.
- Stainless steel material with sealed welding, oil, water, corrosion resistance.
- Robust pressure-bearing structure with simplified installation.
- High response frequency.
contact us
Technical Parameter

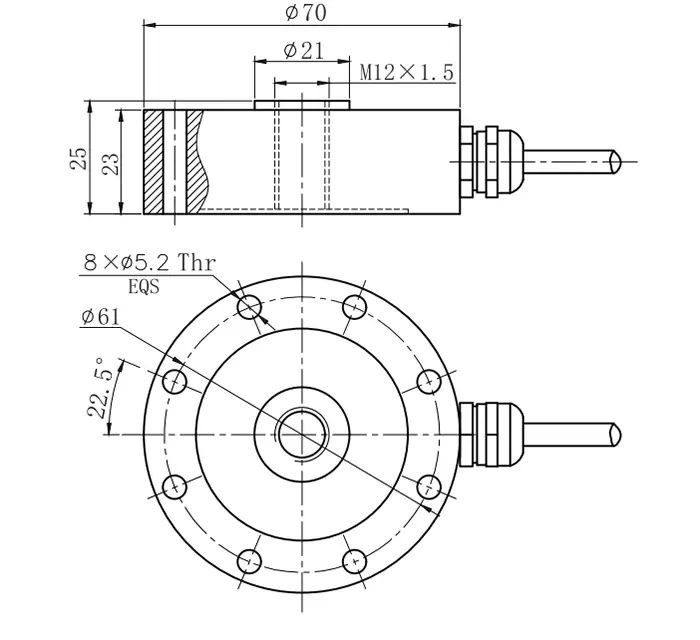

Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Capacity (Optional) | 50kg,100kg,200kg,500kg,1t,2t | Material | Alloy Steel |
| Nonlinearity | ≤0.3% F.S. | Rated output | 2.0±0.2mV/V |
| Recommended excitation | 5-10VDC | Maximum excitation | 10V DC |
| Protection class | IP64 | Compensated temp range | -10~40℃ |
| Hysteresis | ≤0.5% F.S. | Operating temp range | -20~80℃ |
| Repeatability | ≤0.1%F.S. | Insulation | ≥5000MΩ/100VDC |
| Input impedance | 380±30Ω(750±50Ω) | Output impedance | 350±10Ω(700±10Ω) |
| Creep(30min) | ≤ 0.1% F.S. | Temp effect on output | ≤0.1%F.S./10℃ |
| Zero balance | ±2% F.S. | Temp effect on zero | ≤0.1%F.S./10℃ |
| Safe load limit | 150%F.S. | Ultimate load limit | 200%F.S. |
| Cable size | Ø4x4m | Fatigue life | Full scale more than 1 million times |
| Cable connection | Ex+:Red; Ex-: Black; Sig+: Green; Sig-:White | ||
Dimension & Capacity
Application
Automotive, medical, electronic, mechanical equipment, automation equipment, etc.
Force measurement in small space installation, suchs feeling tester for keyboard switch, compression force measurement for hot and cold I amination machine, and grasping force measurement for dexterous hands.
