Compression Load Cell X-CS10-2M-H12-KL
Feature
- Adopts high-precision resistance strain principle
- Supports force measurement in the range of 0-5kg.
- Robust pressure-bearing structure with simplified installation.
- Small size, beautiful appearance
- High response frequency, high-precision.
contact us
Technical Parameter
Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Capacity(Optional) | 2kg,3kg,5kg | Material | Stainless Steel |
| Nonlinearity | ≤0.05% F.S. | Rated output | 1.0-2.2mV/V |
| Recommended excitation | 5VDC | Maximum excitation | 10V DC |
| Protection class | IP54 | Compensated temp range | -10~40℃ |
| Hysteresis | ≤0.05% F.S. | Operating temp range | -20~80℃ |
| Repeatability | ≤0.05% F.S. | Insulation | ≥5000MΩ/100VDC |
| Input impedance | 350±10Ω | Output impedance | 350±10Ω |
| Creep(30min) | ≤0.05% F.S. | Temp effect on output | ≤0.2%F.S./10℃ |
| Zero balance | ±2%F.S. | Temp effect on zero | ≤0.2% F.S./10℃ |
| Safe load limit | 150%F.S. | Ultimate load limit | 200%F.S. |
| Cable size | Ø2x4m | Fatigue life | Full scale more than 1 million times |
| Cable connection | Ex+:Red; Ex-: Black; Sig+: Green; Sig-:White | ||

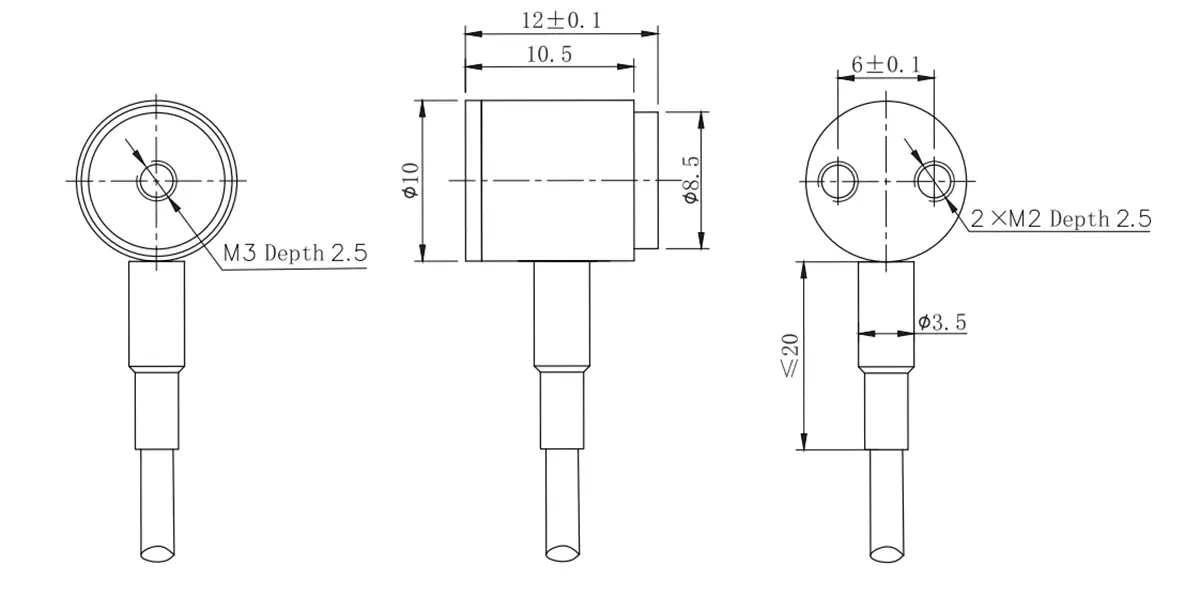

Dimension & Capacity
Application
Force measurement in small space installation, such as a feeling tester for keyboard switch, compression force measurement for hot and cold limitation machine, and grasping force measurement for dexterous hands.
