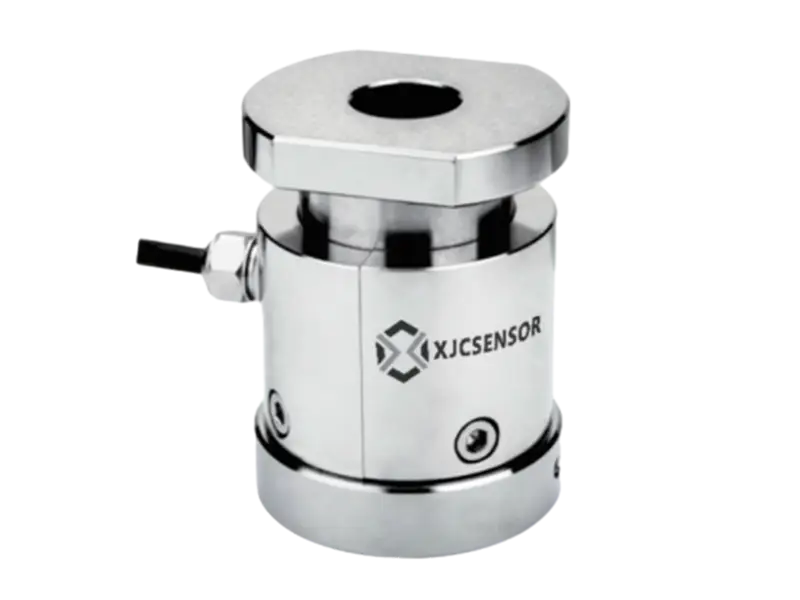

Compression Load Cell X-CS-U9
Feature
- Adopts high-precision resistance strain principle
- Supports force measurement in the range of 0-5ton.
- Oil, water, corrosion resistance
- Robust pressure-bearing structure with simplified installation.
- High response frequency
contact us
Technical Parameter

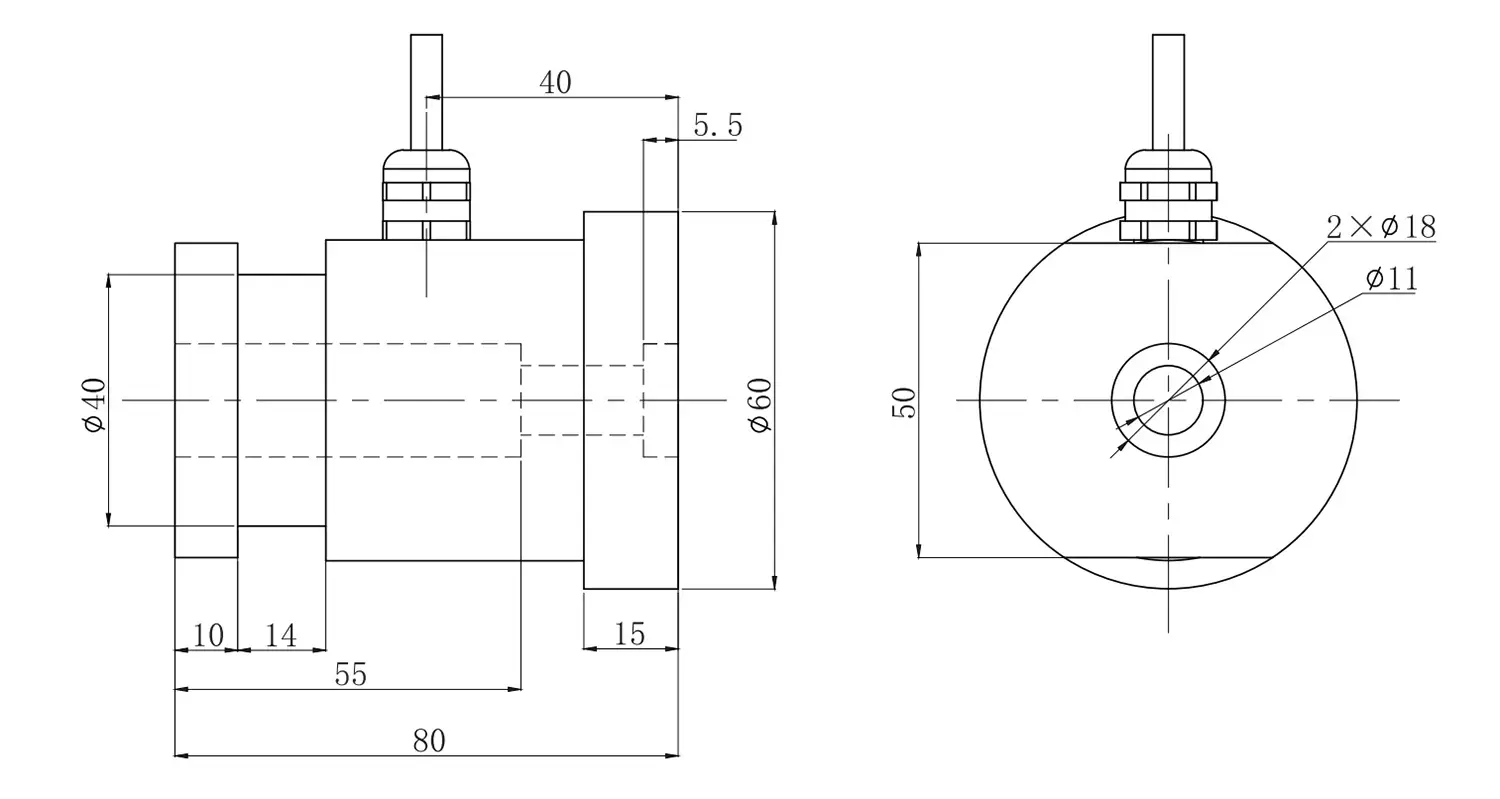

Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Capacity(Optional) | 1t,2t,5t | Material | Alloy Steel |
| Nonlinearity | ≤0.5% F.S. | Rated output | 2.0±0.2mV/V |
| Recommended excitation | 5-10VDC | Maximum excitation | 10V DC |
| Protection class | IP54 | Compensated temp range | -10~40℃ |
| Hysteresis | ≤0.5% F.S. | Operating temp range | -20~80℃ |
| Repeatability | ≤0.5% F.S. | Insulation | ≥5000MΩ/100VDC |
| Input impedance | 380±30Ω(750±50Ω) | Output impedance | 350±5Ω(700±10Ω) |
| Creep(30min) | ≤0.5% F.S. | Temp effect on output | ≤0.05% F.S./℃ |
| Zero balance | ± 2% F.S. | Temp effect on zero | ≤0.05% F.S./℃ |
| Safe load limit | 150%F.S. | Ultimate load limit | 200%F.S. |
| Cable size | Ø4x4m | Fatigue life | Full scale more than 1 million times |
| Cable connection | Ex+:Red; Ex-: Black; Sig+: Green; Sig-:White | ||
Dimension & Capacity
Application
Mainly applied in tension and compression testing instruments, automatic equipments, and testing fields, such as insertion force test instruments, welding machine, hot and cold lamination machine, feeling tester for keyboard switch, and etc.
