Compression Load Cell X-C18
Feature
- Adopts high-precision resistance strain principle
- Supports force measurement in the range of 0-5ton.
- Robust pressure-bearing structure with simplified installation.
- High quality stainless steel material
- High response frequency
contact us
Technical Parameter

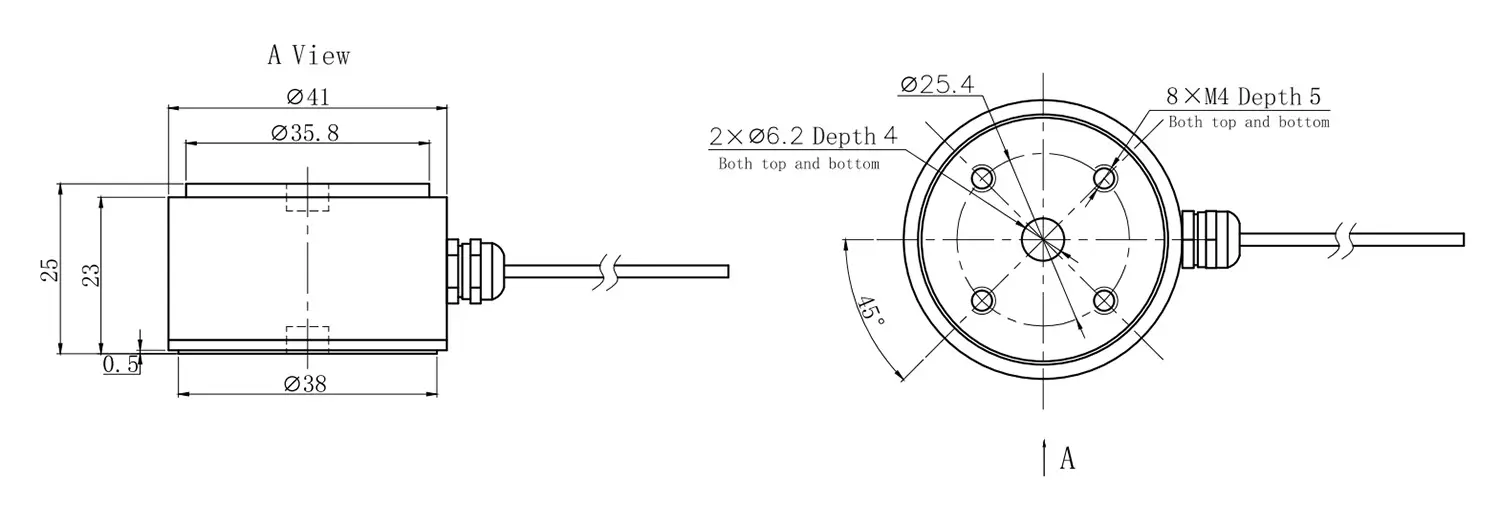

Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
| Capacity(Optional) | 5kg, 10kg, 20kg, 50kg, 100kg, 200kg, 500kg, 1t, 2t, 5t | ||
| Nonlinearity | ≤0.05% F.S.(0-50kg) ≤0.2%F.S.(100kg-2t) | Rated output | 0.8-2.5mV/V |
| Recommended excitation | 5-10VDC | Maximum excitation | 10V DC |
| Protection class | IP54 | Compensated temp range | -10~40℃ |
| Hysteresis | ≤0.05% F.S. | Operating temp range | -20~80℃ |
| Repeatability | ≤0.05% F.S. | Insulation | ≥5000MΩ/100VDC |
| Input impedance | 380±30Ω(750±50Ω) | Output impedance | 350±10Ω(700±10Ω) |
| Creep(30min) | ≤0.1% F.S. | Temp effect on output | ≤0.2%F.S./10℃ |
| Zero balance | ±2%F.S. | Temp effect on zero | ≤0.2%F.S./10℃ |
| Safe load limit | 150%F.S. | Ultimate load limit | 200%F.S. |
| Cable size | Ø3x4m | Fatigue life | Full scale more than 1 million times |
| Cable connection | Ex+:Red; Ex-: Black; Sig+: Green; Sig-: White | ||
Dimension & Capacity
Application
Automotive, medical, electronic, mechanical equipment, automation equipment, etc.
Force measurement in small space installation, such as feeling tester for keyboard switch, compression force measurement for hot and cold, and amination machine, and grasping force measurement for dexterous hands.
