Compression Load Cell X-BW23
Feature
- High-precision resistance strain principle
- Supports force measurement in the range of 0-500kg.
- Stainless steel, sealed welding, oil, water, corrosion resistance
- Robust pressure-bearing structure with simplified installation.
- High response frequency
contact us
| Capacity(Optional) | 5kg,10kg,20kg,50kg,100kg,200kg,300kg,500kg | ||
| Nonlinearity | ≤0.03% F.S. | Rated output | 2.0±0.004mV/V |
| Recommended excitation | 5-10VDC | Maximum excitation | 10V DC |
| Protection class | IP67 | Compensated temp range | -10~40℃ |
| Hysteresis | ≤0.03% F.S. | Operating temp range | -20~80℃ |
| Repeatability | ≤0.03% F.S. | Insulation | ≥5000MΩ/100VDC |
| Input impedance | 400±50Ω | Output impedance | 350±10Ω |
| Creep(30min) | ≤0.03%F.S. | Temp effect on output | ≤0.03%F.S./10℃ |
| Zero balance | ± 2% F.S. | Temp effect on zero | ≤0.03%F.S./10℃ |
| Safe load limit | 150%F.S. | Ultimate load limit | 200%F.S. |
| Cable size | Φ5x3m | Fatigue life | Full scale more than 1 million times |
| Cable connection | Ex+: Blue; Ex-: Black; Sig+ :White; Sig-:Red; Sen+: Green;Sen-:Grey | ||
Technical Parameter

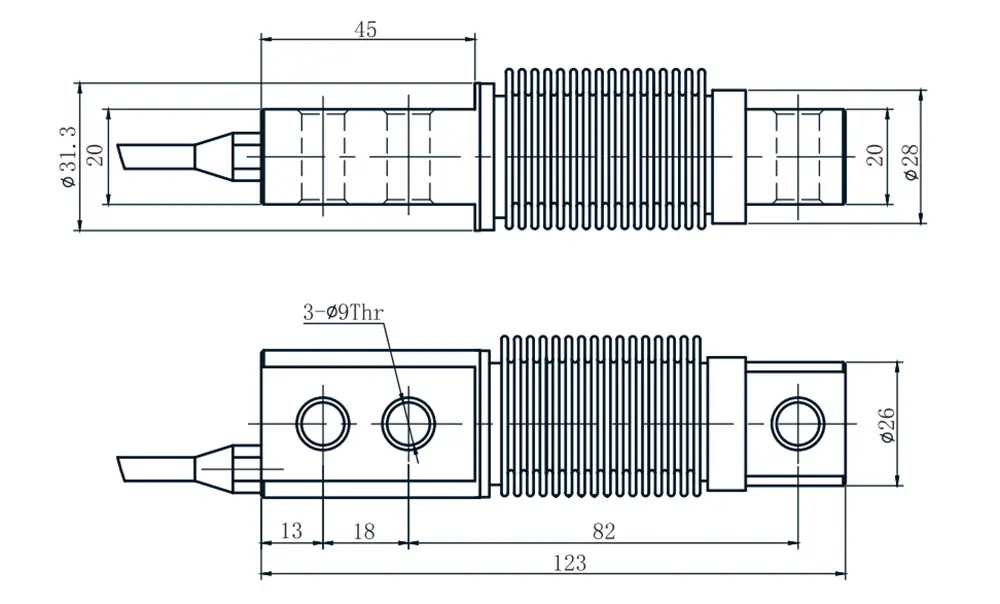

Dimension & Capacity
Application
File Download
Related Blogs
Technical Parameter
Dimension & Capacity
Application
Mainly used for packing scales, hopper scale and industrial measuring system.
