Compression Load Cell X-B78
Feature
- Adopts high-precision resistance strain principle
- Supports force measurement in the range of 0-20ton.
- Robust pressure-bearing structure with simplified installation.
- High precision and high stability
- High response frequency
contact us
| Capacity(Optional) | 20t | Material | Alloy Steel |
| Nonlinearity | ≤0.5% F.S. | Rated output | 0.8-1.2mV/V |
| Recommended excitation | 5-10VDC | Maximum excitation | 10VDC |
| Protection class | IP64 | Compensated temp range | -10~40℃ |
| Hysteresis | ≤0.5%F.S. | Operating temp range | -20~80℃ |
| Repeatability | ≤0.2%F.S. | Insulation | ≥5000MΩ/100VDC |
| Creep(30min) | ≤0.1%F.S. | Temp effect on output | ≤0.2%F.S./10℃ |
| Zero balance | ±2%F.S. | Temp effect on zero | ≤0.2%F.S./10℃ |
| Safe load limit | 120%F.S. | Ultimate load limit | 150%F.S. |
| Cable size | Ø5x5m | Fatigue life | Full scale more than 1 million times |
| Cable connection | Ex+:Red; Ex-: Black; Sig+:Green; Sig-:White | ||
Technical Parameter

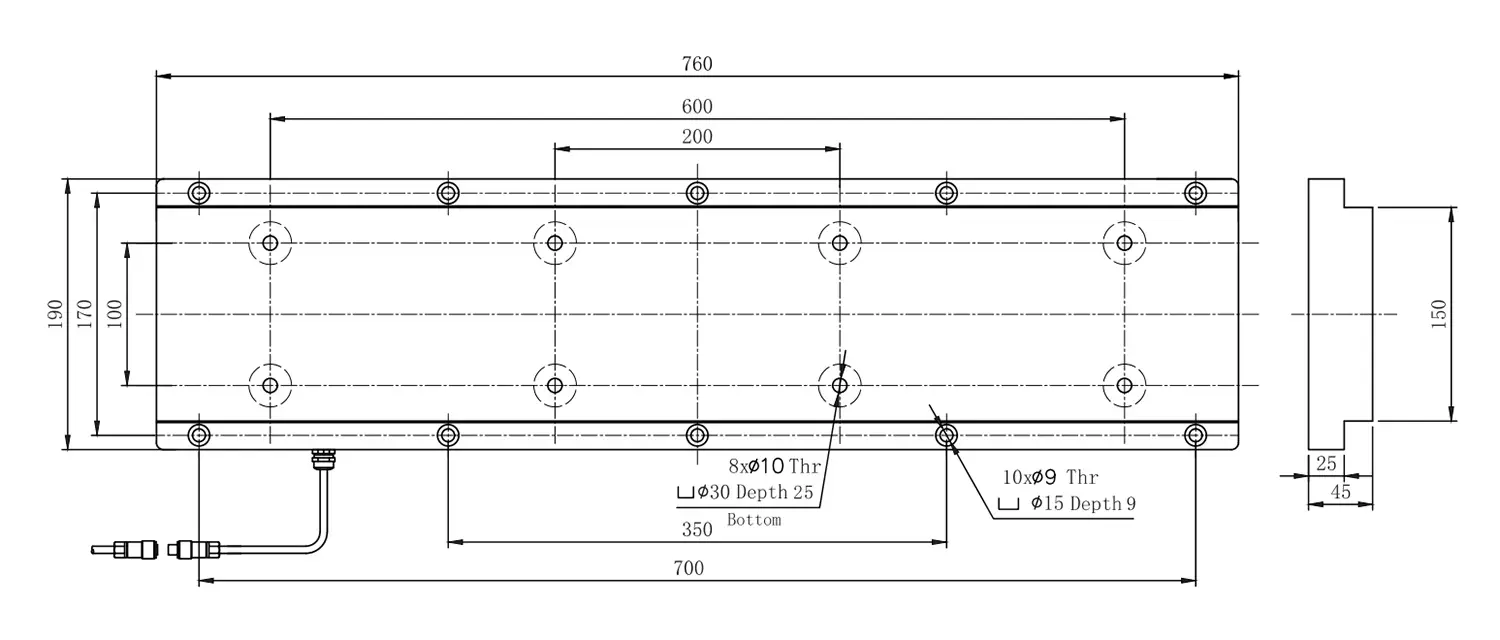

Dimension & Capacity
