Name: Compression Load Cell X-B-D152-H12
Brand: XJCSENSOR
Price: 60.0 USD
Availability: InStock
Rating: 5 (19 reviews)

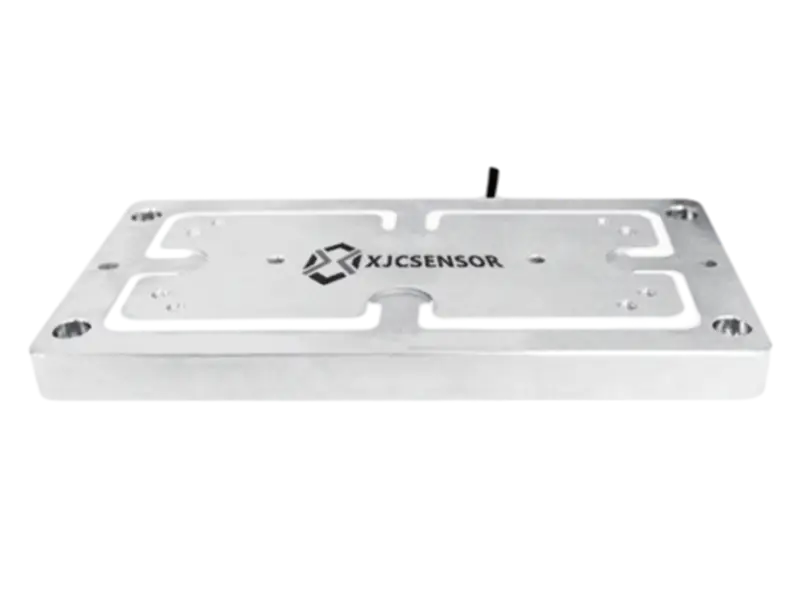

Compression Load Cell X-B-D152-H12

Feature

Adopts high-precision resistance strain principle
Supports force measurement in the range of 0-1000kg
Parallel Beam structural design, robust pressure-bearing structure with simplified installation
High precision and high stability
Alloy steel/ Aluminum alloy
Compact structure, thinner installed height, beautiful appearance
High response frequency

Technical Parameter

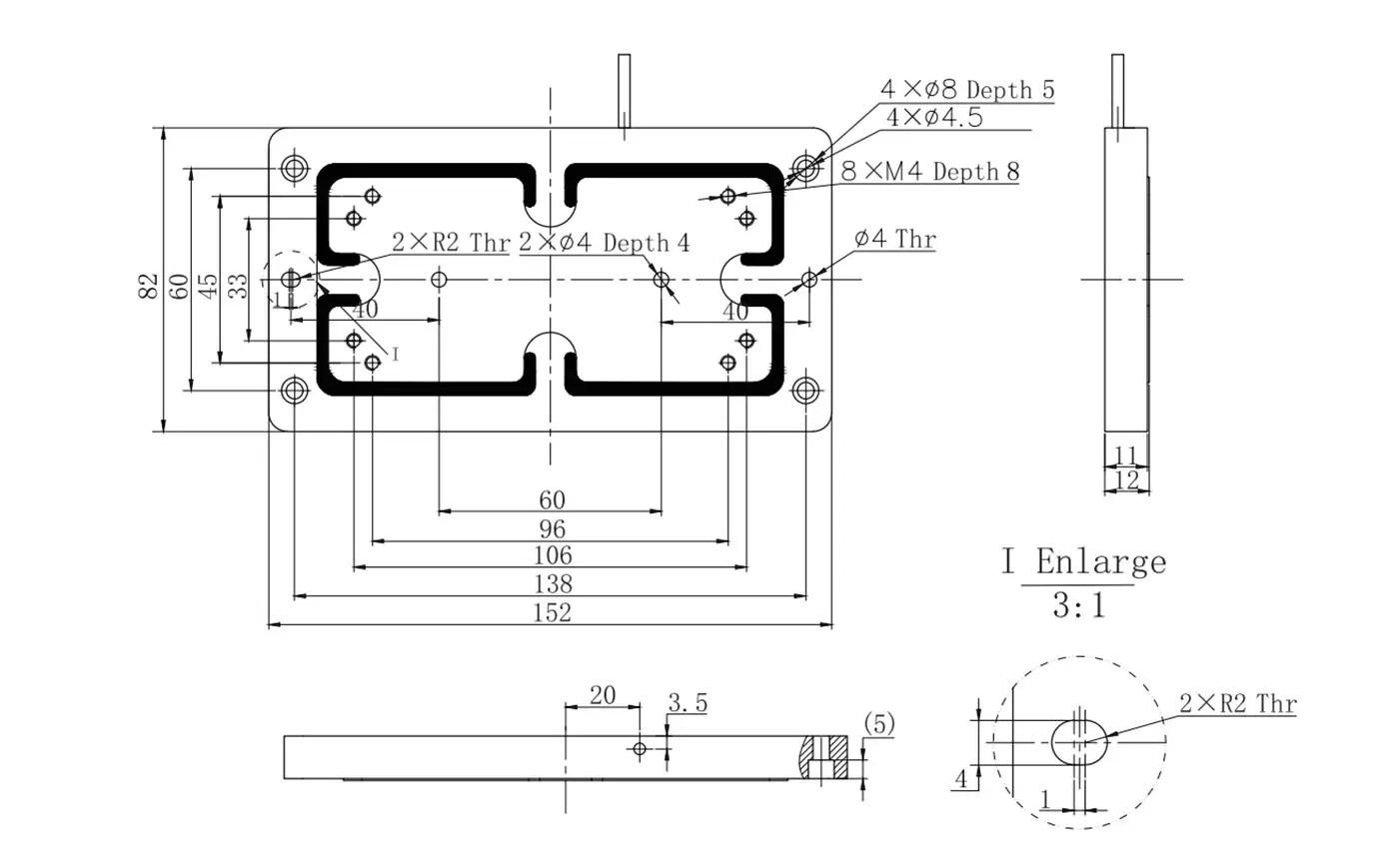

Dimension & Capacity

File Download

Related Blogs

Technical Parameter

Capacity(Optional)	20kg,50kg,100kg,200kg,1000kg	Material	Alloy Steel, Aluminum Alloy
Nonlinearity	≤0.5% F.S.	Rated output	1.0~1.5mV/V
Recommended excitation	5-10VDC	Maximum excitation	10V DC
Protection class	IP64	Compensated temp range	-10~40℃
Hysteresis	≤0.5% F.S.	Operating temp range	-20~80℃
Repeatability	≤0.5% F.S.	Insulation	≥5000MΩ/100VDC
Input impedance	380±30Ω(750±50Ω)	Output impedance	350±10Ω(700±10Ω)
Creep (30min)	≤0.5% F.S.	Temp effect on output	≤0.2%F.S./10℃
Zero balance	±0.05mV/V	Temp effect on zero	≤0.2%F.S./10℃
Safe load limit	150%F.S.	Ultimate load limit	200%F.S.
Cable size	Ø3x3m	Fatigue life	Full scale more than 1 million times
Cable connection	Ex+:Red; Ex-: Black; Sig+:Green; Sig-:White
