Compression Load Cell X-B-D150
Feature
- Adopts high-precision resistance strain principle
- Supports force measurement in the range of 0-20ton.
- Parallel Beam structural design, robust pressure-bearing structure
- with simplified installation.
- High precision and high stability
- High response frequency
contact us
Technical Parameter
Dimension & Capacity
File Download
Related Blogs
Technical Parameter
| Capacity(Optional) | 5t,10t,15t,20t | Material | Alloy Steel |
| Nonlinearity | ≤0.5% F.S. | Rated output | 1.0-1.5mV/V |
| Recommended excitation | 5-10VDC | Maximum excitation | 10V DC |
| Protection class | IP64 | Compensated temp range | -10~40℃ |
| Hysteresis | ≤0.5% F.S. | Operating temp range | -20~80℃ |
| Repeatability | ≤0.2% F.S. | Insulation | ≥5000MΩ/100VDC |
| Creep (30min) | ≤0.1%F.S. | Temp effect on output | 0.2%F.S./10℃ |
| Zero balance | ± 2% F.S. | Temp effect on zero | 0.2%F.S./10℃ |
| Safe load limit | 120%F.S. | Ultimate load limit | 150%F.S. |
| Cable size | Ø4x4m | Fatigue life | Full scale more than 1 million times |
| Cable connection | Ex+:Red; Ex-: Black; Sig+: Green; Sig-:White | ||

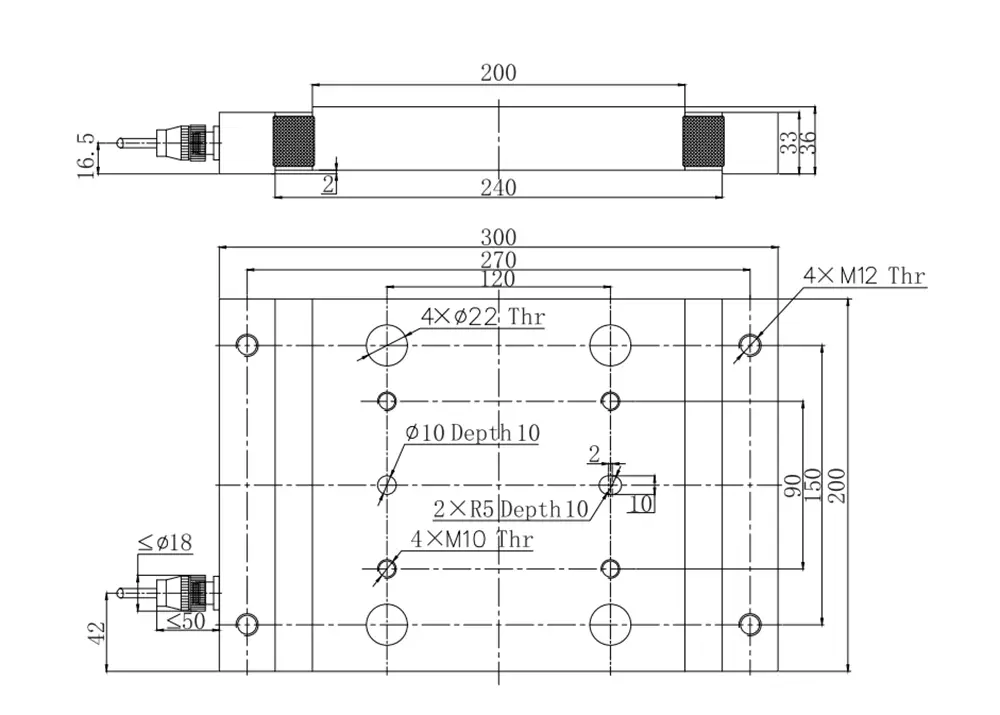

Dimension & Capacity
