Pressure Sensor/Pressure Transmitter X-100CY-S Compact Differential Pressure
Feature
- Range: 0~5kpa~60bar.
- High performance diffused silicon core.
- Compact design.
- Multiple output signals optional.
- Multiple electrical connections, superior long term stability.
contact us
Technical Parameter
Dimension & Capacity
Application
Ordering Guide
File Download
Related Blogs
Technical Parameter
| Product Performance | ||
| Long-Term Stability | ±0.2%FS/year(Not cumulative) | |
| Accuracy | ±0.25%FS,±0.5%FS(Optional) | |
| P201 Temp.Effect | 1.5FS/100℃ | |
| Comp.Temp. | -20℃~80℃ | |
| Working Temp. | ||
| Non-Display | -40℃~85℃ | |
| LCD | -20℃~70℃ | |
| Measuring Medium Temp. | ||
| Filled Silicone Oil | -40℃~125℃ | |
| -40℃~150C(Adding connectors) | ||
| Zero Error | ±1%FS | |
| Span Error | ±1%FS | |
| Response Time | ≤30ms | |
| Fatigue Life | More than 100 million designs | |
| Physical Characteristics | ||
| Pressure Interface | See Ordering Guide | |
| P201 Contact Parts | SS316L | |
| Electrical Interface | See Ordering Guide | |
| Shell Material | SS304 | |
| Shell Protection | IP65/IP67 | |
| Shock | EC 68-2-27 procedure I | |
| Vibration | 10g,25-2000Hz | |
| Weight | About 800g | |
| Environmental Data | ||
| Certification | CE,RoHS | |
| Voltage Output | |
| Output (3-wire) | Min OV to max 10V |
| Power Supply | Over full range output 4V, max 30Vdc |
| Current Output | |
| Output(2-wire) | 4-20mA 2-wire |
| Power Supply | 10-30Vdc |
| Range | Proof Pressure(xFS) | Burst Pressure(xFS) |
| Kpa/bar | X-100CY-S | X-100CY-S |
| 5~1000bar | 2.0xFS | 5.0xFS |
| 200kpa~100Mpa | 2.0xFS | 3.0xFS |
| 200bar~700bar | 1.5xFS | 2.0xFS |
| wire | wire | wire | Modbus-RTU | |||
| Type | Terminal | Current signal | Voltage signal | Voltage signal | RS485 | Cable Colour |
| M12*1 | 1 | +ve Supply | +ve Supply | +ve Supply | +ve Supply | Brown |
| 2 | OV Com | -ve Output | -ve Supply | white | ||
| 3 | +ve Ouutput | +V ve O utput | +ve Output | A+ | Blue | |
| 4 | -ve Supply | B- | Black | |||
| DIN | 1 | +ve Supply | +ve Supply | +ve Supply | +ve Supply | Red |
| 2 | +ve Output | +ve Output | -ve Supply | -ve Supply | Black | |
| 3 | OV Com | +ve Output | A+ | Blue | ||
| GND | -ve Output | B- | White |

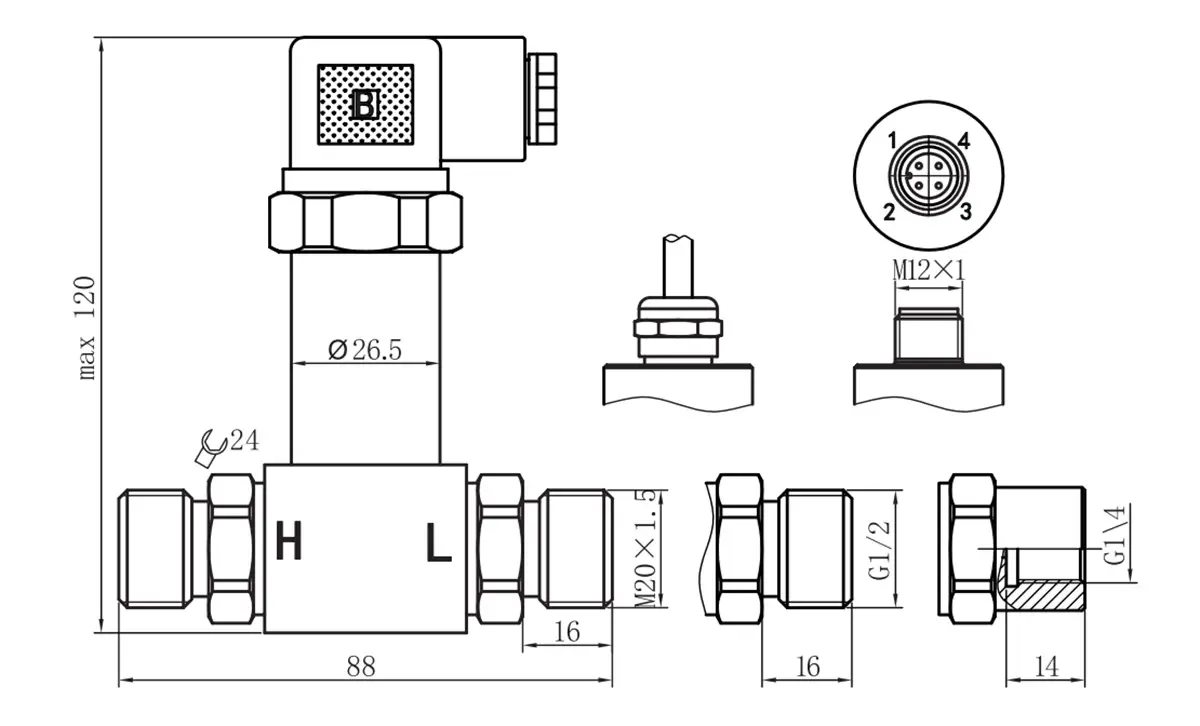

Dimension & Capacity
Application
It is used for differential pressure measurement of various gases and liquids in water pumps, compressors, water supply pipelines and other occasions.
Ordering Guide
Model: X-100CY-S-①②③④⑤
| ① | ② | ③ | ④ | ⑤ | |
| Attention | Range | Process connection | Output | Electrical connection | Accuracy |
1. 4PIN Standardized 2m Cable Lin 2. Direct lead with 1 m cable 3. 4AX/LCD can only be selected with2D 4. With"*",please contact thetechnician | Range K=kPa B=barM=MPa | 2G(F)=G1/4 (Internal thread) 2G=G1/4 4G=G1/2 2N=1/4NPT 4N=1/2NPT 14M=M14x1.5 20M=M20x1.5XX*=Other * | 4A=4~20mA 4AX=4-20mA+LCD With Display 10V=0~10V | 2D=DIN43650 Hirschmann 4P=M12 4pin xE= Direct lead x meter | =±0.5 %FS 2=±0.25 %FS |
