3-axis Force Sensor X-3A-D30-C
Feature
- Quick response.
- High precision with the principle of resistance strain type.
- Compensated strain gauge.
- Decoupled structure, tiny long-term crosstalk error.
- Small size, low height, suitable for small-volume applications.
contact us
Technical Parameter
Dimension & Capacity
File Download
Related Blogs
Technical Parameter
| Nonlinearity | ≤0.5% F. S. | Repeatability | ≤0.1% F. S. |
| Zero balance | ±5%F. S. | Operating temp range | -20~80℃ |
| Recommended excitation | 5-10VDC | Insulation | ≥2000MΩ/50VDC |
| Protection class | IP63 | Safe load limit | 150%F. S. |
| Long-term crosstalk error | ≤3%F. S. | Cable size | Ø2.4x3m |

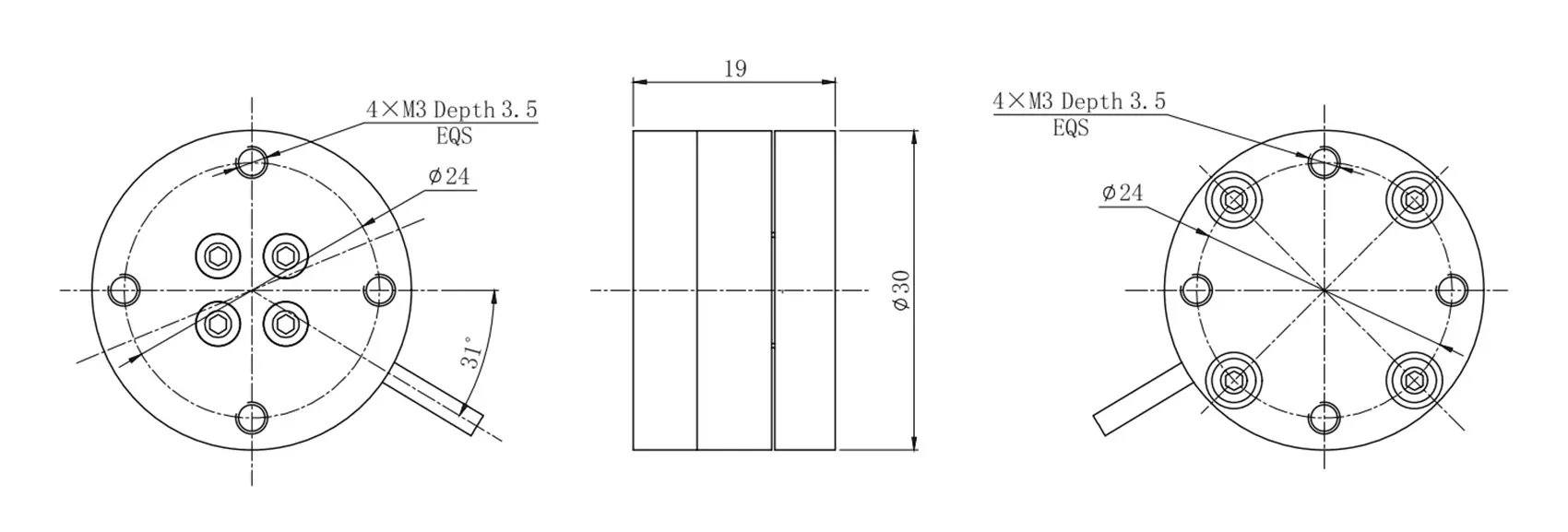

Dimension & Capacity
| Capacity | Fx | Fy | Fz | Material |
| 50N | 50N | 50N | Aluminum Alloy | |
| 100N | 100N | 100N | ||
| Rated output | 0.3-1.0mV/V | |||
| Cable color code | ||
| Power | Exc+:Red | Exc-:Black |
| X Signal | Sig+:Green | Sig-:White |
| Y Signal | Sig+:Blue | Sig-:Yellow |
| Z Signal | Sig+:Brown | Sig-:Gray |
