2-axis Force Sensor X-2A-D54-H54
Feature
- High precision with the principle of resistance strain type.
- Two-direction force structure.
- Good temperature characteristics with self-compensated strain gauge.
- Tiny crosstalk error, strong long-term stability.
- Overload protection.
- Stable structure and high rigidity.
contact us
Technical Parameter
Dimension & Capacity
File Download
Related Blogs
Technical Parameter
| Nonlinearity | ≤0.2% F.S. | Repeatability | ≤0.05% F.S. |
| Zero balance | ±5% F.S. | Operating temp range | -20~80℃ |
| Compensated temp range | -10~40℃ | Insulation | ≥2000MΩ/50VDC |
| Recommended excitation | 5-10VDC | Safe load limit | 300%F.S. |
| Temp effect on output | ≤0.5%F.S./10℃ | Temp effect on zero | ≤0.5% F.S./10°℃ |
| Long-term crosstalk error | ≤3%F.S. | Protection class | IP54 |
| Cable size | Ø3x3m(2 Cables) | ||

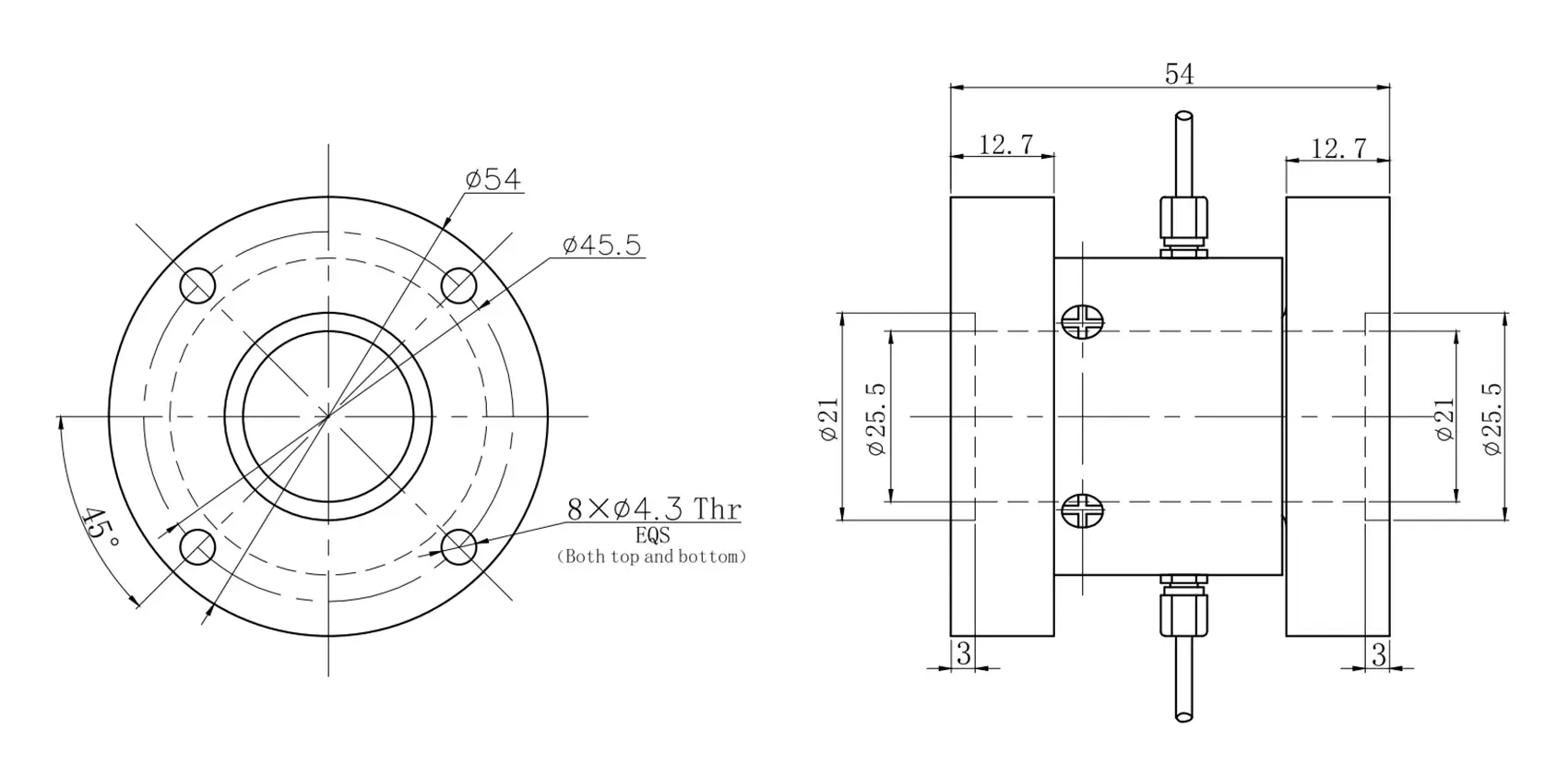

Dimension & Capacity
| Capacity | Fz | 300kg 500kg | Material |
| Mz | 20N.m 30N.m | Aluminum Alloy Stainless Steel | |
| Rated output | 0.5-1.5mV/V | ||
| Cable color code | ||
| Fz | Exc+:Red | Exc-:Black |
| Sig+:Green | Sig-:White | |
| Mz | Exc+:Red | Exc-:Black |
| Sig+:Green | Sig-:White | |
