XJCSENSOR: Advanced 6-Axis Force & Torque Sensing Solutions

Experience unparalleled precision with XJCSENSOR’s cutting-edge range of 6-axis force sensors and 6-axis force torque sensors. Designed to capture complex interactions in six degrees of freedom, our sensors provide comprehensive force and torque data essential for intricate applications in fields like robotics, aerospace, and automotive testing.

Superior Product Features

High-Fidelity Data

Capture every nuance of force and torque with our high-resolution sensors that deliver accurate and repeatable measurements.

Durable Construction

Built to last, our sensors are encased in robust materials capable of withstanding challenging industrial environments.

Seamless Integration

Our sensors are designed for easy integration into your existing systems, ensuring minimal downtime and maximum efficiency.

Tailored Solutions

With options for customization, we can fine-tune our sensors to the specific needs of your application.

Product Line Overview

Delve into our extensive list of 6 Axis Force Sensors, each one embodying XJCSENSOR’s commitment to quality and performance. Whether your requirement is for compact size, high capacity, or anything in between, our product lineup has a sensor to meet your needs.

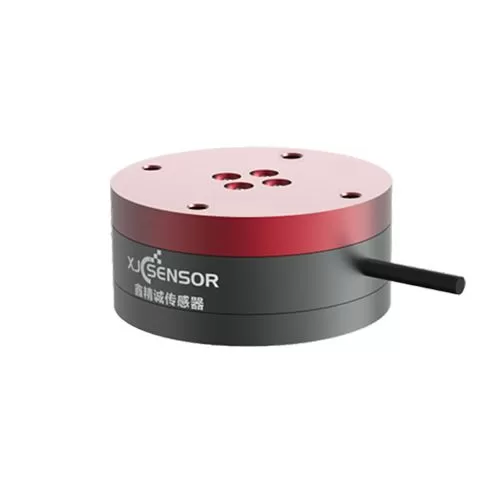

6 Axis Force Sensors

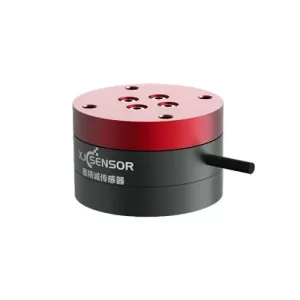

6 Aixs force sensor

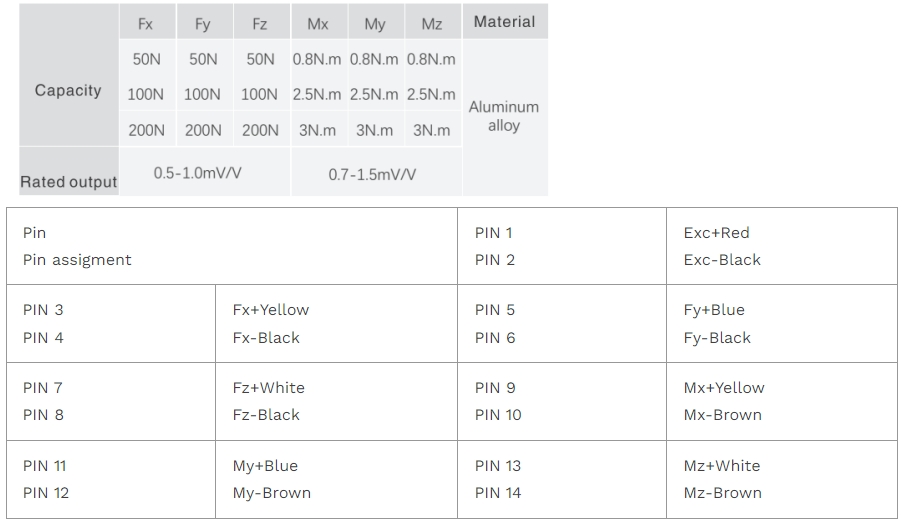

Model :X-6A-D30-C

Technical Parameter:

[object Object]
6 Aixs force sensor

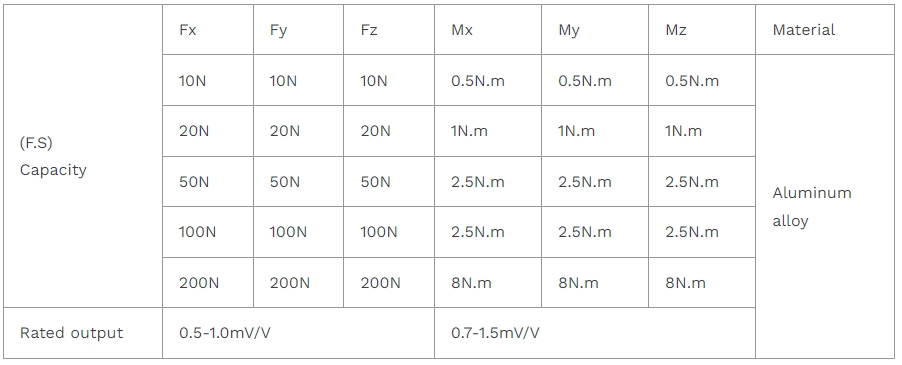

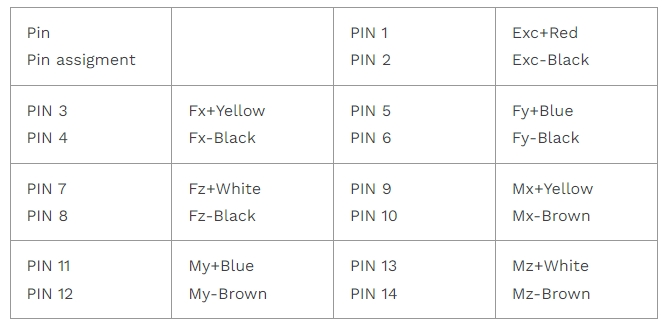

Model :X-6A-D40-H18-A

Technical Parameter:

[object Object]
[object Object]

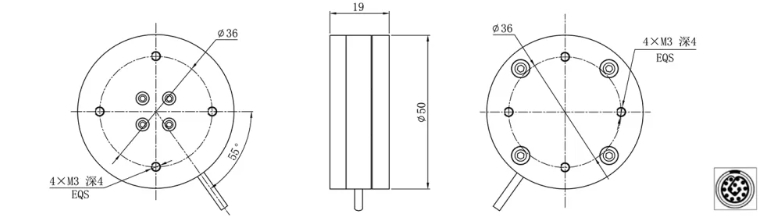

6 Aixs force sensor x 6a d50 h19

Model :X-6A-D50-H19

Technical Parameter:

[object Object]
[object Object]

6-Axis Force Torque Sensors

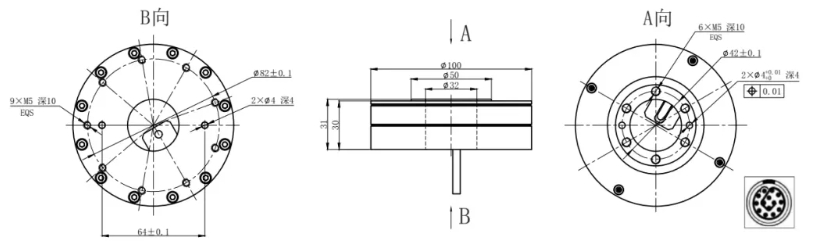

6-Axis Force Torque Sensors x 6a d100 h31

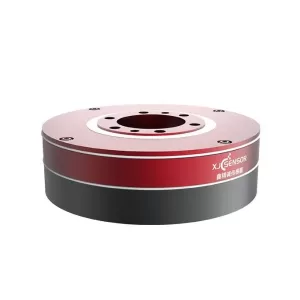

Model :X-6A-D100-H31

Technical Parameter:

  • Non-linearity: ≤0.5%F.S.
  • Repeatability: ≤0.05%F.S.
  • Zero balance: ±2%F.S.
  • Operating temp range: -20~80°C
  • Compensated temp range: -10~40°C
  • Insulation: ≥2000MΩ/50VDC
  • Recommended excitation voltage: 5-10VDC
  • Safe load limit: 200%F.S.
  • Temp effect on output: ≤0.2%F.S./10°C
  • Temp effect on zero: ≤0.2%F.S./10°C
  • Long-term crosstalk error: ≤2%F.S.
  • Protection class: IP66
  • Cable size: φ4.5*3m + Lemo14 PIN plug (Option)
[object Object]

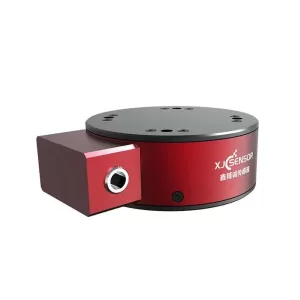

6-Axis Force Torque Sensors x 6a d106 h42

Model :X-6A-D106-H42

Technical Parameter:

  • Non-linearity: ≤0.5%F.S.
  • Repeatability: ≤0.05%F.S.
  • Zero balance: ±5%F.S.
  • Operating temp range: -20~80°C
  • Compensated temp range: -10~40°C
  • Insulation: ≥2000MΩ/50VDC
  • Recommended excitation voltage: 5-10VDC
  • Safe load limit: 200%F.S.
  • Temp effect on output: ≤0.1%F.S./10°C
  • Temp effect on zero: ≤0.1%F.S./10°C
  • Long-term crosstalk error: ≤3-5%F.S.
  • Protection class: IP65
  • Cable size: Lemo14 PIN plug
[object Object]
x 6a d118 h31

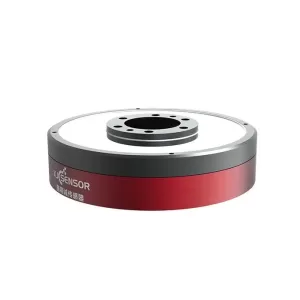

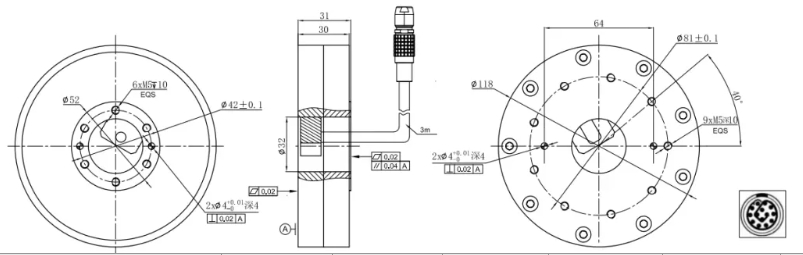

Model :X-6A-D118-H31

Technical Parameter:

  • Non-linearity: ≤±0.5%F.S.
  • Repeatability: ≤±0.05%F.S.
  • Zero balance: 5%F.S.
  • Operating temp range: -20~80°C
  • Compensated temp range: -10~40°C
  • Insulation: ≥2000MΩ/50VDC
  • Recommended excitation voltage: 5-10VDC
  • Safe load limit: 300%F.S.
  • Temp effect on output: ≤0.1%F.S./10°C
  • Temp effect on zero: ≤0.1%F.S./10°C
  • Long-term crosstalk error: ≤2%F.S.
  • Protection class: IP67
  • Cable size: φ4.5*3m + Lemo14 PIN plug (Option)
[object Object]

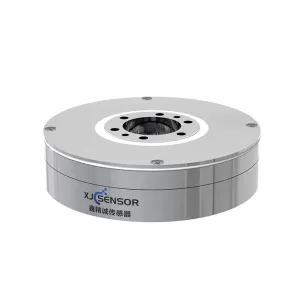

x 6a d118 h31 b

Model :X-6A-D118-H31-B

Technical Parameter:

  • Non-linearity: ≤0.5%F.S.
  • Repeatability: ≤0.05%F.S.
  • Zero balance: ±5%F.S.
  • Operating temp range: -20~80°C
  • Compensated temp range: -10~40°C
  • Insulation: ≥2000MΩ/50VDC
  • Recommended excitation voltage: 5-10VDC
  • Safe load limit: 300%F.S.
  • Temp effect on output: ≤0.1%F.S./10°C
  • Temp effect on zero: ≤0.1%F.S./10°C
  • Long-term crosstalk error: ≤2%F.S.
  • Protection class: IP67
  • Cable size: Lemo14 PIN plug
[object Object]

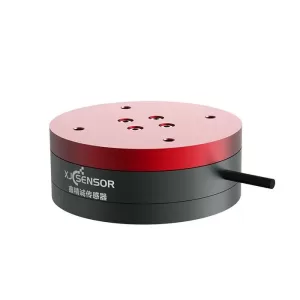

x 6a d30 b h19

Model :X-6A-D30-B-H19

Technical Parameter:

  • Non-linearity: ≤±0.5%F.S.
  • Repeatability: ≤±0.05%F.S.
  • Zero balance: ±5%F.S.
  • Operating temp range: -20~80°C
  • Compensated temp range: -10~80°C
  • Insulation: ≥2000MΩ/50VDC
  • Recommended excitation voltage: 5VDC
  • Safe load limit: 200%F.S.
  • Temp effect on output: ≤0.2%F.S./10°C
  • Temp effect on zero: ≤0.2%F.S./10°C
  • Long-term crosstalk error: ≤3-5%F.S.
  • Protection class: IP65
  • Cable size: φ2.4*3m + Lemo14 PIN plug (Option)
x 6a d30 b h19

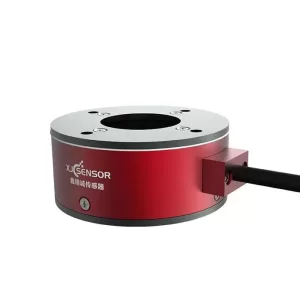

x 6a d55 h24

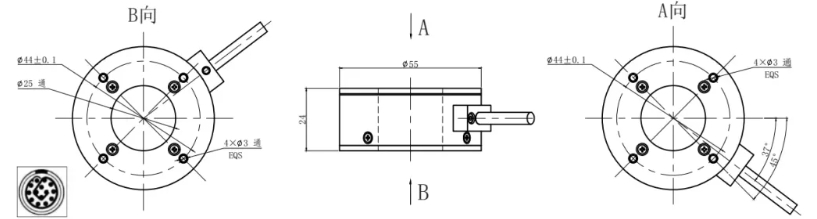

Model :X-6A-D55-H24

Technical Parameter:

  • Non-linearity: ≤±0.5%F.S.
  • Repeatability: ≤±0.05%F.S.
  • Zero balance: ±5%F.S.
  • Operating temp range: -20~80°C
  • Compensated temp range: -10~40°C
  • Insulation: ≥2000MΩ/50VDC
  • Recommended excitation voltage: 5VDC
  • Safe load limit: 300%F.S.
  • Temp effect on output: ≤0.2%F.S./10°C
  • Temp effect on zero: ≤0.2%F.S./10°C
  • Long-term crosstalk error: ≤3-5%F.S.
  • Protection class: IP65
  • Cable size: φ2.4*3m + Lemo14 PIN plug (Option)
x 6a d55 h24

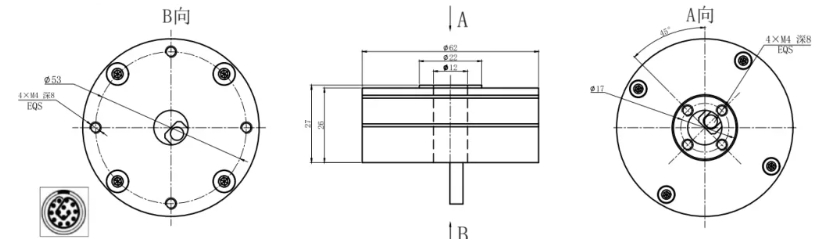

x 6a d62 h27 a

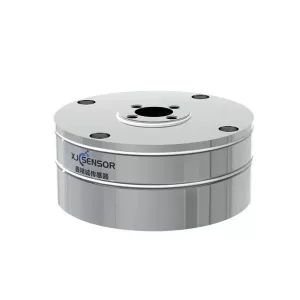

Model :X-6A-D62-H27-A

Technical Parameter:

  • Non-linearity: ≤0.5%F.S.
  • Repeatability: ≤±0.05%F.S.
  • Zero balance: ±5%F.S.
  • Operating temp range: -20~80°C
  • Compensated temp range: -10~40°C
  • Insulation: ≥2000MΩ/50VDC
  • Recommended excitation voltage: 5VDC
  • Safe load limit: 300%F.S.
  • Temp effect on output: ≤0.2%F.S./10°C
  • Temp effect on zero: ≤0.2%F.S./10°C
  • Long-term crosstalk error: ≤3%F.S.
  • Protection class: IP66
  • Cable size: φ4.5*3m + Lemo14 PIN plug (Option)
x 6a d62 h27 a

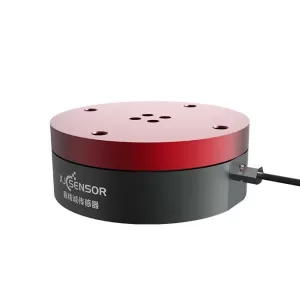

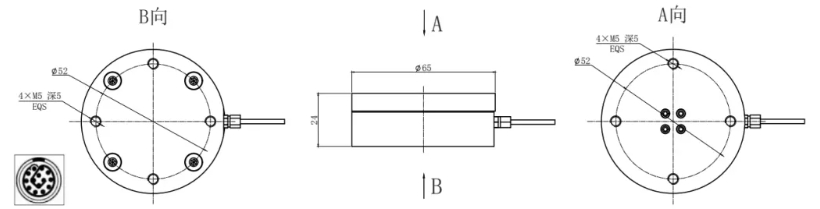

x 6a d65 h24

Model :X-6A-D65-H24

Technical Parameter:

  • Non-linearity: ≤0.5%F.S.
  • Repeatability: ≤0.05%F.S.
  • Zero balance: ±2%F.S.
  • Operating temp range: -20~80°C
  • Compensated temp range: -10~40°C
  • Insulation: ≥2000MΩ/50VDC
  • Recommended excitation voltage: 5-10VDC
  • Safe load limit: 200%F.S.
  • Temp effect on output: ≤0.2%F.S./10°C
  • Temp effect on zero: ≤0.2%F.S./10°C
  • Long-term crosstalk error: ≤3%F.S.
  • Protection class: IP65
  • Cable size: φ2.4*3m + Lemo14 PIN plug (Option)
x 6a d65 h24

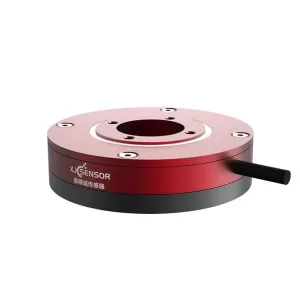

x 6a d75 h19 a

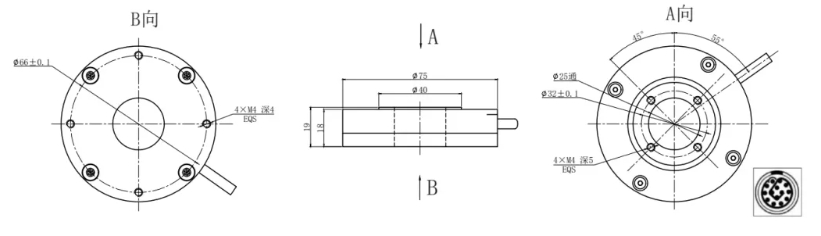

Model :X-6A-D75-H19-A

Technical Parameter:

  • Non-linearity: ≤0.5%F.S.
  • Repeatability: ≤±0.05%F.S.
  • Zero balance: ±5%F.S.
  • Operating temp range: -20~80°C
  • Compensated temp range: -10~40°C
  • Insulation: ≥2000MΩ/50VDC
  • Recommended excitation voltage: 5-10VDC
  • Safe load limit: 300%F.S.
  • Temp effect on output: ≤0.1%F.S./10°C
  • Temp effect on zero: ≤0.1%F.S./10°C
  • Long-term crosstalk error: ≤3%F.S.
  • Protection class: IP66
  • Cable size: φ4.5*3m + Lemo14 PIN plug (Option)
x 6a d75 h19 a

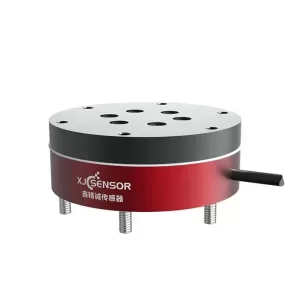

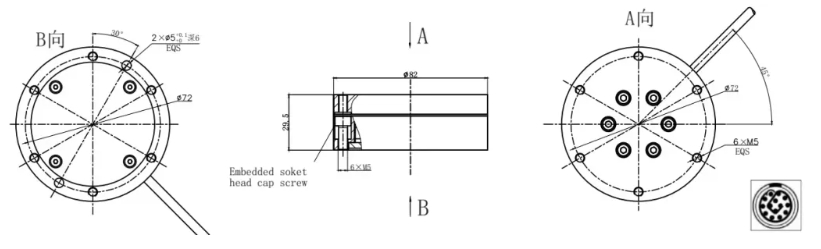

x 6a d82 h29.5 a

Model :X-6A-D82-H29.5-A

Technical Parameter:

  • Non-linearity: ≤0.5%F.S.
  • Repeatability: ≤0.05%F.S.
  • Zero balance: ±2%F.S.
  • Operating temp range: -20~80°C
  • Compensated temp range: -10~40°C
  • Insulation: ≥2000MΩ/50VDC
  • Recommended excitation voltage: 5-10VDC
  • Safe load limit: 150%F.S.
  • Temp effect on output: ≤0.1%F.S./10°C
  • Temp effect on zero: ≤0.1%F.S./10°C
  • Long-term crosstalk error: ≤3%F.S.
  • Protection class: IP65
  • Cable size: φ2.4*3m + Lemo14 PIN plug (Option)
x 6a d82 h29.5 a

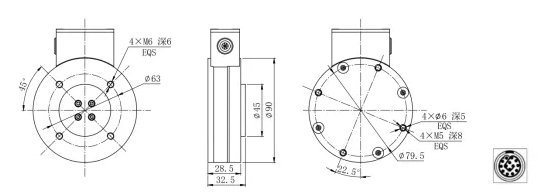

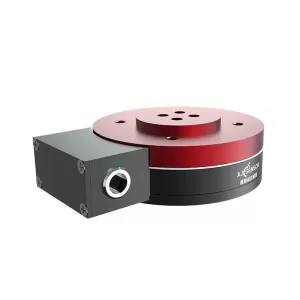

x 6a d90 h32.5 a

Model :X-6A-D90-H32.5-A

Technical Parameter:

  • Non-linearity: ≤0.5%F.S.
  • Repeatability: ≤0.1%F.S.
  • Zero balance: 2%F.S.
  • Operating temp range: -20~80°C
  • Compensated temp range: -10~40°C
  • Insulation: ≥2000MΩ/50VDC
  • Recommended excitation voltage: 5-10VDC
  • Safe load limit: 300%F.S.
  • Temp effect on output: ≤0.1%F.S./10°C
  • Temp effect on zero: ≤0.1%F.S./10°C
  • Long-term crosstalk error: ≤2%F.S.
  • Protection class: IP66
  • Cable size: Lemo14 PIN plug
x 6a d90 h32.5 a

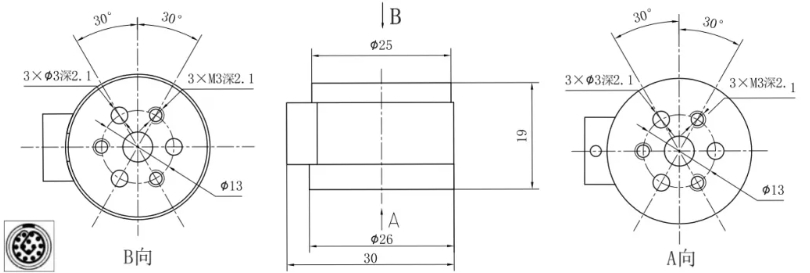

x 6am d26 h19

Model :X-6AM-D26-H19

Technical Parameter:

  • Non-linearity: ≤0.5%F.S.
  • Repeatability: ≤0.1%F.S.
  • Zero balance: ±5%F.S.
  • Operating temp range: -20~80°C
  • Compensated temp range: -10~40°C
  • Insulation: ≥2000MΩ/50VDC
  • Recommended excitation voltage: 5VDC
  • Safe load limit: 200%F.S.
  • Temp effect on output: ≤0.5%F.S./10°C
  • Temp effect on zero: ≤0.2%F.S./10°C
  • Long-term crosstalk error: ≤3%F.S.
  • Protection class: IP64
  • Cable size: φ2.4*3m + Lemo 14 PIN plug (Option)
x 6am d26 h19

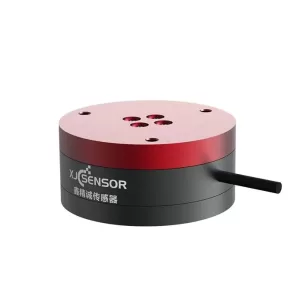

x fa d40 h18 a

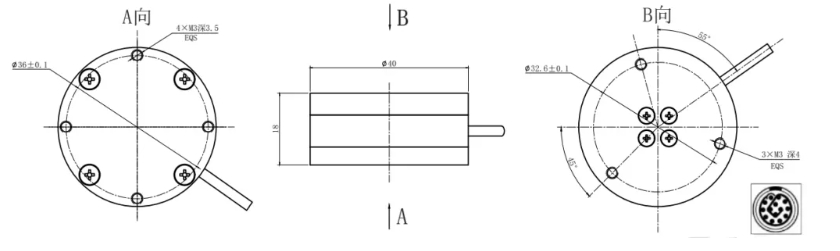

Model :X-FA-D40-H18-A

Technical Parameter:

  • Non-linearity: ≤0.5%F.S.
  • Repeatability: ≤±0.05%F.S.
  • Zero balance: ±5%F.S.
  • Operating temp range: -20~80°C
  • Compensated temp range: -10~40°C
  • Insulation: ≥2000MΩ/50VDC
  • Recommended excitation voltage: 5VDC
  • Safe load limit: 200%F.S.
  • Temp effect on output: ≤0.2%F.S./10°C
  • Temp effect on zero: ≤0.2%F.S./10°C
  • Long-term crosstalk error: ≤3%F.S.
  • Protection class: IP65
  • Cable size: φ2.4*3m + Lemo14 PIN plug (Option)
x fa d40 h18 a

Services Tailored to Enhance Your Operations

XJCSENSOR offers extensive services to ensure our clients receive products that align perfectly with their business needs:

Wholesale Options

Benefit from our competitive pricing on bulk orders without compromising on quality.

Customization (OEM)

Partner with us to create bespoke solutions tailored specifically to your project's requirements.

Design & Manufacturing (ODM)

From initial concept to final production, we offer full-scale development services to bring your vision to life.

Unwavering Commitment to Quality Assurance

Quality is the cornerstone of everything we do at XJCSENSOR:

Stringent Testing

We subject our sensors to rigorous testing processes, so they perform flawlessly under all conditions.

Certified Materials

Our use of industry-certified materials ensures our sensors' longevity and reliability.

Skilled Workforce

Our team of experts oversees every stage of production, employing their extensive knowledge to maintain our high standards.

Ongoing Innovation

We continuously evolve our products based on the latest technological advancements and customer feedback.

Partner with XJCSENSOR for Unmatched Precision

Discover the benefits of integrating XJCSENSOR’s 6-axis force and torque sensors into your systems. Contact us today for professional insights, a comprehensive quote, or to discuss customizing options tailored to your specific needs. Trust XJCSENSOR for precision sensing solutions that drive innovation and efficiency in your industry.
