In the world of precision weighing, choosing the right load cell is crucial. Whether you’re designing an industrial-scale weighing system or optimizing automation equipment, understanding the differences between cellular load and shear beam load cells can significantly impact accuracy and efficiency.
As a leading manufacturer of advanced sensor technologies, XJCSENSOR delivers both cellular and shear beam solutions engineered for performance, reliability, and versatility. But which one is right for your application? Let’s break it down.
Understanding Load Cells: A Quick Overview
Load cells are transducers that convert force or weight into an electrical signal. They’re foundational in countless industries—from manufacturing and logistics to medical devices and robotics.
Two of the most commonly used types are cellular load cells and shear beam load cells.
What Is a Cellular Load Cell?

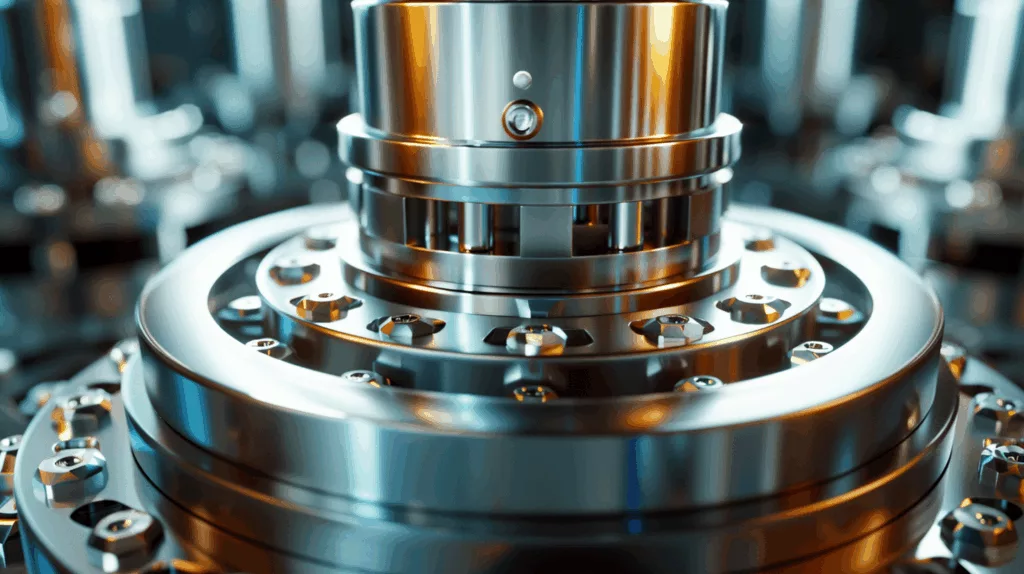

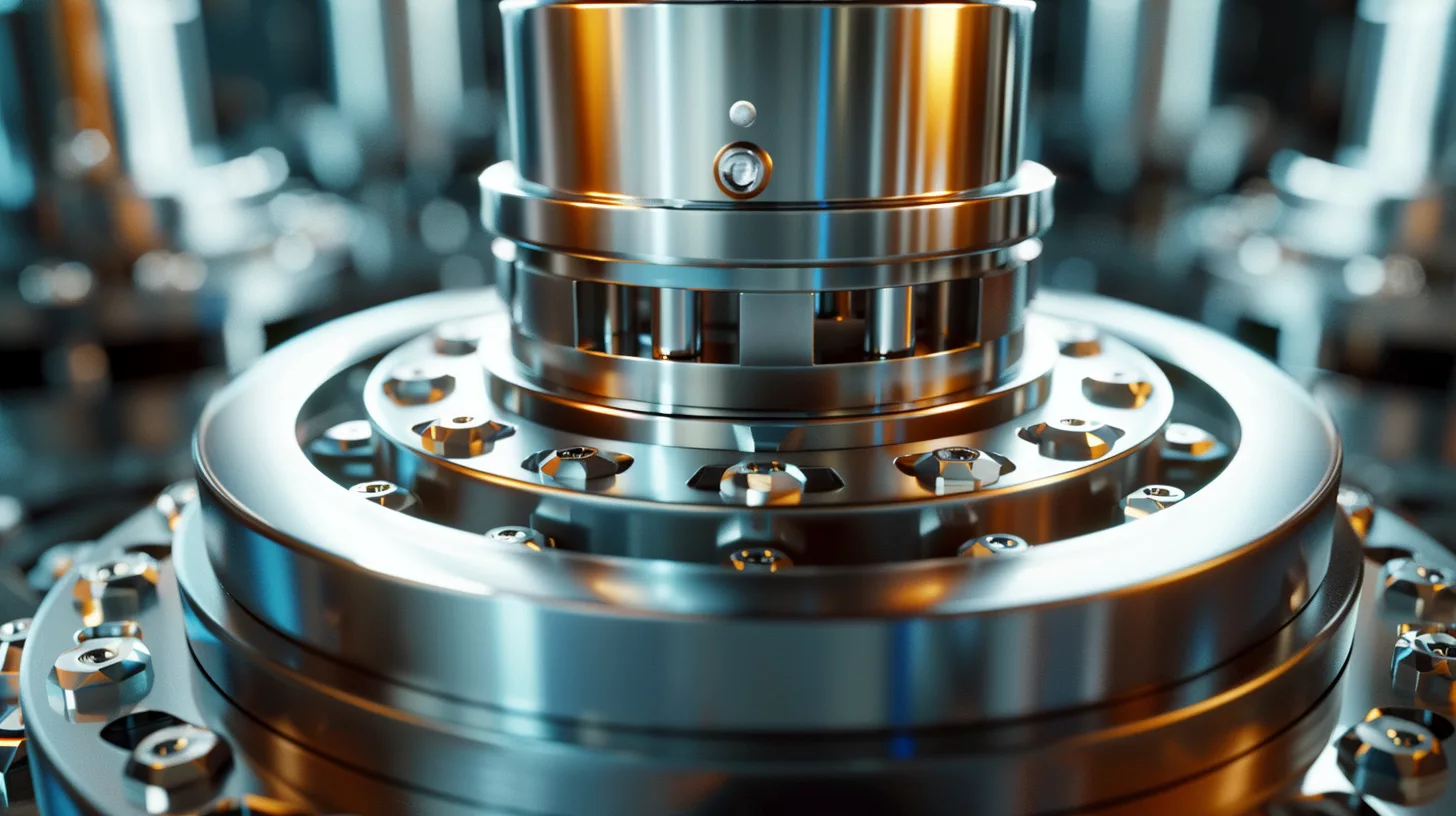

Cellular load cells, also called canister load cells, are designed in a cylindrical shape. They’re often used in high-capacity weighing systems like truck scales or silo monitoring systems.
Key Features of Cellular Load Cells
- High load capacity: Perfect for heavy-duty applications
- Compact and rugged design: Ideal for harsh environments
- Axial force measurement: Ensures accurate load transfer
- Hermetically sealed: Resistant to dust, moisture, and corrosion
Typical Applications
- Truck scales
- Hopper and tank weighing systems
- Structural load monitoring
- Industrial press machines
What Is a Shear Beam Load Cell?
A shear beam load cell is typically rectangular and measures force based on the shear strain on the body of the cell. It’s ideal for medium-range weighing tasks and is widely used in floor scales and small platforms.
Key Features of Shear Beam Load Cells
- High accuracy and repeatability
- Low-profile design: Fits compact systems easily
- Cost-effective for mid-range capacities
- Easy to install and align
Typical Applications
- Platform and floor scales
- Conveyor belt systems
- Hopper weighing
- Process weighing systems
Cellular Load vs. Shear Beam: Side-by-Side Comparison
| Feature | Cellular Load Cell | Shear Beam Load Cell |
| Load Capacity | High (10t and above) | Medium (up to 5t typically) |
| Design Form | Cylindrical / Canister | Rectangular / Beam |
| Installation | Vertical mounting, harder to align | Side mounting, easier alignment |
| Accuracy | Excellent at high loads | Excellent at medium loads |
| Durability | Very high in harsh conditions | High, but needs protection |
| Common Applications | Truck scales, tanks, silos | Platforms, hoppers, conveyors |
Which Load Cell Is Right for You?
Choosing between a cellular load and shear beam load cell depends on your application’s specific needs:
Choose Cellular Load Cell If:
- You need to weigh large loads (e.g., trucks, silos)
- Your system is exposed to harsh conditions
- Vertical alignment is achievable
Choose Shear Beam Load Cell If:
- You require compact installations
- Your capacity needs are moderate
- You want an easy-to-install, cost-effective solution
For multi-point systems, like floor scales or conveyor belts, shear beam cells are ideal. For single-point high-capacity weighing, cellular load cells are the superior choice.
FAQ
Q1: Are cellular load cells more expensive than shear beam types?
A: Yes, due to their construction and higher load capacity, cellular load cells are generally more expensive.
Q2: Can I use shear beam load cells in outdoor environments?
A: Yes, but they must be properly sealed or enclosed to withstand moisture and dust.
Q3: Do cellular load cells require calibration more often?
A: No. With proper installation, they maintain calibration well even under heavy use.
Final Thoughts: Precision Matters
Both cellular load and shear beam load cells serve vital roles in modern weighing systems. Selecting the right one ensures safety, efficiency, and long-term performance.
With XJCSENSOR’s reputation as a leading manufacturer of advanced sensor technologies, you can trust our load cells to deliver uncompromising accuracy and durability—no matter your application.
Contact us today to find the perfect load cell for your system!
